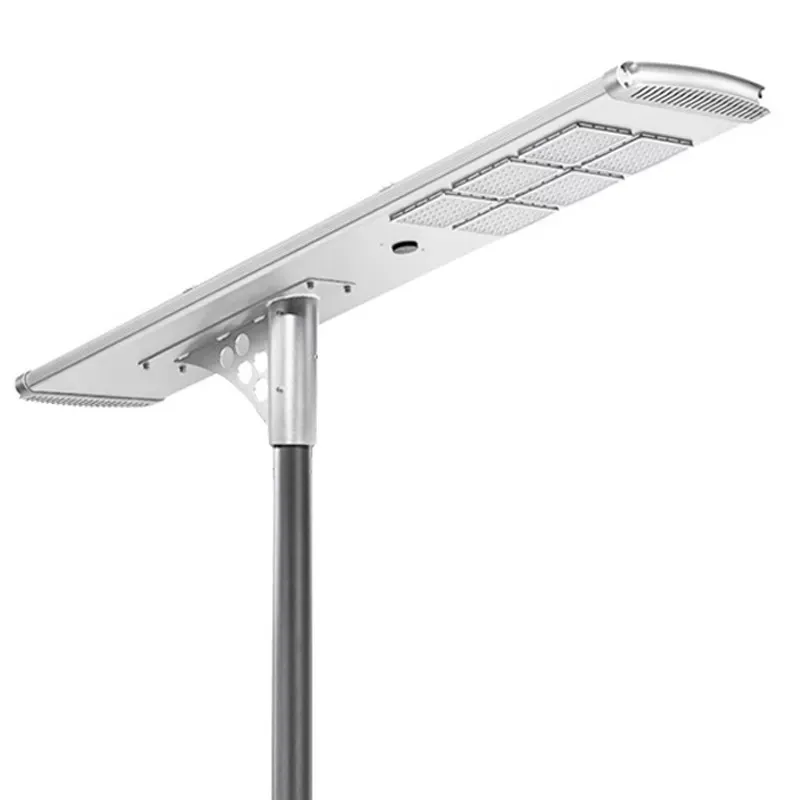

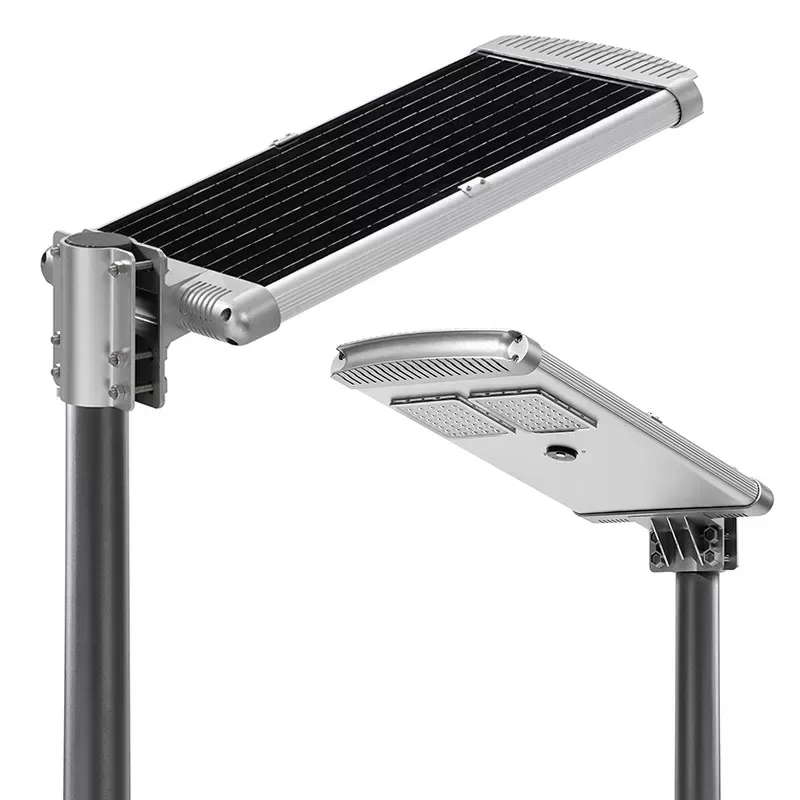

30W - 120W Modular Integrated Waterproof All in One Solar Led Street Light
Features
all in one solar street light
A. The selection of high efficiency monocrystalline silicon solar cells to make the components more efficient photoelectric conversion;
B. The solar panel can be 0° -70° angle adjustment, so it can accept solar radistion to the greatest extent; and accurate scale will keep the consistency of the batch installation;
C. The light pole system uses steel ,resistant to 10 typhoons,solid and reliable;meanwhile,it can adjust the azimuth of the solar panels by 360° ;
D. Take quality gel batteries with excellent energy storage effect.The battery box is single injection pressed from high-quality materials,which is seismic,anti-corrosion,acid and so on.
E. Match with 20W-100W LED street light with high luminous efficiency,result in long life,good color, light and soft,light output and stability.
F. Use intelligent solar controller,which can set light-control and time-control model flexibly,effectively save energy and extend the lighting time;moreover ,it has other performance,such as oervoltage,undervoltage, short circuit ,lightning protection.
Specifications
| Item No. | all in one solar street light | ||||||
| Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Solar Panel | 18V/50W | 18V/65W | 18V/70W | 18V/80W | 18V/100W | 18V/130W | 18V/140W |
| LifePO4 Battery | 12.8V/27AH | 12.8V/28AH | 12.8V/36AH | 12.8V/42AH | 12.8V/57AH | 12.8V/63AH | 12.8V/72AH |
| Mounting Height | 6-7M | 7-8M | 5-7M | 5-8M | 6-9M | 7-10M | 7-12M |
| Lighting Mode | Night Sensor + Microwave Motion Sensor + Remote Control | ||||||
| Color Tempreture | 6000K ~6500K(customized) | ||||||
| Solar Charging Time | 6 hours | ||||||
| Light effect | 170LM/W | ||||||
| Cloudy/Rainy days | 3~7 Cloudy/Rainy days | ||||||
| Material | Aluminum | ||||||
| Waterproof | IP65 | ||||||
| Life Time | 100000hours | ||||||
| Working Tempreture | -25°C to 65°C | ||||||
| Certificate | CE / ROHS / IP65 | ||||||
| Warranty | 3 Years | ||||||
Details
all in one solar led street light
This work present a design, build a wet and dry self cleaning system to the street light solar panel. It is simple, lightweight, slight to maintain, portable, withstand the environment; low-cost, long life, takes its power from the battery of the solar panel, and controlled automatically, by a remote control or a timer. The experimental model is based on a DC motor intelligently controls by a dedicated drive unit that move a cleaning head on the panel upwards and downwards with without using, spraying system. The performance and characteristics of the self cleaning system is experimentally analyzed.
1.Built-in Automatic Robotic cleaning arm wipes the dust off the solar panel every day keeping the Solar panel at optimum efficiency.
2.Uses free electricity from the sun so environmentally-friendly and pollution-free
3.Easily Replaceable Battery bank housed in a strong aluminum removable cartridge
4.Easy to install and safe to use
5.No costly or complicated pipe- laying or inderground wiring required
Applications
All in one integrated solar street light can be application at :
High way / Park / Street / Roadway / Parking Lot / Public square / School etc.
Packaging
Solar led street light :
Solar panel:carton package and pallet
Battery:carton package and pallet
Controller:carton package and pallet
Pole:bubble wrap
Fixture:carton package and pallet
