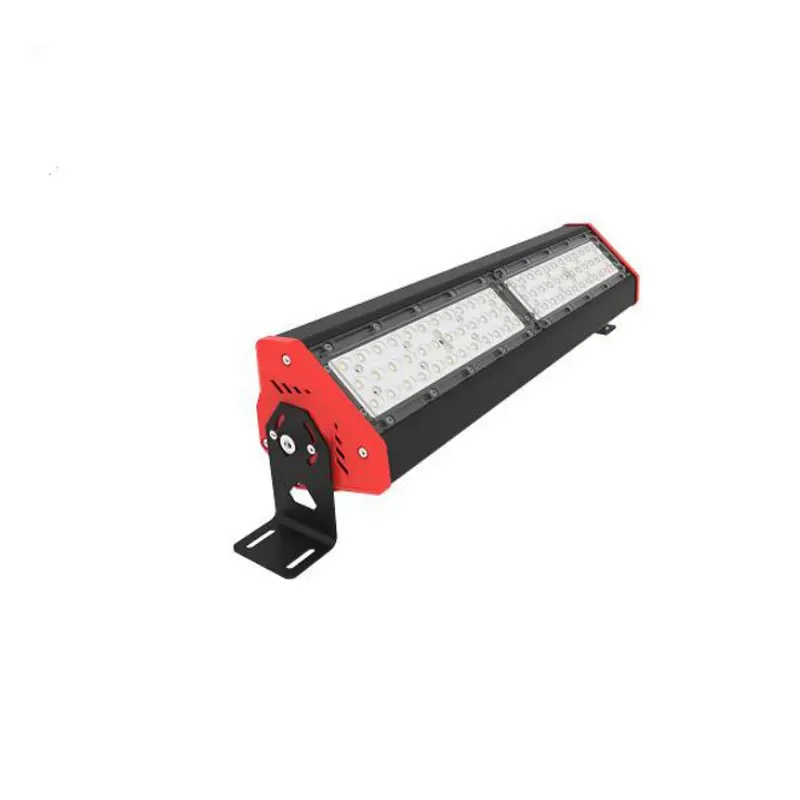

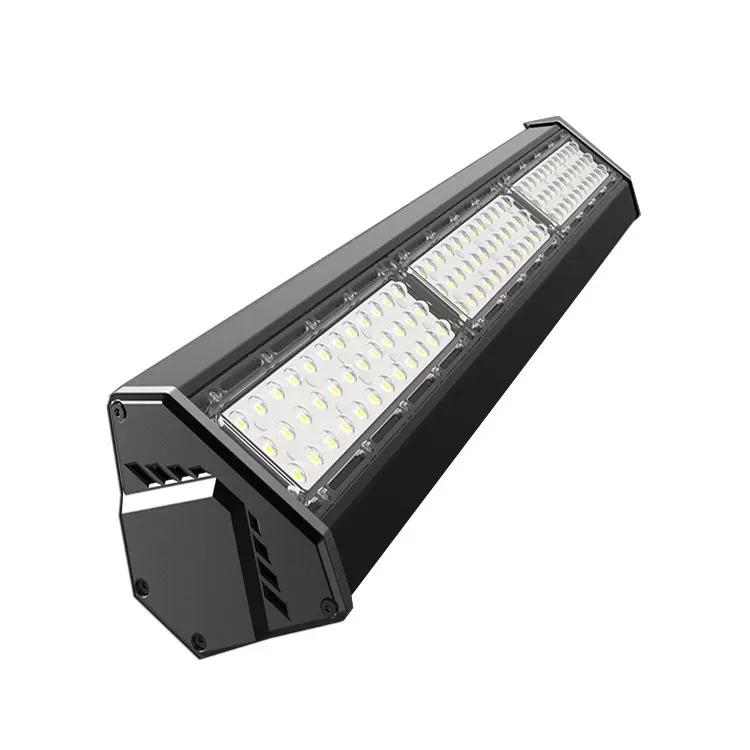

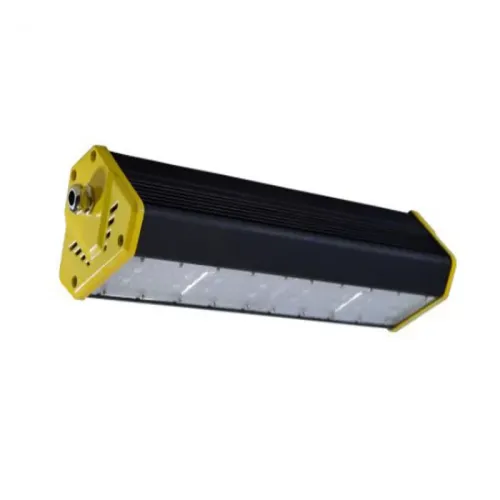

Dimmable LED Linear High Bay IP65 50W 100W 150W 200W Use In Factory Warehouse
Product Description
MS Linear high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.
Features
1.Unique appearance design,different from traditional high-bay light,fashion,compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.
Specification
| Wattage | 100W | 150W | 200W | 240W |
| Lamp Luminous | 14000-16800 | 21000-25200 | 28000-33600 | 33600-42000 |
| Flux (lm) | ||||
| Length (mm) | 600 | 900 | 1200 | 1500 |
| Length (ft) | 2ft | 3ft | 4ft | 5ft |
| Item Type | LED High Bay light | |||
| Light Source | Epistar SMD2835 | |||
| Beam angle | >120° | |||
| Warranty | 5 Years | |||
| Power factor | >0.95 | |||
| Led driver | Meanwell driver(Internal) | |||
| Installation | Suspending / Surface mounted | |||
| Input Voltage | 100-277/347VAC 50/60Hz | |||
| CRI | >80 | |||
| Working Lifetime | 50000Hrs | |||
| Working Temperature | -4-122℉(-20-50℃) | |||
| Lamp Body Material | Pure Aluminum Housing | |||
| IP value | IP65 | |||
| CCT | Warm White, Neutral White, Cool White, (2700-6500K). | |||
| Lamp Luminous | 140lm/w+10% | |||
| Efficiency (lm/w) | ||||
| Certification | DLC Premium UL/ETL/TUV /SAA | |||
Details
1. Unique and modular design, low weight.
2. Unique cold forging aluminum heat sink, 3 times better than die-casting in heat dissipation.
3. Lumileds LED.
4. ADAYO driver/Meanwell HVG(5 years warranty), Meanwell Driver HLG series driver(7 years warranty).
5. 130lm/w, UL/DLC/CE/ROHS approved.
6.UGR<22 solution for option.
7. Motion and daylight sensor for option.
Applications
Suitable for large workshop,warehouse,parking lot,shopping mall,farm,gas station and other places.
Factory
Packaging
Standard export packaging or customized according to customer requirements
