ETL CETL DLC up down 130lm 4ft 8ft 40w linkable ceiling suspended linear led lighting
Features

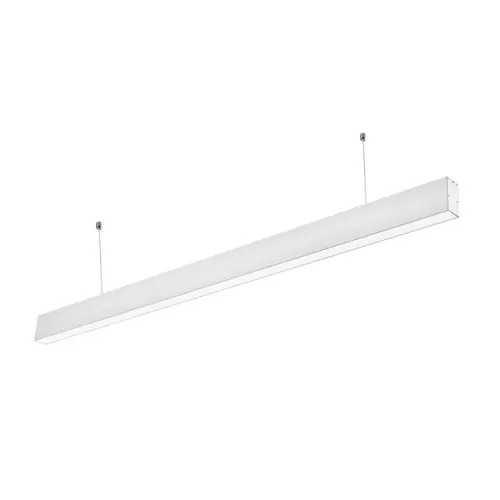

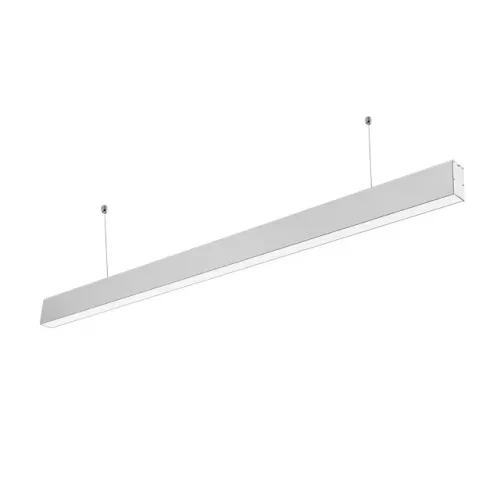

linear led pendant light
This is a linear led pendant light for general lighting applications. It is available for suspension mounting and offered with a variety of dimming driver and light color options for added versatility. No flicker, low glare, Linkable.
1.Connect with seamless, form with line shape.
2.Cap use PC plastic moulding, connect with PC cover with seamless which let the light can't run out.
3.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
4.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
5.Use AGT / LIFUD isolated constant current power supply, IC driver. No flickering, No glaring.CIR ≥ 80.PF ≥ 0.9.
6.Recessed installation, 70mm width, 35mm height, popular length 0.6m,1.2m,1.8m,2.4m available.
7.UGR<19, Dim & CCT changing available, 0-10V / DALI dimming optional.
8.Led linear lights passed TUV SAA CE FCC ROSH certifications.
Specification
suspended linear led lighting
Details
linear led light fixture
Up and down light for options
Visual comfort. No screws on the end caps.
Anti-glare
UGR film added to decrease the glare. UGR<22, Use PMMA material for Lens.
Linkable design
Use physical ways to connect, no need for screwdriver. Aluminum housing,fast heat dissipation.
Meet uniqueness of design
Different shape,different design concept.
Good performance of connection
Well connection with other lights make no light leakage. Connect with lights as many as you want.
Uniformity
Wide batwing distribution,enhance light uniformity.Give you a good experience.
Energy saving.
Mounting
Different locations, different installation methods
Partnership
Cooperate with leading brands for LED driver and some other components.
Lifespan for lights is more than 50000H.
Applications
led linear suspension lighting Used for:
Communication area, Education, Office, Hotels, Shopping mall, Commercial lighting, etc.
Installation
Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed
Factory
Packaging
LED Linear Lighting Standard export packaging or customized according to customer requirements
