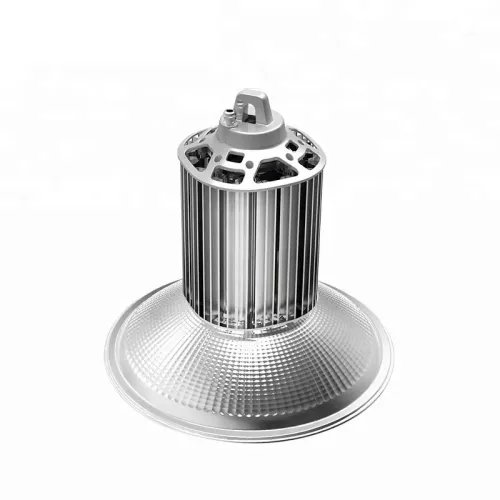

Factory Warehouse Industrial Aluminium 200w High Bay LED Warehouse Lighting

Industrial Aluminium 200w High Bay LED Warehouse Lighting
  • Specification:
    Watt: 200W
    Item Type: High Bay LED Warehouse Lighting
    Input Voltage: AC85-305V 50/60Hz
    Luminous: 24000LM
    Driver: Meanwell Or SOSEN
    LED Chip: 3030
    Ambient Temperat: -20 °c-- +60 °c
Description
Description

High Lumen Factory Warehouse Industrial Aluminium 200w High Bay LED Warehouse Lighting







Features




This led warehouse lighting high bay can get the same lumen output as triple HPS / HID / Metal halide lamp, it's the best lighting solution for warehouse, indoor stadium / badminton court / basketball court, workshop and so on.



120lm/w±5% high lumen output, SMD3030 LED;
AC120~277 & 347~480V LiFud / Sosen led driver for industrial and regular appliaction;
100w, 150w, 200w, 240w are available;
Motion sensor (occupancy sensor) is available;
LM79, LM80, TM21, IES, Photometric data report are available;
IP65 waterproof, suitable for outdoor and indoor locations;
Rated life > 50,000 Hours, 5 years warranty;
Beam angle option: 60 & 90 & 120 degree, 60 degree PC & 90 degree aluminum reflector are available;
Black and white shell are available.




Specification



200W industrial led high bay
Model No MS-HBLS-200W-A
Power 200W
Light Source 200pcs SMD3030
Color Temperature 3000K/4000K/5000K/6000K
Luminous Flux 120-130 lm/w
CRI >80
Beam Angle 25°/60°/90°(by different lampshade)
Meanwell Driver ELG-200(1PCS)
Input Voltage 180-305VAC
PF > 0.95
Driver Efficiency >93%
Resist Lightning Surge 4KV
IP Rating IP65
Installation With square driver ,with bracket for installation
Housing Color Black
Lifespan 50,000 hours
Product Dimension Ø440*H523mm
Package Dimension 65*65*38CM/ Lamp body
Warranty 5 Years





Details



warehouse high bay lighting





1, The light source adopts the integration of imported single high power LED, with the special design of integrating many chips into one lighting source.

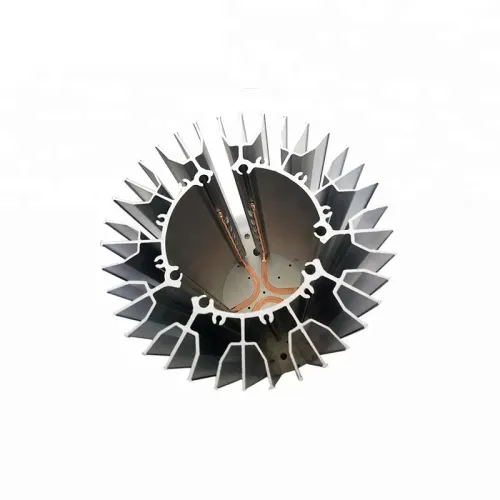

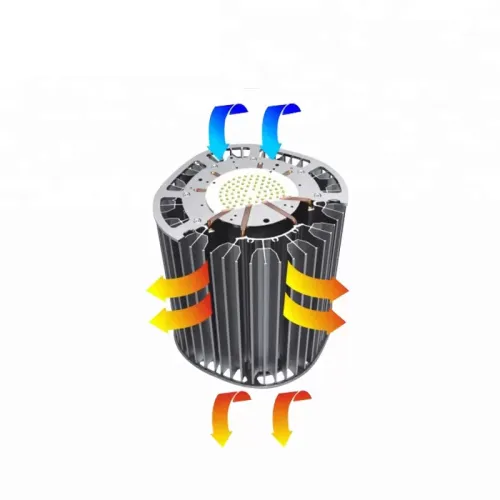

2, Integrative design for heat sink and housing ensure 50,000 hours life-span for the LED. If it works 11-12 hours per day, it can work over 5+ years.


3, The high purity aluminum from Germany as the reflector is at high reflecting efficiency, which improves the efficiency of light uniformity and utilization, and shows the LED advantage of energy saving.


4, Input voltage: AC100-265V. New high efficiency constant current driver.


5, Can present the original color of the objects, it has varies of colors to choose which can meet the requirements in different environments. It eliminates the dullness of environments caused by the lower color temperature, like sodium lamp, or higher color temperature, like mercury lamp.


6, No delay start. It can reach normal lighting as soon as it is turned on. No noise.


7, Use powerful LED light source and high efficiency imported LED driver. Compare with sodium lights, it can save electricity around 60%.


8, Environment friendly and no air pollution. We exert the design of using cold light source. It no heat radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any other contamination. It is really environment friendly with ROHS certificate


9,Beam Angle: 25, 60 and 100 are available





Application



Factory Warehouse Industrial LED High Bay Light can be used in workshop, factory, warehouse, highway station, gas station, supermarket, exhibition hall, gymnasium, construction site, mining area and so on.







Installation










Production line








Package

Option 1: Neutral packing
Option 2: Neutral packing + your own labels
Option 3: Customized design packing (color boxes)
