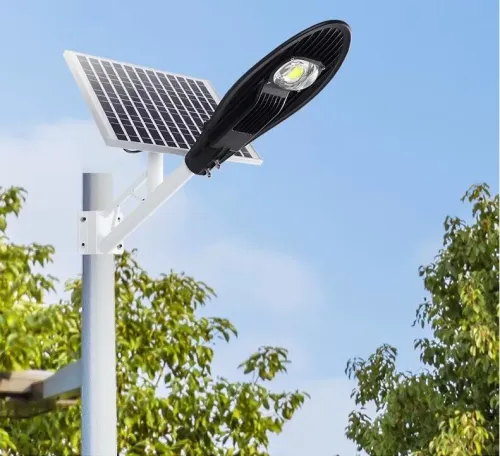

Integrated Waterproof Solar Powered Led Street Light With Auto Intensity Control
Features
a. Light Pole (15 years Warranty)
2~6m high Hot-dipped galvanized pole and surface spray treatment/powder coated .
Guaranteed warranty for entire system for 3 years, during which there any problem found, repair or replacement shall be provided free of charge,also guarantee for life long repair.
b. System voltage:12 or 24V DC
Light source: High-power LED
Total luminous flux: 3000 to 6000lm
Luminous flux: ≥ 100lm/W
Working each day: 4 to 12 hours (may design into full power illumination mode or anenergy-saving mode (customized))
Number of overcast and rainy days: 2 to 7days (customized)
Illuminance: 10- to 45-lux (customized)
Wind resistance: 41.4m/s
c. Solar panel (25 years Warranty)
10~90W Mono or polycrystalline with high conversion efficiency
Life expectancy: ≥ 25years
d. Storage battery (3 years Warranty)
Type: Valued-controlled and sealed maintenance-free gel storage (for solar energy only)
Life expectancy: 5 to 7 years
e. Controller (3 years Warranty)
Type: Microcomputer intelligent waterproof with anti-overcharge, -overdischarge,
light and time control functions
Life expectancy: ≥ 5 years
Type: Mold-pressing forming, fully-sealed waterproof, nice insulation effect
Life expectancy: ≥ 20 years
Light source lifespan: ≥ 50, 000 hours
Note: Configuration said above is for reference only, actual configuration is designed according to local climate conditions and customer requirements.
Specifications
| Model: | 20W | 30W | 60W |
| Solar panel Max power: | 3.2V 15W 2.5A | 6V 22W | 12V 50W |
| Battery Type: | Lithium battery 7000mAh | Lithium battery 12000mAh | Lithium battery 30000mAh |
| Lumen (LM): | 2000-2200 LM | 3000-3200 LM | 6000-7200 LM |
| Charge time(by sun): | 8 Hours (with enough strong shine) | 8 Hours (with enough strong shine) | 8 Hours (with enough strong shine) |
| Discharge time: | 15 Hours | 15 Hours | 15 Hours |
| Protection | IP65 | IP65 | IP65 |
| Working TEMP( ℃ ) | -20~+60 | -20~+60 | -20~+60 |
| CCT (k): | 6000K - 6500K | 6000K - 6500K | 6000K - 6500K |
| Mounting height(m): | 5-6m | 6-7m | 6-8m |
| Lighting Viewing Angle: | 120° | 120° | 120° |
| Lighting Mode: | Light control + Rime control+ Remote control | ||
Details
1 using solar power to save energy and protect the Earth's resources;
2 angel eyes using human infrared sensor control technology
3 lithium iron phosphate battery, 3-5 years long life, the world's first and only patented technology, the design of the battery can be up to 5 years maintenance-free.
4 integrated solar street light without cable, installation is extremely convenient, 5 minutes to complete the installation of a street lamp construction, the world's first;
5 IP65 waterproof structure, safe and reliable;
6 can be extended timing, voice and advanced intelligent functions;
7 angel eye integration of solar street lights modular design concept, easy to install, maintain, repair;
8 alloy structure as the main body, has a good anti-rust, anti-corrosion function.
Applications
Solar Powered Led Street Light very suitable using in Garden,Park,Pathway, courtyard, street,roadway, sidewalk, farm & ranch etc ,
