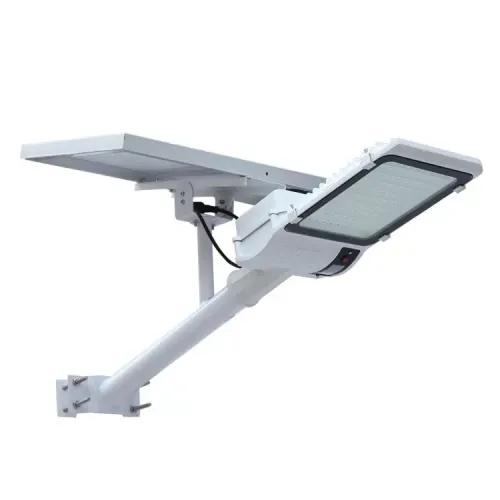

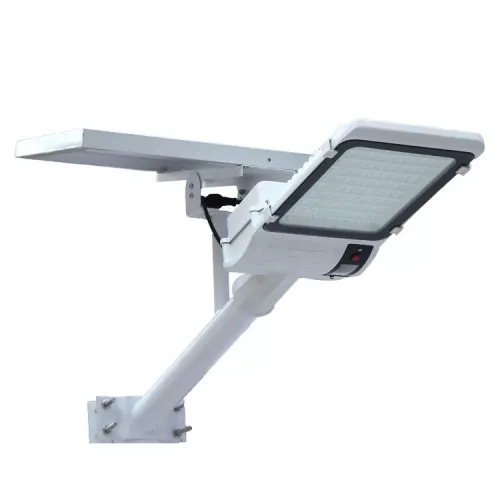

Outdoor Ip65 Integrated Solar Powered Led Garden Decorative Light
Features
Solar Powered Led Garden Light
Integrated Design: LED lamp, Lithium batter y, Micro-controller in one system.
Intelligent Sensor: The solar powered light turns on automatically at dusk and shut off after 8 hours, It can be
also programmable as customer requirements (10 hours, 12hours etc.)
High Capacity Batter y:High performance LifePO4 batter y ensure sustainable lighting more than 5 rainy days.
Adjustable: Solar panel can be adjusted for matching the various region installation.
Safety: Low voltage design ensure all solar street light system safe and reliable.
Convenience: No external wires, easy for installation, it can be mounted by vertical or horizontal on pole easily.
Quality and Grade: CE and ROHS certified. IP65 Outdoor waterproof 5 years warranty.
Specifications
| Model | TK Semi Integrated Solar Powered Led Garden Light | ||
| Power | 30W | 30W | 50W |
| Solar panel | 50W/18V | 60W/18V | 100W/18V |
| Battery | 40000MA/6.4V | 60000MA/6.4V | 120000MA/6.4V |
| Installation Height | 5-6m | 5-7m | 5-8m |
| Irradiation area | 120 | 120-150 | 120-150 |
| Light Source | OSRAM SMD 3030 | ||
| Beam angle | 70°*120° | ||
| CCT | 3000~6000K | ||
| Controller | MPPT Intelligent Controller | ||
| Working temperature | -20~+50°C | ||
| Certificate | CE,ROHS,SAA etc | ||
| Warranty | 3 years | ||
| Application | villa,school,country,countryside,rural area,community, | ||
| villages and towns | |||
Details
1. 1500 cycle Li-ion battery,10 years spen life.
2. Support more than 10 rainy days with the best technology ALS2.0.
3. Smart remote control function to satisfy different customer use
4. Constant brightness/Dim lighting + Motion sensor/Timer lighting mode
5. 24pcs Led chip, 160lumen/W ,140°wide lighting angle
6. Integrated design with Patent,cableless ,easy to install
7. Aluminum alloy case,Waterproof IP65
8. Turn on/off at dusk and dawn automatically
High-end LED Street Light
1. System efficiency up to 165lm/w.
2. Module design easy for replacement.
3. Vertical and horizontal installation both installation.
4. Big power range from 30-120w.
High Efficacy Solar Panel
1. High efficiency 20% monocrystalline cells.
2. 25-year linear performance warranty.
3. Certified by TUV.
4. 0 to +5W positive tolerance.
Stable Performance Battery
1. Long lifetime up to 8-10 years.
2. Maintenance free operation.
3. Gel/Lead-acid Battery, or Lithium Battery.
4. Environmental & non-polluting.
5. Safe and reliable
MPPT Controller
1. 20% energy utilization more than PWM.
2. The infrared wirelss communication.
3. Metal case, IP68 waterproof.
4. Intelligent power down to extend battery working time.
5. 3 time dimming.
6. Build-in the Constant LED Driver
High Quality Cable
1. Cu content exceeds 99.9999%.
2. GB standard CU/PVC/PVC.
3. 2×2.5mm2 copper stranded core cable.
4. Double protective layer, long service life.
Light Pole
1. Galvanization standard: ASTMA123/EN ISO1461
2. Hot dip-galvanized.
3. Galvanize Q235
4. OEM design
Applications
The Street Light With Solar Power Can Widely Application At:
Courtyard / Garden / Park / Street / Roadway / Pathway / Parking Lot / Private road / Sidewalk / Public square / plaza / Campus / Airfield / Farm & Ranch / Perimeter Security / Wildlife area / Remote Area / Military Base
Packaging
Standard export packaging or customized according to customer requirements
