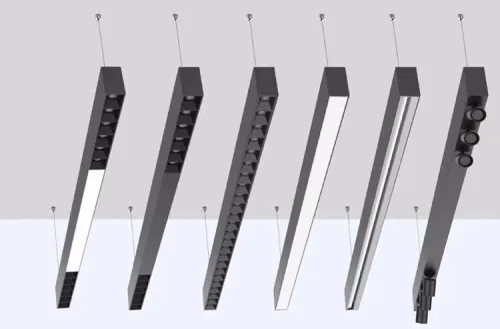

Seamless Stitching 40W Modern Design Ceiling Pendant LED Linear Light Fixtures
Features
suspended linear led lighting
Connect with seamless, form with line shape
Connect by 2pcs pillar which lead stable and seamless
Product can be used hanging ,surface mounted, recessed installation
It's antiglaring with diffuser plate and diamond transparent plate design. Output lumens can reach 85lm/w.
Aluminum PCB with no-facula design
IC driver. Emergency 3H,No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9
Product passed ENEC TUV SAA CE FCC ROSH certifications
Specification
5065 type led linear lights Parameter
| Item | 5065LS20W06 | 5065LS40W12 | 5065LS60W18 | 5065LS80W24 |
| LED | SMD2835 | |||
| Lumens | 1700-1900 | 3400-3600 | 5100-5300 | 6800-7000 |
| CCT(K) | 2700-7000K | |||
| CRI | Ra≥80 | |||
| Life time (Hrs) | ≥50000H | |||
| Light decay | ≤8%/10000 小时 | |||
| Input Voltage | AC100-277V/AC200～ 240V | |||
| Hz | 50/60 Hz | |||
| Power | 20W±2W | 40W±2W | 60W±2W | 80W±2W |
| PF | ＞0.9 | |||
| Start Time(s) | 0.2 | |||
| Beam angle | 120° | |||
| Material | Aluminum,PS,PMMA,ABS | |||
| Dimension(mm) | L605*W50*H65mm ±3 | L1200*W50*H65mm ±3 | L1794*W50*H65mm ±3 | L2388*W50*H65mm ±3 |
| finished | Silver,White,Black | |||
| IP | IP54 | |||
| Working humidity | -25℃ ～ 35℃,10% ～ 90% R.H. | |||
| Storage temperature | -40℃ ～ 80℃,0% ～ 95% R.H. | |||
| Certification | CE,ENEC | |||
| Environmental protection | ROSH | |||
Details
suspended linear led lighting
1.Connect with seamless, form with line shape.
2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.
Applications
led linear suspension lighting Used for:
Office, gallery, hotel, restaurant, school, warehouse, shop, market, etc
Installation
Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed
Packaging
LED Linear Lighting Standard export packaging or customized according to customer requirements
