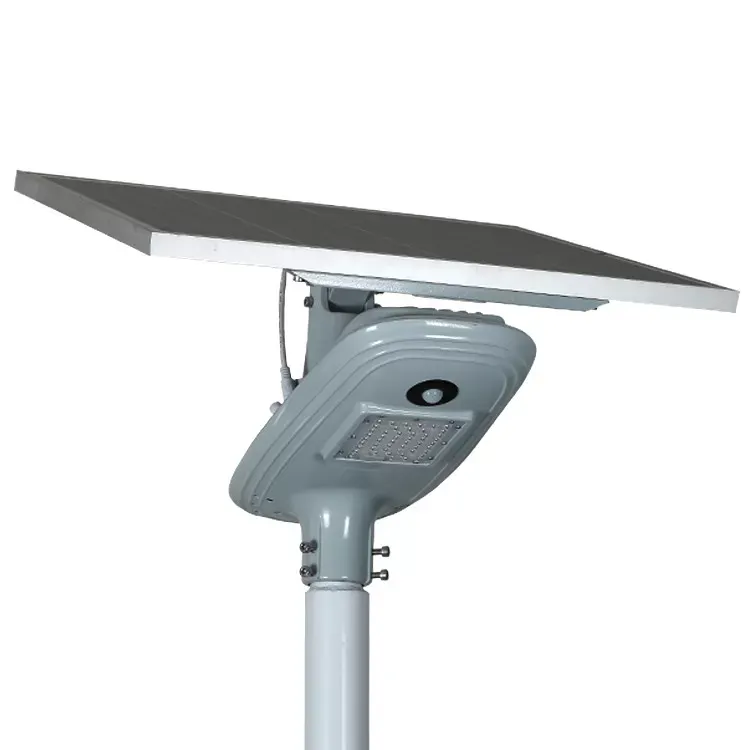

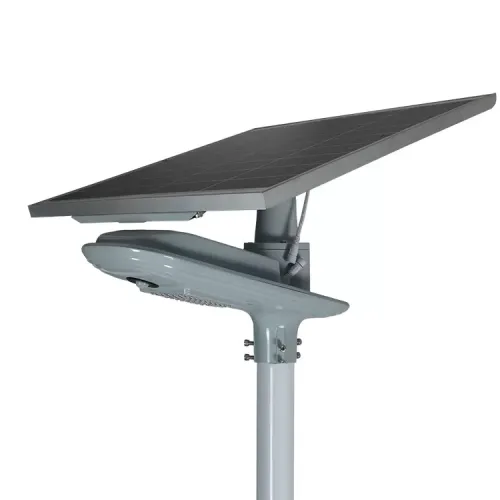

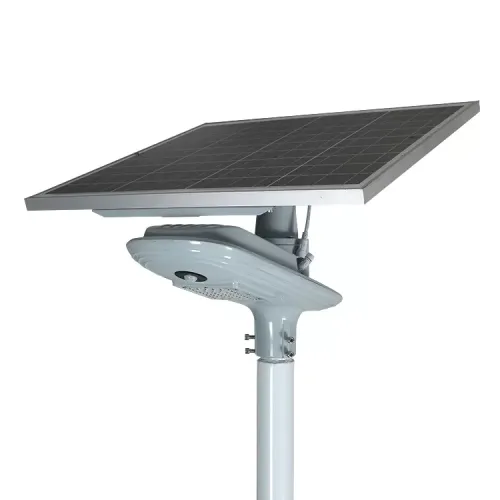

Solar Led Street Lighting System Outdoor Adjustable Solar Panel PIR Sensor
Features
Solar based led street lights
2000 cycle lifepo4 battery,10 years spen life.

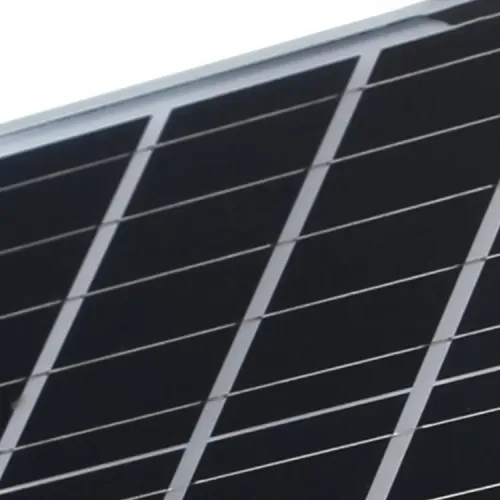

Adopt monocrystalline silicon solar panel, higher charging efficiency.
Support more than 10 rainy days with the best technology BMS.
Many smart remote control function to satisfy different customer use.
Constant brightness/Dim lighting Motion sensor/Timer lighting mode.
60pcs Led chip, 160lumen/W ,140°wide lighting angle.
Integrated design with Patent,cableless ,easy to install, convenient shipping.
Beautify decorating design: at the back of lamp, with 8 flashing colors decorating.
Die-casting aluminium case,Waterproof IP65.
Turn on/off at dusk and dawn automatically.
Specifications
LED street light solar system
| model | MS-XK-30W |
| Power | 30w |
| LED Chip | bridgelux |
| Material | aluminium |
| Solar Panel Power | 18V 60W |
| Rated life | 50000h |
| Color temperature | WW/W |
| Working temperature | -20~+60°C |
| IP code | IP65 |
| Warranty | 3 Years |
| Battery | 3.2V 60AH |
| IP Grade | IP65 |
Details
Solar powered street lights residential
DEMO: Test button for demonstration
OFF: shut down, do not light all the day or all the night.
Working mode
T (Time control+Light control mode): Start from 7:00pm,
80%-1hr, 100%-3hrs, 50%-2hrs, 30% till dawn
M (Microwave mode):100% brightness when sense people or things come closer,
Remain 20% when far away.
TM (Time control+Microwave control mode):
80%-1hr, 100%-2hrs, 50%-2hrs, after 5 hrs, microwave sensor working as follows:
50% when people or things come closer, 20% when people or things far away,
Remark:Default mode is M, you can choose or customized your preferred mode according to the lighting condition in your projects.
Humen body sensor +light control +time control ,automatic switch according to sunshine intensity :lights on when people come close ,light dinmmed when people go away ,to extend lighting timel different energy saving settings according to different scenarios,to ensure the effectrive lighting capacity.
Applications
Solar powered street light with auto intensity control Can Widely Application At:
High way / Park / Street / Roadway / Parking Lot / Public square / plaza / Campus / Airfield / Farm & Ranch / Remote Area / Military Base / Goverment project for special use etc.
Packaging
Standard export packaging or customized according to customer requirements
