Solar Powered Led Street Light With Auto Intensity Control Ip65 Waterproof Ip65
Features

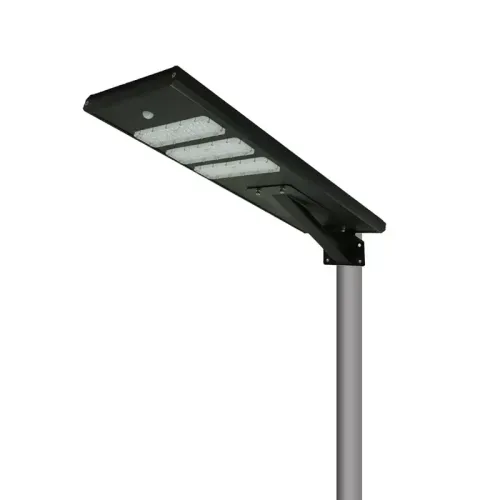

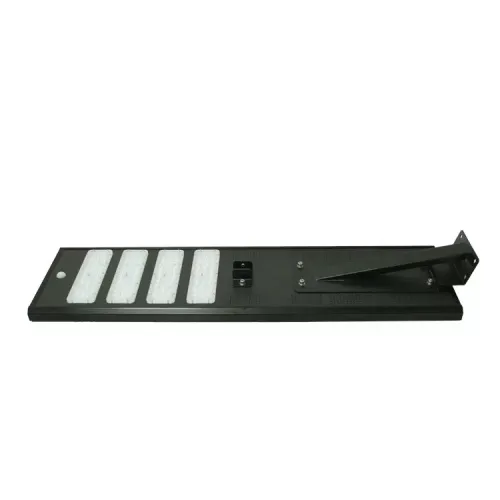

all in one solar street courtyard light
The integrated solar street light has lower consumption, high-brightness, long service time, maintenance-free, and good water-proof and heat radiation performance. In addition, it is not the same with the ordinary solar street light that should install the light and solar panel separately, the light and the solar panel are integrated into one structure, which is easy to install.
Specifications
| Solar integrated street light | ||||
|
Model
|
MS-220
|
MS-240
|
MS-260
|
MS-280
|
|
Power
|
20W
|
40W
|
60W
|
80W
|
|
Solar panel Max power
|
18V / 25W
|
18V / 35W
|
18V / 50W
|
18V / 65W
|
|
Battery Type
|
12V / 12AH
|
12V / 16AH
|
12V / 21AH
|
12V / 26AH
|
|
N.W/G.W
|
5.5kg / 6.3kg
|
7.8kg / 9.5kg
|
10.5kg / 12kg
|
14.8kg / 16.5kg
|
|
Product size
|
495*355*80mm
|
740*305*140mm
|
940*305*140mm
|
1120*305*140mm
|
|
Carton size
|
570*390*150mm
|
810*390*220mm
|
1000*390*220mm
|
1180*390*220mm
|
|
Model
|
MS-2100
|
MS-2120
|
MS-2150
|
|
|
Power
|
100W
|
120W
|
150W
|
|
|
Solar panel Max power
|
18V / 90W
|
18V / 90W
|
18V / 135W
|
|
|
Battery Type
|
12V / 42AH
|
12V / 56AH
|
12V / 76AH
|
|
|
N.W/G.W
|
19kg / 21kg
|
20kg / 22kg
|
29kg / 31kg
|
|
|
Product size
|
1120*440*140mm
|
1120*440*140mm
|
1270*540*150mm
|
|
|
Carton size
|
1180*530*220mm
|
1180*530*220mm
|
1300*670*220mm
|
|
|
led chip brand
|
SMD 3030
|
CCT
|
6000-6500k
|
|
|
Charge time(by sun)
|
6-7hours
|
Space between light
|
25-30M
|
|
|
Discharge time
|
3-4 rainy days
|
Warranty period
|
3 years
|
|
|
Working TEMP
|
-20~+60
|
LED life time
|
50000h
|
|
Details
The design of the integrated solar street light/garden light absorbs the inspiration and energy from the universe, and combines today's best green energy portfolio (solar energy, semiconductor LED light source, dedicated battery for street lights). It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc., combines with the simple integrated structure design, perfect achieve higher brightness with lower power consumption,
(average 6w power consumption equals 100w incandescent lamp's illumination) , long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation.
Working time data is based on charging 8 hours in the sunny summer, measured in north latitude 22°, east diameter 13°.Actual working time may be changed due to different installation area, season, environment, direction etc.
Applications
Sid of the road ,street
Foggy area (seaside,airport area)
Highway
The Ramp,corner
Curve road
Packaging
Solar led street light :
Solar panel:carton package and pallet
Battery:carton package and pallet
Controller:carton package and pallet
Pole:bubble wrap
Fixture:carton package and pallet
