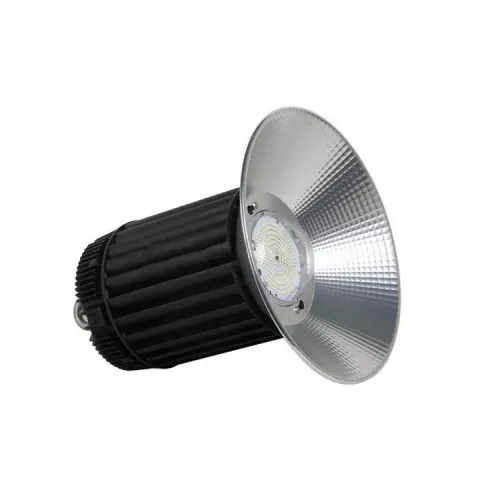

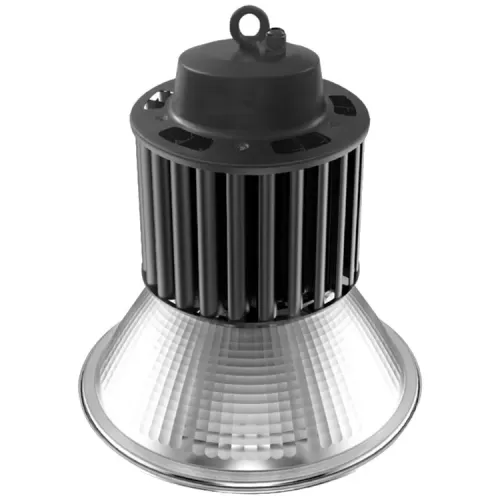

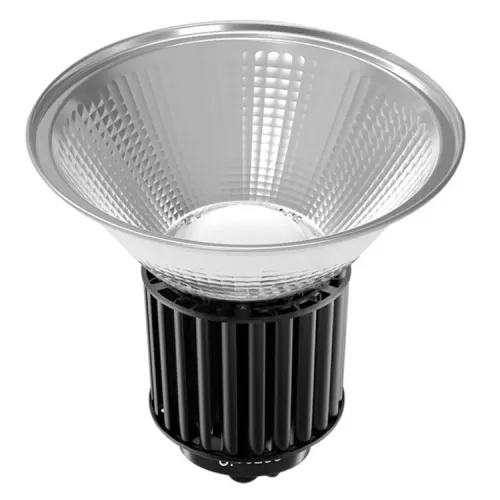

Warehouse Lighting Indoor Factory 60 80 100 150 200 250 Watt Industrial LED High Bay Lights
MINSENS® LED highbay lights are designed for simplicity,elegance and practicality.
Use only the most durable materials and components, modular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation. Thin aluminum sheets resulting in a thermal management design with a larger surface area of fins for better heat dissipation and air flow but is extremely light weight. Furthermore, 70,000 hours long lifespan and 6-year limited warranty brings new concepts of LED lighting.
Widely used in warehouse facilities, assembly areas, gyms,hangers, transportation garages, loading and staging areas etc.
Featurs
high power led high bay lights
1.Long L90 lifetime: using Nichia's latest LED technology, the L90 life is 60% longer than 3030 LEDs.
2. Import from Japan Nichia directly.
3.Super high light efficacy.
4.Engineered with proprietary binned LM-80-rated LEDs, which are specially rated for higher thermal performances, provide uniform color consistency.
5.To make the color more consistent, we always use the exact same bin for all the lights in a single project. We finer tune the binning.
Specification
| Item name | led high bay lights 200w |
| Light Power | 200watt |
| Input Voltage | 85-265 V AC;50/60 HZ |
| Material | Aluminum |
| Luminous | 22000 lm |
| Driver | PF>0.95 ; CRI>80; |
| CCT | 3500-7000 K |
| Beam Angle | 45°/60°/90°/120° |
| Working temperature | -40°C-60°C |
| Lifespan | 50,000 hours |
| Warranty | 3 years |
Details
led high bay factory lights
1. Integrated heat sink design, no riveting .
2. LED Drivers isolated from the heat sink .
3. Aluminum/Acrylic reflector optional for classic shape .
4. Can be IP65 rated after adding a wire-guard.
1.Aluminum Extrusion profiles radiator,thermal faster with copper pipe inside
2.Charming heat dissipation design LED source, high stability and color rendering Meanwell driver,Old brand with quality assurance
3.Reflector with anti-glare design which highly reduced the light glare problems
4.45°/60°/90°/120°optional beam angle.
Application
led high bay light fixtures Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets,exhibition halls, stadiums and other places of lighting required.
Installation Process
industrial high bay led lighting fixtures
1. Turn off power supply to avoid the risk of electrical shock.
2. Proper grounding is required to ensure personal safety.
3. Make certain power is OFF before starting installation or maintenance.
4. Do not recess the fixture.
5. A qualified electrician should do all work.
6. DO NOT TOUCH THE LED CHIPS. DAMAGE MAY OCCUR.
Package
1.Normal Packing with canton(export packing), goods can be packed under the customer's requirement.
2.If it is fragile, we will provide wooden case to protect them, if ship by sea, shipping trays can be offered for customers.
1 Set = 2 Boxes (Lamp Base + Reflector). We will pack the reflector by wooden box outside to prevent damage and deformation in the transportation.
