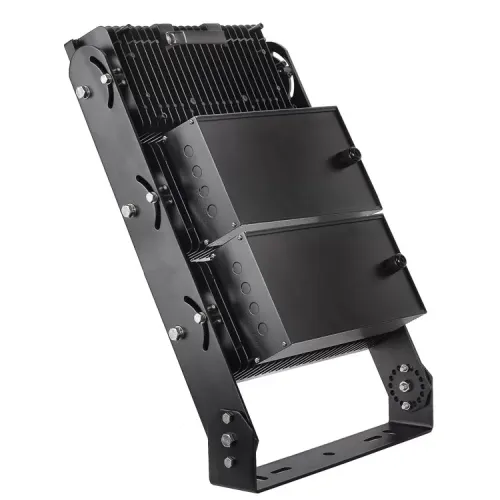

1000w Modular Led Stadium Light For Tennis Court Football Field Projector Lamp Led High Mast Waterproof Lights

Led Stadium Light For Tennis Court Football Field
  • Specification:
    Item: Led Stadium Lights Outdoor
    Lamp Power: 250W 500W 750W 1000W
    Input Voltage(V): 90-277VAC
    Luminous Efficiency: 140LM/W
    Beam Angle(°): 8° / 20° / 40° / 60°
    Lamp Body Material: 1016 Aluminum
Description
Description

1000w Modular Led Stadium Light For Tennis Court Football Field Projector Lamp Led High Mast Waterproof Lights




Features



Meanwell LED Drivers, AC100V~277V, PF>0.98, THD<15%.
Lens 10, 25, 45, 60 degrees beam angles and excellent uniformity.
Ultra-low luminous decay <10% in 5 years. L70>50,000hrs.
Junction temperature<70°C, good heat dissipation provide longer lifetime.
Light transmittance of PC more than 93%.
Intelligent dimming system. 0-10V, DMX and DALI dimming models are available.
IP67 rating is applicable to outdoor environment.
Working environment in -35℃ to 65℃.
ETL / cETL / DLC / CE / RoHS / LM79 / LM80 / IES file is available.
50000 hours lifespan with 5 year warranty.






Specification

led stadium lights outdoor



Product model We can do color 5050Lamp bead Lens Angle Net weight (KG) Carton size (MM)
250W Black/silver 98pcs Lens 10, 25, 45, 60 degrees 10.9 kg 440*495*230
500W Black/silver 196pcs Lens 10, 25, 45, 60 degrees 15.9 kg 620*495*230
750W Black/silver 294pcs Lens 10, 25, 45, 60 degrees 20.9 800*495*230
1000W Black/silver 392pcs Lens 10, 25, 45, 60 degrees 25 .9kg 980*495*230
1500W Black/silver 588pcs Lens 10, 25, 45, 60 degrees 40 kg 940*900*230
2000W Black/silver 784pcs Lens 10, 25, 45, 60 degrees 55 KG 940*900*230





Details


LED Stadium Sports lights



From New Private mold , Fashionable outlooking , Reliable IP65 waterproof structure design !

Narrow beam angle (10, 25, 45, 60 degrees) optional , can illuminate long distance !

High Lumen efficiency : 140-170 LM/W

5 years warranty , Meanwell driver + world famous brand chips

Super Competitive ratio of quality/price

Perfect corrosion-proof : Pure aluminum for main housing , Galvanized plate + painting for bracket and driver cover, all 304 stainless steel screws

Up to 1000Watt high power ! Customer can assemble 2 or 3 or 4 modules flexibly by themselves













Lens: 10, 25, 45, 60 degrees


1060 Aluminum
Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.



±30˚Angle adjustable
Each module adjusted ±30° positive and negative.


±360˚Angle adjustable
The whole lamp can be adjusted 360°,and we mounted anti-skid teeth on the bracket.


Waterproof connectors
The power connectors on all our lamps are IP68 waterproof.


Power wire
The power wire implement Europe standards, brown is L, blue is N, and yellow-green is ground.


Rotatable bracket
Optional Rotatable bracket can be adjust horizontal plane angle when you mounted lamp.


Driver Box
Intelligent temperature control branded driver used with 5 years long time warranty, aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out.





Factory






Applications


LED Stadium Sports lights can be used in Highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas ,gardens and other places.







Packaging


1 unit per Neutral packing box

Standard export packaging
