100w 150w 200w 100v-277v 347v Zigbee UFO Led High Bay Light For Warehouse Workshop

Zigbee System UFO Led High Bay Light For Warehouse Workshop
  • Product:
    zigbee ufo led high bay light
    UFO High Bay Light
    led ufo high bay light
Description
Description

150lm/w 5 Years Warranty 100w 150w 200w 100v-277v 347v Zigbee Ufo Led High Bay Light For Warehouse Workshop







Description



High efficiency isolated driver with CE, ROHS, TUV, SAA, approved, Tai Wan Mean Well Driver available
High Quality Lumileds/OSRAM Chips 3030 2D, up to 150lm/watt
CCT 2700-6500K, Warm White/Natural White/Cool White optional,
IP65 waterproof Rated high bay light
Universal input voltage from AC100-305V, 50/60HZ
Safety operating voltage from DC24-DC46V
Pass the 4000V high voltage testing by TUV&ETL
Voltage Leakage is less than 10V during operating
No UV or IR in the beam
Extremely low maintenance(safety&cost aspect)
Durable structure&stable performance
Comparing to traditional Metal halide lamps can save energy 40%-60%.
No flash, No RF,No ultraviolet radiation
Vertical Aluminum heat sink, benefit to heat dissipation
Our high bay light is CE/RoHS/IK09 approved





Features



IP65 waterproof , suitable wet & tough environment.
SMD 3030 LED Chips, 160lm/w.
Low power consumption, energy saving, with longer lifetime.
Environmentally friendly, no UV , no mercury and other pollutants.
Two installations: Bracket & Hooking Hang for options.
High pure aluminum heatsink design increase more airflow for better heat dissipation.





Specifications



led ufo high bay light



General Performance
P/N MS-UHL-100W-F MS-UHL-150W-F MS-UHL-200W-F
Input Power 100W 150W 200W
Lumen Output 16000~17500LM 24000~26250LM 32000~35000LM
Light Efficiency 130~175lm/w
Color Temperature 3000K/4000K/5000K/5700K/6500K
LED Source LUMILEDS 3030 SMD / CREE 3030 SMD / SANAN 2835 SMD
Electrical
Power Factor >0.95
Input Voltage AC100-277V / AC200-240V / AC200-480V, 50/60HZ
THD <20%
Physical
Net/Gross Weight 2.1kgs/2.7kgs 3.1kgs/3.9kgs 4.5kgs/5.5kgs
Lamp Dimention 280*160mm 330*186mm 380*186mm
Packing(1pc/ctn) 325*325*175mm 375*375*185mm 425*425*185mm
Housing Die casting Aluminum + PC lens
Beam Angle 60°, 90°, 120°
Installation Ceiling, suspend, pipe mounted(optional)
Operation -35°C~55°C
Humidity 20%~85%, non-condensing
Finish black/white
EET A+
Waterproof Rating IP65
Certificate
Certificate CE, ETC, CETL, DLC, LM80, LM79, TM21
Material Usage ROHS compliant
Storage Temperature Class ll
LED Class LM80 rated to 50,000 hours
Application Indoor, Outdoor, Dry/Wet location
Warranty Time 5 Years
power 100w 150w 200w





Details

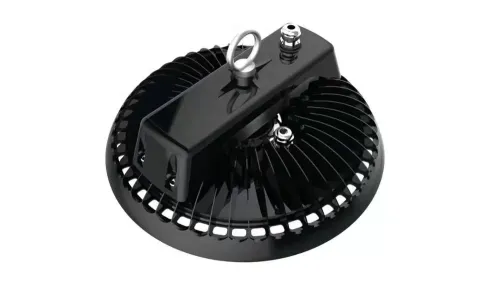

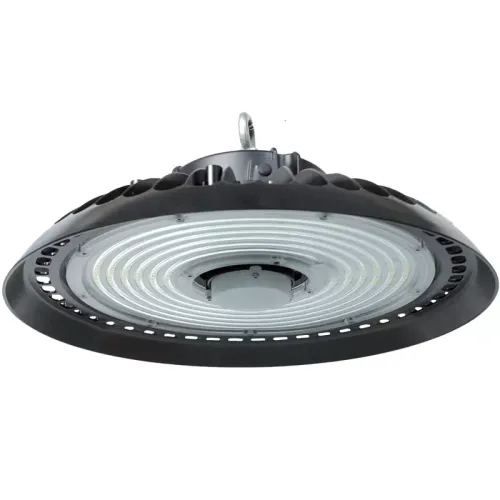

UFO high bay led lights



SUPER BRIGHT & HIGH PERFORMANCE - That is a staggering LED Efficiency of 133lm/w! Also, this UFO high bay has a 120 degree beam angle, which can be reduced to 90 degrees with the optional reflector.

WIDE APPLICATION - LED high bay is perfect for factory, warehouse, workshop, garage, backyard, supermarket, exhibition hall, stadiums and more. Also, the IP65 approved UFO high bay lights and optional accessories can be used in outdoor and indoor. The optional mounting bracket allows you to angle it to any angle.

EASY INSTALLATION & UPGRADE - Preinstalled hook and hanging loop allow for a easy and fast installation. Simply hang the UFO High Bay via the included ring attachment in the desired location.

HIGH QUALITY - Die-cast aluminum pure metal body has an impact-resistant, polycarbonate lens, which protects the LEDs from water, dust, and debris.









Installation












Applications



Industrial led high bay lighting Gymnasium, Sports Stadium Lighting, Park Lot, Square, Garden, Street Lighting, Supermarket, Billboard Lighting, Garage Lighting, Workshop, Factory Lighting, Warehouse, Storage Lighting, Yard, Station,etc







Packaging







Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
