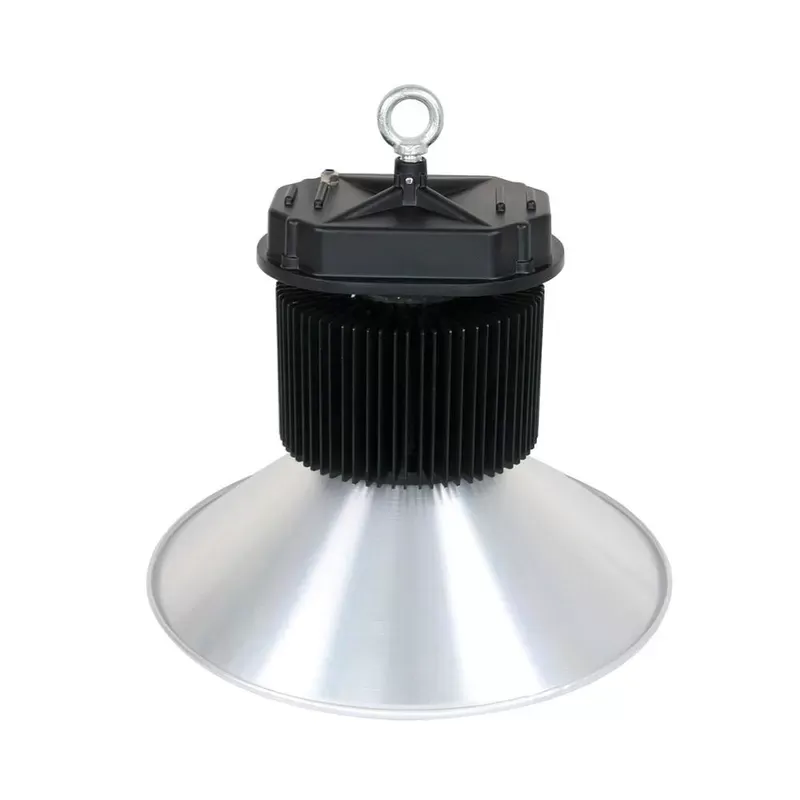

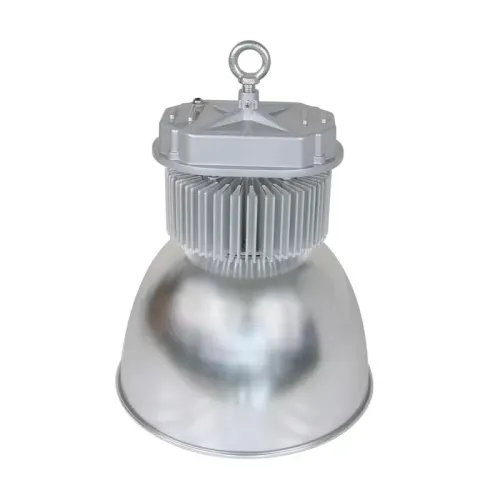

120w 150w 200w 250w 300w 400w Factory Warehouse Industrial Aluminium Industrial Led High Bay Light

200 watt led high bay light
  • Specification:
    Bridgelux Or Epistar Or CREE
    MEANWELL Or SOSEN
    Luminous Efficiency: 120LM/W
    50000 Hours(<10% Light Failure)
    WAREHOUSE
Description
Description

120w 150w 200w 250w 300w 400w Factory Warehouse Industrial Aluminium Industrial Led High Bay Light


Description

led high bay warehouse lights

1. Excellent explosion-proof performance, can be used safely in all flammable and explosive place.
2. Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.
3. Power supply key components adopt world brand, optimize the structure of heat dissipation, can guarantee the life of lamps.



Featurs


1. Using excellence inport semiconductor chip CREE chips, have high heat dissipassio performance, low luminous decay, pure color, no heavy shade etc, especiall light source can up to 120 lm/w of LED high bay light
2. Die cast allumum fixture with Vacuum phase-change radiator, has oustanding performance in thermel coductivity, samller and lightter than normal heat sink
3. Taiwan MEANWELL Driver, best quality stabel performance, waterproof.
4. Die cast fixture: Perfect die cast trearment process, beautiful appearance .
5. High purity aluminum reflector by anodic oxidation and polishing processing, the optimization of lighting performance at the same time, effectively reduce excessive light and glare
6. Certification: CE, PSE, ROHS



Specification

200 watt led high bay light

Item NO. MS-GK415-200W Color Temperature Warm white (WW) 2800-3000K/3000-3200K
Natural white (NW) 3500-4500K
Input Voltage AC 95-295V Pure white (PW) 5500-6500K
Frequency Range 50/60HZ Color Rendering Index WW Ra>75
Total Harmonic Distortion ≤ 9% NW / PW Ra>80
Power Factor >0.95 Average Luminance Beam Angle Height 7M Height 8M Height 9M
LED Quantity 200PCS (Accord to PW:5500-6500K) 85° 232.51lx 178.26lx 140.87lx
Working Voltage DC 45-50V   120° 145.06lx 111.22lx 87.89lx
LED Consumption 200W working temperature -30 ~ +50°C
System Consumption 200±5W Ambient temperature -30 ~ +65°C
Lens Optical glass lens IP Grade IP54/IP65
Beam Angle 85° / 120° LED working Life-span >50,000H
Luminous Efficiency 120±5% LM/W Color of lamp shell Silver/Black
Luminous 20000±5% LM Certificates CE, RoHS, PSE



Details

hanging high bay lights

1.Modular assembly design, support 100W ~ 500W products of heat, light weight, more solid structure, better heat dissipation.
2.Adjustable fixed bracket including, according to different applications at any time to adjust the angle.
3.Using pure copper riveting fin cooling technology, with excellent thermal conductivity to lead the light source heat radiation to the fins, to quickly reduce the light source temperature, extend the life of the effect of light source.
4.MeanWell driver and LED to ensure has long life span and high light efficiency.
5.CRI>80Ra, PF>0.9, high Performance.
6.IP67 design, suitable for indoor and outdoor.
7.Many beam angle is available, 45°, 60°, 90°. Light transmittance reach up 92%.








Patented thermal management design: PHASE CHANGE HEATSINK

This kind of aluminum housing is a heat sink with Vapor Chamber studded inside, perfectly combined the vapor chamber technology together with the traditional heat sink housing.
Structure of the temperature equilibrium cavity of this new housing is consisted of the heat sink's baseboard, heat plate, infused vacuum purification liquid, and the cavity's inner structure.

How does this system working?
The Liquid evaporating at the heat source inside the cavity, then diffuse in the whole space of the cavity, and congealed on the inner surface of the cavity, finally, the congealed liquid will flow back to the source by the structure of cavity and evaporation again. this system greatly improveds the heat dissipation efficiency.






1.Saving at least 80% power
2.Long working life up to 50000 hours
3.Environmental protection





Application

high bay led industrial 200w
Widely use in Factories, stadiums, golf courses, ships, airports, subways, commercial establishments, overpasses, outdoor advertising, landmarks and other panoramic lighting






Package

1.Normal Packing with canton(export packing), goods can be packed under the customer's requirement.
2.If it is fragile, we will provide wooden case to protect them, if ship by sea, shipping trays can be offered for customers.
1 Set = 2 Boxes (Lamp Base + Reflector). We will pack the reflector by wooden box outside to prevent damage and deformation in the transportation.



Why choose MINSENS

1. Strict QC system
Material
1). Inspect lamp shell with out any defective item, good heat dissipation
2). LED chips with Correct color temperature, CRI, lumen efficiency etc.
3). Driver with strict &long time test before application
Assembling
1). Strict QC system.5 tests/checks during their assembly in the lamps production and all product
2). Inspect again when the product be package
Ageing testing
1). Over 48 hours before shipment, confirm all quality well.
Shipping
1). Strong and professional package for safety transportation
2). Clear label Item show what is product in the cartons, include watts, CCT,
Dimming or not and quantity.
2. Professional service
1). Dialux solution for project with in 24hours(5 engineer for this job)
2). professional document and datasheet, nice picture for your market activities
3). Short leadtime, for you to get the lamps and show it to your clients easily
4).Excellent logistics service include the Strong package, fast delivery time, clear label. update tracking news in time
3. 5 years& 3 years warranty
1).long exact warranty, not just a word, it is from our quality confidence and responsibility to our customers,
2). the warranty is base on proof-document, don't need return the product
