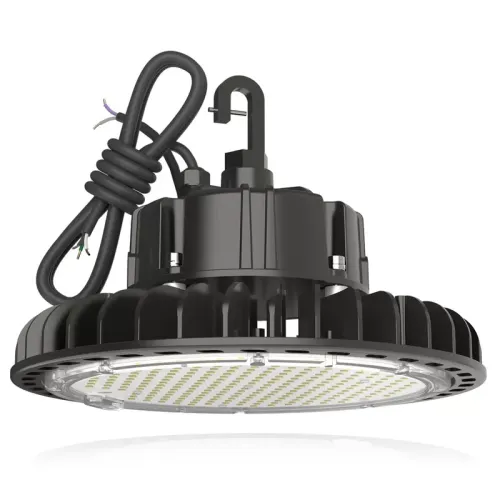

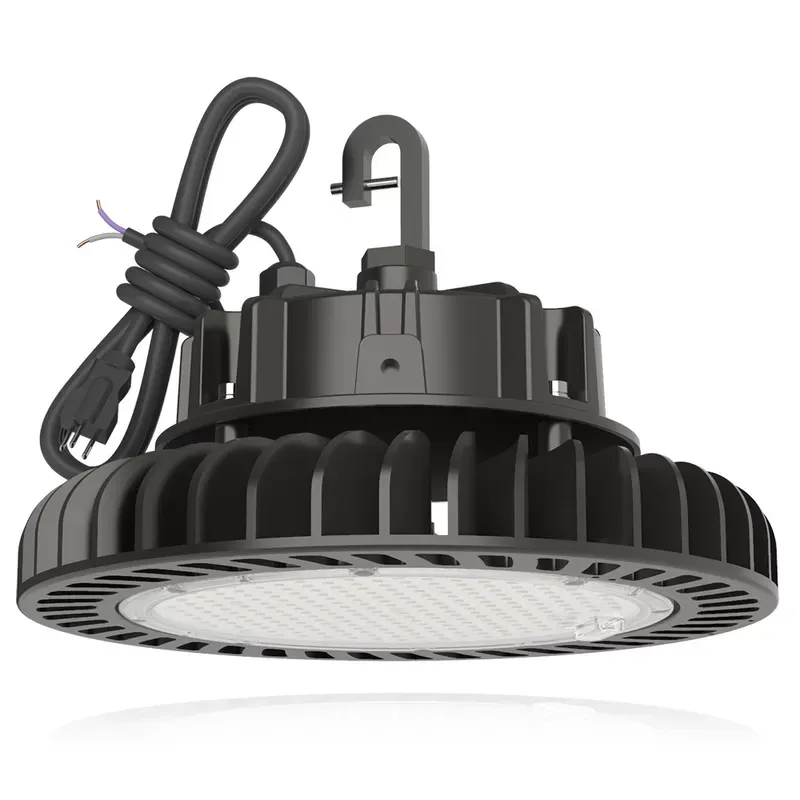

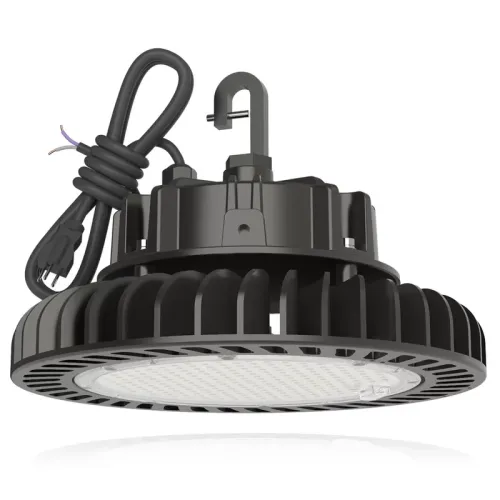

140lm / W Industrial IP65 Highbay 100w 150W 200W 250W UFO LED high bay light

100w 150W 200W 250W UFO LED high bay light
  • Product:
    ufo led high bay light
    ufo light fixture
    high bay ufo lights
    hyperlite high bay lights
Description
Description

140lm / W Industrial IP65 Highbay 100w 150W 200W 250W UFO LED high bay light




Features



led ufo high bay light



• Wholesale LED High Bay light, with plug-and-play sensor optional

• Power: 200W

• Dimension: 336*336*102

• Ra≥80:140Lm/w

• Environmentally friendly, no mercury, No UV, No IR

• 90° PC lens, PC & ALU reflector are optional

• IP65 rated ; for indoor use

• Energy Efficiency Grade: A+

• Quick Start instant 100% luminous flux

• Certificate: CE, RoHs

• Body: Aluminium alloy

• Stainless steel screws

• 5 Year Warranty



Specifications


ufo high bay led lights



Moder
HB-HB-100W
HB-HB-150W
HB-HB-200W
HB-HB-250W
Luminous
14,000lm
21,000lm
28,000lm
35,000lm
Efficacy
140lm/w
Color Rendering Index(CRI)
>70Ra
Beam Angle
120°
Color Temperature(CCT)
4000K & 5000K
LED
Lumileds 3030
L70@25°C
>60,000hours
Input Voltage
AC 100-277V
Diming
0-10V
Power factor
>0.9
Temperature
-40°F~122°F
Listing
UL & DLC
IP Rating
IP 65
Warranty
5 Years
N.W
2.3 kg
2.7 kg
3.3 kg
4.0 kg
G.W
3.2 kg
4.4 kg
4.5 kg
5.3 kg
Size
9.5"*6.8"
11.0" * 7.5"




Details





1. High brightnes LED chip: 3030 SMD.
2. Isolated constant current led driver,the light work stably.
3. With cover are good for leds protection.
4. Pf>0.95,CRI≥85, Luminous efficiency reach 130lm/w.
5. Waterproof IP65.
6. Deepen the aluminum fillister + intensive cooling hole for good heat dissipation.



· This product should be installed by a fully certified electrician in accordance with local building and electrical codes.
· Due to risk of electric shock, ensure that the main power source and circuit breakers are switched off before performing any installation or wiring procedures.
· Failure to properly support the fixture during installation may cause damage or injury, for which the manufacturer is not responsible. Ensure the light hook is securely mounted and will support the weight of the fixture.
· Disconnect product and allow cooling prior to any further steps.
· Please read the instruction manual before installation and keep it for future reference.













SMT
TECHNICAL SUPPORT
Longsun has introduced the advanced SMT surface assembly technology. The volume and weight of components using SMT technology is only about one-tenth of traditional plug-in components, and the end product has strong anti-vibration ability and high-frequency characteristics, which can effectively reduce electromagnetic and radio frequency interference.



PRECISION
PRODUCTION EQUIPMENT
All electronic products of Longsun must go through strict equipment testing before export. All components have passed GB /T10592 High and low temperature experimental technical conditions The national standard high and low temperature alternating damp heat test box is tested and then put into use





We have obtained
CUL, DLC, CE, RoHS, ISO9001 certificates

Selling well in all cities and provinces around China, our products are also exported to clients in US, Canada, Europe, Australia etc. Located in Shenzhen, with the big convenience of transport access, Long Sun provides you all kinds of fast delivery plan. We also established warehouse in US and CA which can offer high efficient delivery with lower shipping cost.





UFO high bay light Applies to shopping malls, office building, hotels, exhibition halls, conference rooms, hospitals, bedroom and other indoor place.




Packaging

Packing Material:Neutral packing with strong corrugated paper cartons, in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS



Support & Return Policy


The product can be returned within 30 days


WARRANTY:
Subject to the terms and conditions specified in this Limited Warranty, LONGSUN Lighting, is a business of High Bay Company, warrants that lights purchased directly from LONGSUN will be free from defects in material and workmanship until the earlier of five years from the date of manufacture, and 50,000 hours of operation.
REMEDY:
1. The product can be returned within 30 days from the date of purchase;
2. If the product has quality problems within 1 year from the date of purchase, LONGSUN will provide free repair service and free shipping both ways;
3. If the product has quality problems after 1 year from the date of purchase, LONGSUN will provide free repair service. Please contact LONGSUN in advance to obtain the repair address and return the product to the corresponding address at your own expense. LONGSUN will repair the product within 7-10 days of receipt of the product then the product will be returned. If there is an emergency, please note in advance.
Note: The buyer pays for shipping the product back and the seller will bear the cost of sending the product to the buyer after the repair is completed.);
4.If the malfunction or damage of the products is caused by transportation, the buyer needs to contact us and provide evidence(video & pictures)within 15 days from the date of receiving. Providing the buyer fails to do so or no longer replies us in 15 days after contact,the buyer will be responsible for any loss.
