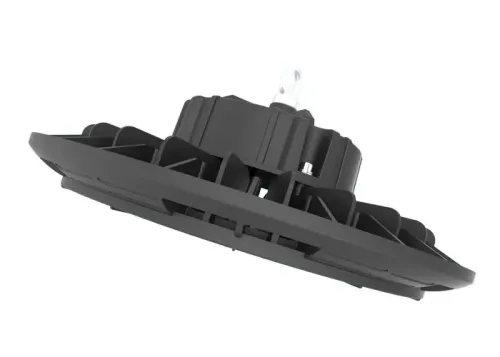

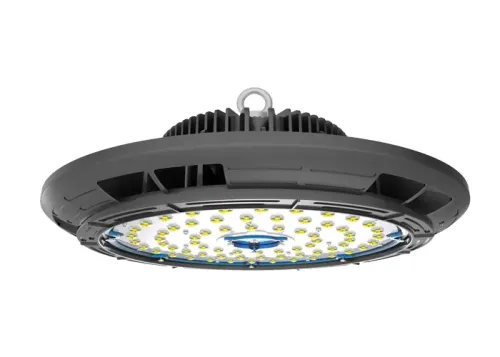

165lm/W 5 Years Warranty Ufo Led High Bay Light 200w ETL TUV SAA Certifications
Description
1. Refined aluminum die-casting cooling kit
2. 3030SMD chips Ra>80
3. Meanwell integrated driver
4. Indoor and outdoor use
5. Special optical design: 4 in one, 3 in one
6. Ultra-high luminous efficiency 165LM/W or more
7. 60W-250W is available
8. Lens angle: 60/90degree
9. Various installation methods: bracket installation, ring installation, connecting rod
10. ETL TUV SAA
Parameter
| The Specification of ufo led high bay light | |
| Item No. | UFO-A4 |
| Powder Consumption | 200W |
| Replace HID Lamp | 800w-1000w |
| Dimension/Heat sink | φ350*55mm |
| Package Size | 430x430x170mm |
| Lumous flux | 165lm/W |
| Power Factor | ≥0.95 |
| LED Power Supply | Mean Well driver or High quality driver |
| AC Input | AC180~305V (AC375V available on request) |
| DC Input | DC80~400V (DC12V, DC24V and other input available on request) |
| LED Light Source | 3030SMD |
| Color Temperature | 2700~6500K |
| Beam Angle | 60° / 90° available |
| Color Rendering Index | ≥Ra80 |
| Working Life | ≥50000Hrs |
| Working Temperature | -20℃~60℃ |
| Housing | Copper Free Aluminum |
| Warranty | 5-8 Years |
| Brand of Products | MS& Customized |
| Certificate | ETL, TUV , SAA , CE, ROHS |
| OEM | accept |
Details
Applications
Factory
Warehouse
Workshop
Storehouse
Hangar
Gym, stadium, exhibition hall
Gas station, toll station
Parking garage
Mall etc.
Packaging
1. Packaging:
Radiator box(Each box 1)
2. Quantity:1pcs/outer carton
Outer carton:430x430x170mm,material:K=K
Net weight:2.6KG Gross weight:3.4KG
Size of radiator:Φ350x55mm
