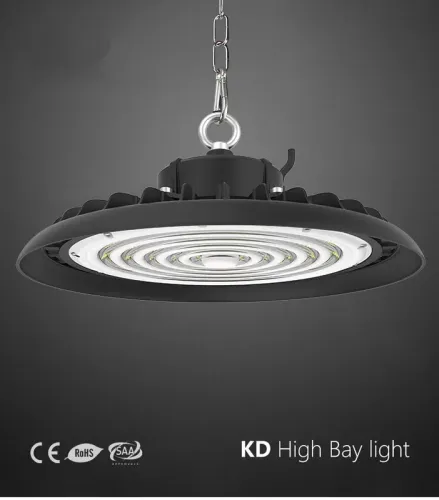

200 watt outdoor waterproof IP65 UFO led high bay light fixtures
G17 UFO led high bay light series industrial and mining lamp has very outstanding performance in the heat dissipation structure, optical design, appearance design, material selection and technology.
G17 UFO led high bay light series industrial and mining lamp widely used in factory, workshop, warehouse, exhibition hall, gymnasium, waiting room, station, mall, outdoor building etc. indoor or outdoor places. To create stable and high-quality light environment for indoor and outdoor places.
led ufo high bay light
Features
Placed 2PCS of high Lm flux chips what made by San'an, Epistar, Bridgelux, Cree and so on, into each SMD 3030 LED Bead. LM79/ LM80 listed, very low luminous decay. High CRI performance and high Lumen efficacy, available in White CCT 3000K to 8000K. With high thermal conductivity, ideal for different locations.
Optical Lenses
High transparent PC optical lenses make the light in different viewing angle. 60°, 90° or 120° is possible. Ideal for different location.
Radiator
High quality aviation-made of Aluminum, ADC12 through stamping, oil pressure, spinning and other processes integration innovation, efficient, economical lamp body, the body of lamp is lighter, corrosion resistance, color fastness, durability and better heat dissipation performance.
End Caps
304# stainless steel type end caps. Not only waterproof and dust proof, but corrosion resistance and durability as well.
Power Supplier
There are so many solutions about the power supplier for D.I.Y. Such as Linear, Non-isolated or Isolated, low PF or high PF, and so on.
It is possible to change the wires. Such as the length or wires and plug.
The Drivers what manufactured by 'MeanWell', 'MOSO' etc. are possible if you want.
Iron Hook
Rough iron hook, very solid and safe, not easy to loose. More assured.
Specifications

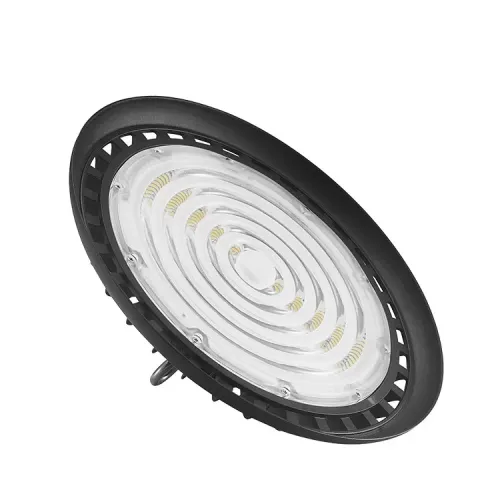

led ufo high bay light
| Power | 100W | 150W | 200W |
| Size | Ø258*149 MM | Ø299*154 MM | Ø347*159 MM |
| Package | 270*270*130 MM | 305*305*140 MM | 355*355*145 MM |
| Match the light source | 13000LM | 19500LM | 26000LM |
| Light Source | SMD | ||
| Input Voltage | AC220-240V | ||
| Material | Aluminum+PC | ||
| Beam angle | 60° ,90°,120° | ||
| IP Rating | IP65 | ||
| CCT | 3000K/4000K/6000K | ||
| CRI | Ra>70 | ||
| Protection Class | Class Ⅰ | ||
| Application | warehouse,carport,workshop,petrol station .etc | ||
| Warranty | 5 years | ||
Details

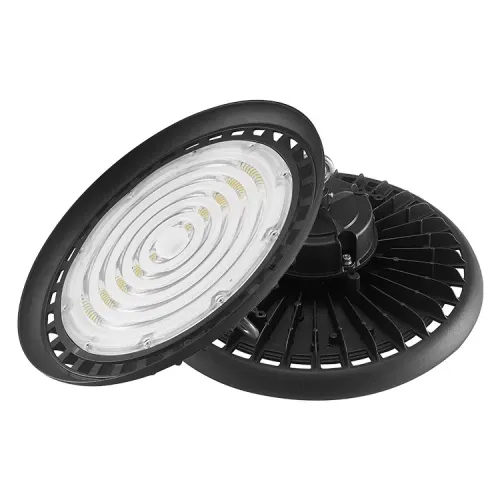

led ufo high bay light
1. Made of 1070 Pure Al. for maximun thermal transfer;
far more efficient than Al. Alloy material Die Casting;
2. Adopt Cold-forging craft, better than Die Casting craft;
3. Anodized surface finishing, color never fading, more
durable than painting process;
4. Self-moulding, offer you the best price;
5. Achieved higher wattage by slim size, easy installation;
6. Motion/Daylight sensor, Zigbee wireless control optional;
7. Aluminum Cover/PMMA cover for option;
8. Al. cover beam angle 45°, 90°, 120°, 10pcs /carton;
9. Choose 150lm/w 3030 LED and dimmable MW driver;
10. For indoor and outdoor IP65 protection;
Application
led ufo high bay light Widely used for Factories, workshops, gyms, warehouse, siaport, sport fied, toll stations, gas stations, stadiums, big supermarket, exhibition hall, commercial building, stadium hall, parking building etc
Packaging
Packing Material:Neutral packing with strong corrugated paper cartons, in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
Our factory
SMT
TECHNICAL SUPPORT
Longsun has introduced the advanced SMT surface assembly technology. The volume and weight of components using SMT technology is only about one-tenth of traditional plug-in components, and the end product has strong anti-vibration ability and high-frequency characteristics, which can effectively reduce electromagnetic and radio frequency interference.
PRECISION
PRODUCTION EQUIPMENT
All electronic products of Longsun must go through strict equipment testing before export. All components have passed GB /T10592 High and low temperature experimental technical conditions The national standard high and low temperature alternating damp heat test box is tested and then put into use
We have obtained
CUL, DLC, CE, RoHS, ISO9001 certificates
Selling well in all cities and provinces around China, our products are also exported to clients in US, Canada, Europe, Australia etc. Located in Shenzhen, with the big convenience of transport access, Long Sun provides you all kinds of fast delivery plan. We also established warehouse in US and CA which can offer high efficient delivery with lower shipping cost.
