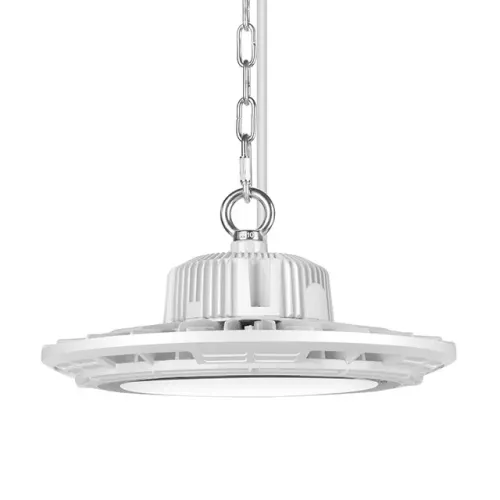

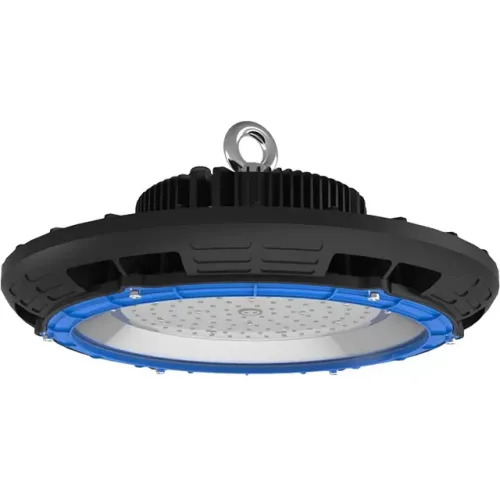

200w 150w LED UFO 100 Watt LED High Bay Lighting From LED Light Fixtures High Bay Factory

led ufo high bay light, dimmable high bay led lighting
  • Product:
    150w ufo led high bay light
    led high bay lights 200w
    150 watt led high bay light
Description
Description

200w 150w LED UFO 100 Watt LED High Bay Lighting From LED Light Fixtures High Bay Factory





Description





MINSENS Lighting’s HBI series of LED commercial low-profile highbay fixture provides a quick and easy solution for warehouse and industrial applications. The low-profile height allows for efficient packaging, as well as accomodates applications where a low hanging fixture is undesireable. Available in 120W, 150W, and 240W variants, designed to replace traditional 250W-1000W HID equivalent highbay fixtures. Fully sealed construction allows for wet location installation where direct contact with water is necessary. Light output is dimmable through standard 0-10v system control leads. Constructed out of heavy duty cast aluminum with an integrated thermally efficient heatsink profile, each fixture is rated for a mini L70 of 50,000 hours.





Features





ufo high bay light



1. High brightnes LED chip: 3030 SMD;
2. Mean Well driver, 5 years warranty;
3. PF>0.95, CRI≥85, Luminous efficiency reach 140-150lm/w.
4. Waterproof IP65. Black or White color is available.
5. 0-10V dimmable, DALI dimmable, motion sensor available.







Specifications



led ufo high bay light



Model
LED
Watt
Voltage
Lumen (lm)
CRI
PF
Beam Angle
IP
Radiator Size (mm)
HBI-60W-OM
Nichia 575
60W
90~305
9000
>70
> 0.95
60/90/120°
IP65
Φ310*145
HBI-100W-OM
Nichia 575
100W
90~305
15000
>70
> 0.95
60/90/120°
IP65
Φ310*155
HBI-150W-OM
Nichia 575
150W
90~305
22500
>70
> 0.95
60/90/120°
IP65
Φ350*165
HBI-200W-OM
Nichia 575
200W
90~305
30000
>70
> 0.95
60/90/120°
IP65
Φ400*176







Details



led ufo high bay light



1 60-240W with 140lm/W;
2 3030 SMD;
3  Sosen or Meanwell driver optional;
4  Beam angle 120°, 60°, 90° is optional;
5  Intallation: Hook mounted with safety string to make sure 100% safety ,Wall mounted with adjustable angle, pipe
6  Multi function: 0-10V, Motion sensor, Emergency are optional;
7  Multi reflectors: Balck & Silver aluminum reflector or transparent PC reflector






Installation











Applications



UFO LED High bay Lights widely used for the workshop, factory, garden, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other lighting places











Packaging



Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
