20kv Anti - surge Outdoor Ip67 Led Stadium Light 1000w Zigbbe Control

Led Stadium Light 1000w Zigbbe Control
  • Specification:
    Lamp Power: 300W 400W 500W 600W 750W 950W 1200W
    Input Voltage(V): AC100-277V
    Beam Angle(°): 20°
    30°
    40
    60°
    90°
    Driver: SOSEN Or MEANWELL Driver
    LED Source: 3030SMD Or OSRAM 3030SMD
Description
Description

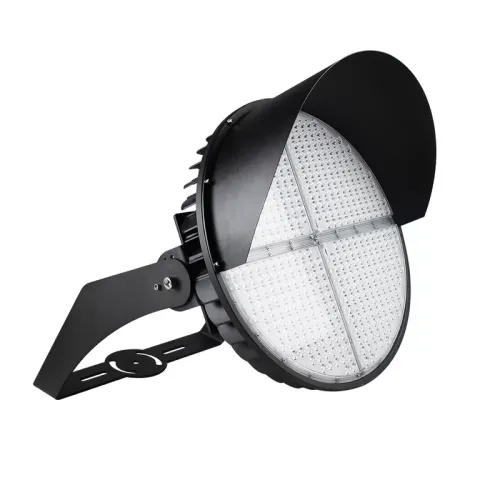

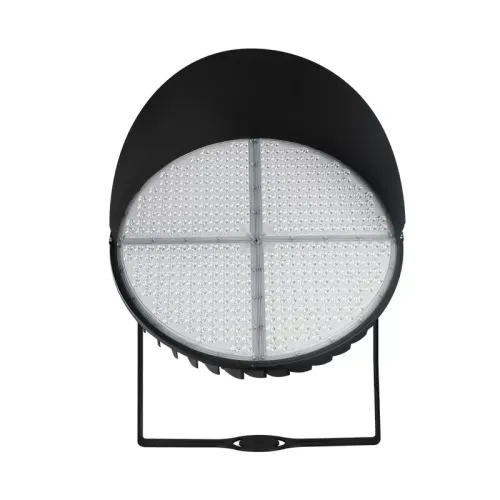

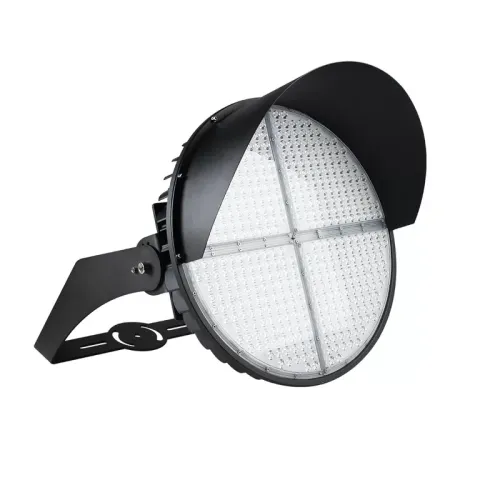

20kv Anti - surge Outdoor Ip67 Led Stadium Light 1000w Zigbbe Control







Features



300W 400W 500W 600W 750W 950W 1200W available.



New Round LED Stadium Lighting
Our new LED stadium lights 1000W is Low-profile, lightweight, powerful and reliable. Designed with high protection level up to IP67, High impact resistance, high vibration resistance and Anti 17-level wind power.

Wide wattage options of 300W 400W 500W 600W 750W 950W 1200W replacing metal halide/high pressure sodium of 1000~2500W with a 100,000 hours lifespan.

High lumen efficiency of up to 128LM/W, flicker free, and options of CRI>90, TLCI>90, meeting the lighting requirements of HD TV broadcasting for sports events.

The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs. Optimized engineered design, slim and lightweight, no clunky components, significantly reducing shipping and labor, and safer to use on your existing infrastructure.

Various distribution option for various applications, 20°*20° 30°*30° 40°*40° 60°*60° 90°*90° option.

Intelligent Zigbee controller, supports wireless on/off, dimming, color turning, grouping, status monitoring, remote control, all simply and easily via smartphone.





Specification



Power
300W
400W
500W
600W
750W
950W
1200W
Luminous Flux
38,486 lm
50,520 lm
56,614 lm
76,819 lm
84,374 lm
115,344 lm
134,087 lm
Gross Weight
13.7kgs / 30.2 lbs
14kgs / 30.9 lbs
14.1 kgs / 31.1 lbs
19.4 kgs / 42.8 lbs
19.5 kgs / 43 lbs
27 kgs / 59.5 lbs
28 kgs / 61.7 lbs
Input Voltage
100-277V/347-480V
Power Factor
>0.95
CRI
≥70Ra, or ≥90Ra
Driver
Meanwell
Light Distribution
20°*20° 30°*30° 40°*40° 60°*60° 90°*90°
Color Temp.
3000K/4000K/5000K/5700K/6500K (others available)
Dimming Options
0-10V dimming / Zigbee wireless dimming available
Zigbee Control
On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP).
Photocontrol
Twist-lock photocell available
SPD
20kV SPD standard (40kV optional)
IP Rating
IP67
Operating Temp.
-40°C- 40°C / -40°F - 104°F
Lifespan
>100,000 Hrs (L70 @ 25°C)
Warranty
7-year warranty for 100-277V version, 5-year warranty for 347-480V version
Certificates
UL/CB/CE/ENEC/ROHS/PSE/RCM/SAA/EAC/KC/BIS/Inmetro/TISI/NOM/SASO COC (pending)





Details







High thermal conductivity
We use A1070 pure Aluminum, with 223 w/m.k thermal conductivity (VS. Typical ADC12 Aluminum with only 98 w/m.k)







Slim and Lightweight
Optimized engineered design, slim and lightweight, no clunky components, significantly reducing shipping and labor, and safer to use on your existing infrastructure.









Extraordinary Thermal Management
The professional and unique pin heat sink design creates superb ventilative efficiency. Air is freely flowable among the pins in any direction, maximizing heat dissipation and lifespan of the LEDs.







Intelligent Zigbee controller


Intelligent Zigbee controller, supports wireless on/off, dimming, color turning, grouping, status monitoring, remote control, all simply and easily via smartphone.





Three installation ways optional for LED stadium lights 1000W





Applications



LED stadium lights 1000W is Idea for outdoor and indoor sports arenas and stadiums, indoor sports halls, etc.





Packaging



Standard export packaging, 1pcs / carton
