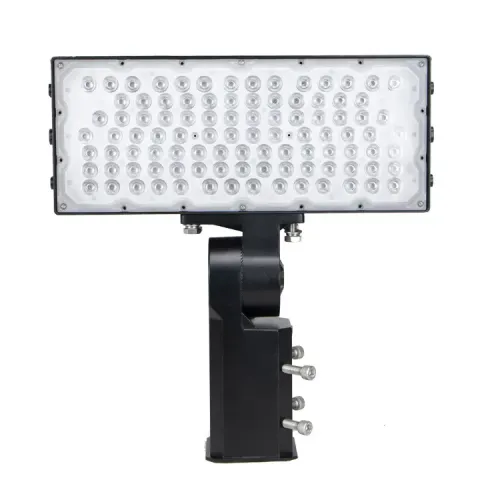

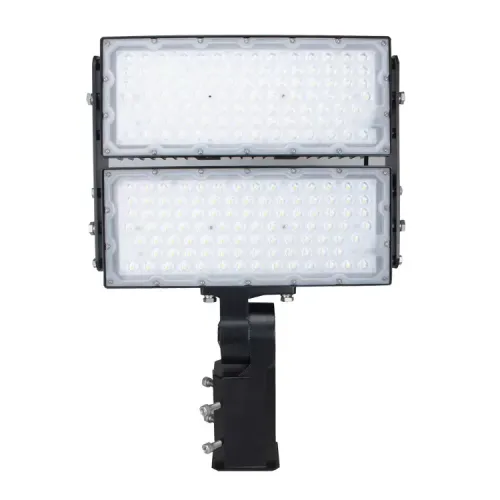

250W 500W 750W 1000W IP65 Outdoor High Mast Led Stadium Lights For Football Stadium

250W 750W High Mast LED Stadium Lights , Energy Efficient Flood Lights For Football
  • Specification:
    Lamp Power: 250W 500W 750W 1000W
    Input Voltage(V): 90-277VAC
    Luminous Efficiency: 140LM/W
    Beam Angle(°): 10° / 25° / 60°
    Driver: Meanwell ELG Or XLG
    LED Source: Lumileds 5050
    Warranty: 5 Years
Description
Description

250W 500W 750W 1000W IP65 Outdoor High Mast Led Stadium Lights For Football Stadium




Features



High Mast LED Stadium Lights For Football Stadium



1.Adopting led light sources and PMMA lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%;
2.With good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long lifespan and high stability of the products;
3.Durable lights with long life span up to 50000 hours;
4. Green environmental protection, no UV light and infrared radiation, no mercury pollution;
5. Nice appearance and non-fouling properties, Protection class IP66;
6. Work without strobe, fast transient response;A wide range of working voltage;
7. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost;
8. A variety of light distribution design to meet a variety of outdoor lighting requirements, 10°/25°/60°;
9. Two types base bracket mounting methods;




Specification

High Mast LED Stadium Lights For Football Stadium



Power 250W 500W 750W 1000W
Replacement HPS 800W HPS 1500W HPS 2500W HPS 3000W
Luminous Flux 35000LM±5% 70000LM±5% 105000LM±5% 140000LM±5%
Beam Angle 10°/25°/60°
Light Source 5050 SMD
Luminous Efficacy >140lm/w
IP 65
Voltage 100-277VAC/50-60HZ
CRI 75
Operation Temp. -40 to +45℃
CCT 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW
Life Span 50,000 hours at 25℃
Dimming Available
Cover Transparent, Matte, Lens available
PF >0.95
Warranty 5 Years





Details


High Mast LED Stadium Lights For Football Stadium









With two ways of installation, suitable for varies application, black color housing and beauty designed.
There are 10°, 25°, 60° beam angle options for the Lens










Product Details-heat disssipater
Scientifically-designed heat dissipater with much better cooling effect.

High luminous efficiency, Whole lamp output light efficiency >140LM/W







High quality power supply, input voltage 95-295V. The power efficiency is more than 90%, power factor greater than 0.98, CE,ROHS, EMC, LVD, ISO9001 compulsory certification.









1. More suitable to north American Market appearance design.
2. IP66 waterproof design protect the lamp better.
3. Every unit is 250W, heat sink independent design makes ventilation.
4. Not only for stadium lighting, but also can use as high-pole lamp.
5. 20KV surge protection.
6. Lighter weight, smaller volume save freight cost. More safty during using.
7. CREE LED has better heat dissipation, provide 140lm/w.
8. MEANWELL driver with 5 years warranty.
9. 10° / 25° / 60° beam angle for option.
10. ETL/DLC/CE/ROHS/LM80 certification.
11. IES files are available.








Factory









Applications


High Mast LED Stadium Lights For Football Stadium can be used in Golf course lighting, Stadium lighting, Tennis court, Basketball court, Football field, Square, Station, Outdoor parking lot etc flood lighting or high mast lighting area.








Packaging


1 unit per Neutral packing box

Standard export packaging
