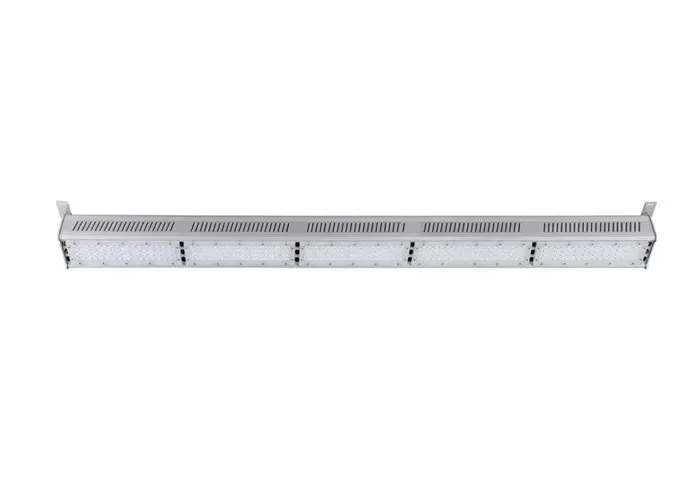

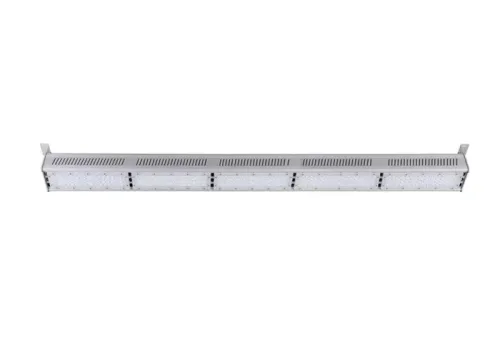

3030SMD Chips 200W LED Linear High Bay Light ETL CE RoHS 5 Years Warranty

Industrial High Bay LED Lighting Fixtures
  • Specification:
    Watt: 200W
    Input Voltage: AC100-277/347/480V
    Lumens: 22000Lm/W
    Waterproof: IP65
    CCT: 3000K 4500K 6500K
    Watt Available: 50W - 500W
    Installation: Surface Mounting/Suspend
Description
Description

3030SMD Chips 200W LED Linear High Bay Light ETL CE RoHS 5 Years Warranty





The Linear LED High Bay Light is ideal for replacing convertional fluorescent fixture in warehouses and other large spaces. The Linear LED High Bay Light accepts 120-277V,347VAC 50/60Hz, three categories 100W,160W,200W,and have the high lumen efficiency up to 130lm/W. With well-distributed and soft light, high stability, long life, elegant and extremely professional design, this Luminaries is regarded as the leading of green Lighting for commercial and residential uses.



Features



1. IP65, water-proof, dust-proof, moisture-proof.
2. 100-150 lm/w
3. Meanwell driver (dimmable, 100-277V,200-480V , montion sensor and emergency available)
4. No flicker or buzz
5. m to 12m application
6. Versatile, trouble-free installation: linkable, rotating, suspended, ceiling.
7. 5 years warranty
8. UL,CE,RoHS,VDE approved





Specification



Item Name Linear 200W LED High Bay Light
Power 200W
Led Chip
Driver LUMILEDS / Meanwell / SOSEN Driver
Input Voltage AC 90~305V
Light Efficiency 120 lm/w
CRI Ra=70 or Ra =80
Power Efficiency >93%
Power Factor >0.95
CCT Warm White / Pure White / Cool White
LED Life Span About 50,000 hrs
Working Environment -40°C~50°C
Certification CE ROHS DLC ETL SAA
Material Aluminum
OEM Service Accept, With Customized Colors, Design





Details



LED chips SOURCE


The Linear LED High Bay Light are utilizing 3030 luminous source, providing excellent lumen output - up to 120 LM/W, long-lasting stability and best sight.

Each LUXEON 3030 owns eletrostatic protection component, maximally avoid the damage of electrostatic.

LED DRIVER

Full Range of Linear LED High Bay Light are utilizing MEANWELL (build-out), optimal operation stability, lifespan and performance.

MINSENS LED MODULE



MINSENS original patent design with powerful thermal performance, as well as IP66 waterproof.
1. Specific holes at the end-cap for air convection.
2. Connector between fixtures, so angle can be adjusted depending on the occasion.Adjustment range: -15 to + 15 °.
3. Wavy fins design for the heat sink.Heat conduction area is enlarged to get excellent heat dissipation.
4. High transparency toughened glass, corrosion resistance, shock resistance.





Applications



1. Warehouses, factories & food storage
2. Car parks & sports facilities, gas station
3. Shipping centers,hospitals, universities etc







Packaging



Standard export packaging or customized according to customer requirements
