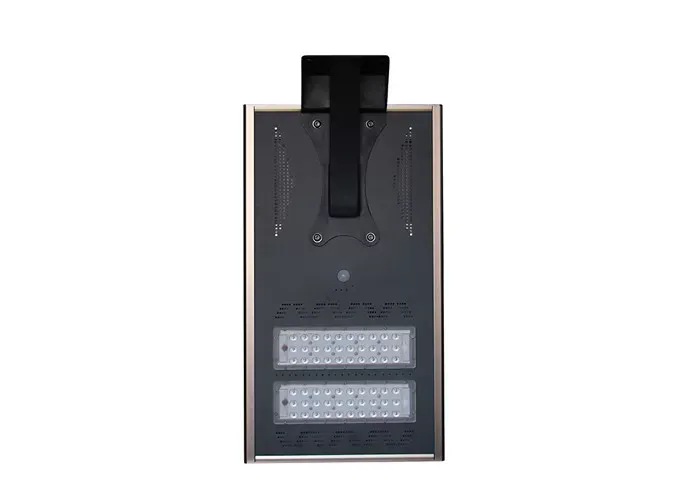

40W Road Lighting Project All In One Integrated Solar LED Street Light With Smart Control System

All In One Integrated Solar LED Street Light
  • Product:
    All In One Integrated Solar LED Street Light
Description
Description

40W Road Lighting Project All In One Integrated Solar LED Street Light With Smart Control System





Description



All in one solar street light absorbed from the inspiration and energy of the universe,Is a blend of the best green energy today( solar energy /semiconductor led source / Lithium battery ).
l Using the micro controller, thermal infrared human body induction and a number of outstanding practical control technology, combined with the simplicity of an integrated structural design, perfect realization of low power consumption, high brightness, long life maintenance free and so on many kinds of performance requirements, also waterproof and heat dissipation performance is also very good .




Features



1. First integrated design, simple, stylish, lightweight, practical ;
2. Adopt solar power energy to supply and save energy ,Protect the earth’s resource;
3. Adopt Human body induction technology, People coming(100% power working), People leaving(20% power working) and expand the working time;
4. Adopt The control system have energy balance function ,when system induce the power is not enough Itself reduce the power source automatically but stay lighting, Less power ,Less Brightness
5. Adopt high capacity and long time use Lithium battery ,make sure the lighting using life;
6. No Need cable connection , so convenient to installation it;
7. Waterproof structure and safe,reliable;
8. Adopt aluminum alloy as main structure body with a good rust and corrosion resistant functions
9. Scope of application: remote mountainous areas, rural trails, tourism temporary lighting, schools, communities, garden lighting and other places of adequate sunlight.





Specifications



Product Name 40W Integrated solar led street light
Model: MS-SLL-40(With Sensor)
Solar panel Max power: 18v 36w(Efficient solar panels)
Solar panel Life time: 25 years
Battery Type: Lithium battery12V20AH
LED Max power: 40W
Led chip brand:
Lumen (LM): 110-120lm/w
LED Life time: 50000hours
Lighting Viewing Angle: 120°(bar wing street light distribution )
Visual distance >800m
Charge time(by sun): 6-7hours (with enough strong shine)
Working TEMP( ℃ ) -25~+65℃
Warranty period: 3 years
Sensor distance 8-12m
Mounting height(m): 6-10m
Space between light(m): 20-25m
CCT (k): 6500k-7000k
N.W / GW.for carton: 9.8KGKG / 11KGKG
20GP container / 40GP container: 395pcs / 825pcs
Unit size 700*355*144mm
carton size 750*415*220mm
Working time : The lamp attomatically turns on after sunset ,and off when sunrise.
Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .





Details



Hidden radar sensors, simple and beautiful, integrated design of the driving radar, sensitive, accurate and sensitive, and no fear of environmental temperature changes.
1. Active detection : With energy balance function :When power is not enough, The control system itself induce less power energy by itself ,will reduce working power brightness, Less energy ,less brightness gradually ,But still working lighting.
2. Intelligent Induction sensor (hidden not exposed) : More Save Energy
Condtion1 : when people/cars/animals coming 100% Power working
Condition2: When people/cars/animals leaving,20% Power working
3. No cable connection design (system working ) and easy installation
4. Waterproof /aluminum alloy made/Anti-rust /corrosion resistant
5. Top grade LiFePO4 lithium battery made system/long time using










Applications



The All-in-one integrated solar street light can be installed in all streets, auxiliary roads, paths in residential subdistricts, mine areas, non-electricity zones, parks, parking lots and villages to provide light, and the solar panel can charge the battery to satisfy the need of lighting.







Packaging



Standard export packaging or customized according to customer requirements.
