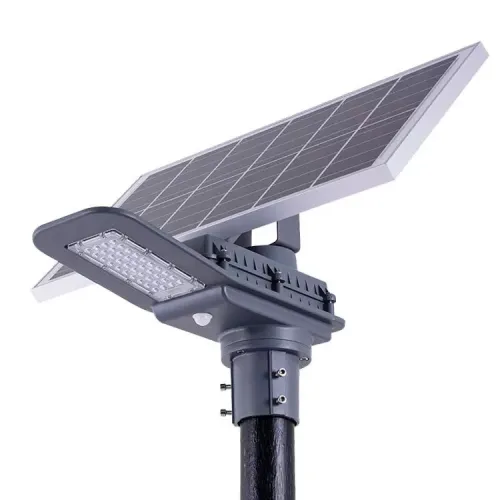

5-7m Pole Intelligent Solar Panel Powered Outdoor Led Street Garden Light With Motion Sensor
Features
solar powered led outdoor lights
1.No power outages
2.No monthly electric bills
3.Independent power and light source
4.Battery backup for cloudy or rainy days
5.Controlled charging to prolong battery service life
6.Long-life PV modules with 25 years of power generation capacity**
7.Self-contained solution – Light on/off controlled by automatic sensor
8.IP grade Luminary ensures long lasting and consistent high performance
9.Environment friendly – 100% powered by the sun, reduce petroleum consumption, eliminating pollution
Specifications
| Model | TZ Semi Integrated Solar Powered LED Outdoor Lights | ||
| Power | 50W | 50W | 60W |
| Solar panel | 50W/18V | 60W/18V | 100W/18V |
| Battery | 40000MA/6.4V | 40000MA/6.4V | 60000MA/6.4V |
| Installation Height | 5-6m | 5-7m | 5-8m |
| Irradiation area | 150-200 | 150-200 | 150-200 |
| Light Source | OSRAM SMD 3030 | ||
| Beam angle | 70°*120° | ||
| CCT | 3000~6000K | ||
| Controller | MPPT Intelligent Controller | ||
| Working temperature | -20~+50°C | ||
| Certificate | CE,ROHS,SAA etc | ||
| Warranty | 3 years | ||
| Application | villa,school,country,countryside,rural area,community, | ||
| villages and towns | |||
Details
Polycrystalline Solar panel
1. 15% photoelectric conversion efficiency
2. Tempered glass cover
3. 20-25 years lifetime

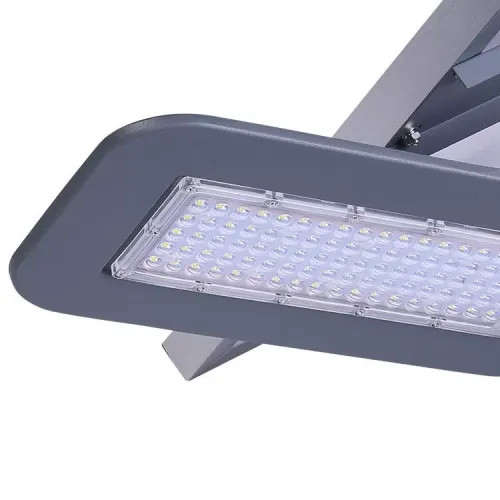

Super bright led chip
Bridgelux USA
2. Bat wing with polarized
3. 3000-6500K
4. Lifespan: 50000hrs
Ternary lithium battery
1. High capacity
2. No pollution and stable
3. 5-8 years lifetime, ≥1200 times charge & discharge
4. High temperature resistance
Remote control
1. Wireless control,
2. Combine light control/time control/motion sensor together
3. Four smart working modes for choice
4. Demo for testing use
Motion sensor function
1. 10meter sensor area
2. React time 20seconds
3. Higher sensitive than PIR sensor
The angle can be adjusted to facilitate the installation of different latitudes the solar energy can be received better
Integrated design
Convenient installation
Components are easy to change
Cost savings
Solar panel conversion rate>18%
PIR motion infra-red sensors and intelligent controller, to ensure the effect of the lamps and lanterns lighting ability
Professional heat dissipation design
Professional waterproof design
Ip66 protection grade
Using special joint with the meter and the wrong and other functions
Using rotating lamp arm to multi-angle adjustment, it is suitable for different latitude regions and different forms of light pole installation requirements
Applications
The Street Light With Solar Power Can Widely Application At:
Courtyard / Garden / Park / Street / Roadway / Pathway / Parking Lot / Private road / Sidewalk / Public square / plaza / Campus / Airfield / Farm & Ranch / Perimeter Security / Wildlife area / Remote Area / Military Base
Packaging
Standard export packaging or customized according to customer requirements
