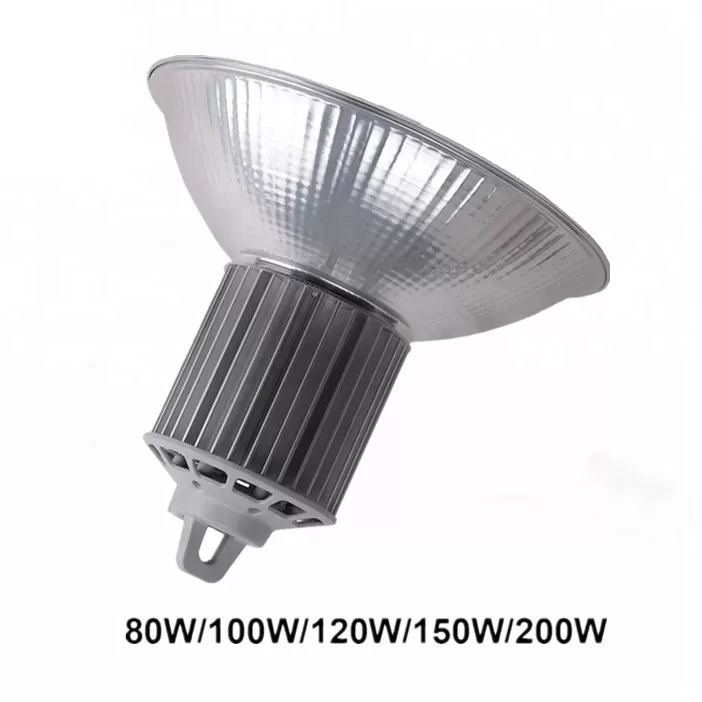

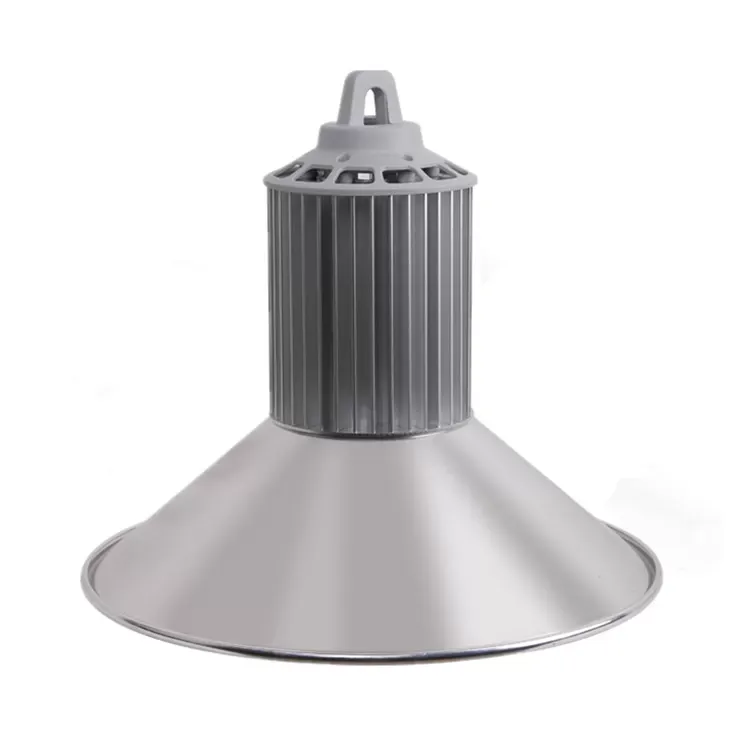

5 Years Warranty 200w 150w Die Cast Aluminum LED Industrial High Bay Lights
Featurs
led high bay lighting high power luminaire
Low power consumption. More than 60% energy saving compared to conventional HID lamps.
Environmental friendly.
Lead and mercury free.
Long operation life time, above 50,000 hours.
Low maintenance costs.
Universal input 85-265VAC, 50/60Hz.
Instant ON/OFF operation.
Superior color rendition compared to conventional industrial luminaire.
Selectable color temperature
Patented single piece 20W-120W high power LED light source with unique multi-chip integration design ensures high light purity, high heat conduction and slow brightness derating.
Unique heat sink design ensures superior heat management.
Specification
industrial high bay led lighting fixtures
| Power | Dimenssion | PCS | Illuminant | Efficacy(lm/w) | Angle | Ra | Warranty | Voltage | IP |
| 60w | 530*530*350 | 4 | EMC3030(22*35) | 120 | 45/60/90/120 | 80 | 5 | 90-305V | 44 |
| 100w | 530*530*385 | 4 | EMC3030(22*35) | 120 | 45/60/90/120 | 80 | 5 | 90-305V | 44 |
| 150w | 530*530*415 | 4 | EMC3030(22*35) | 120 | 45/60/90/120 | 80 | 5 | 90-305V | 44 |
| 200w | 255*255*435 | 1 | EMC3030(22*35) | 120 | 45/60/90/120 | 80 | 5 | 90-305V | 44 |
| 250w | 300*300*420 | 1 | EMC3030(22*35) | 120 | 45/60/90/120 | 80 | 5 | 90-305V | 44 |
| 300w | 300*300*460 | 1 | EMC3030(22*35) | 120 | 45/60/90/120 | 80 | 5 | 90-305V | 44 |
Details
high bay led industrial 100w
1.Adopt Epistar or Bridgelux more than one chip integrated encapsulation light source, with the advantages of high luminous efficiency, high color index, little light decay;
2.Built-in high-performance LED lamps special power supply, AC85 ~ 265 V input, efficiency > 87%, PFC > 97%, constant pressure constant flow control, protection of over voltage, over load, over current , lightning prevention function;
3.High thermal conductivity aluminum alloy radiator, high quality aluminum alloy electrical box, good heat dissipation, high strength, protection grade have IP32 and IP65 two choose; Small reflective cup focusing, big reflectors to collect the light to achieve the ideal lighting effect;
4.1-3 seconds starts faster, no stroboscopic, anti-jamming and contains no mercury and other harmful material, energy conservation and environmental protection green lamps and lanterns;
Application
led high bay warehouse lights Apply to workshop, factory building, warehouse, highway toll stations, gas stations, supermarkets,exhibition halls, stadiums and other places of lighting required.
Installation
Package
Standard packing, Neutral export packaging.
