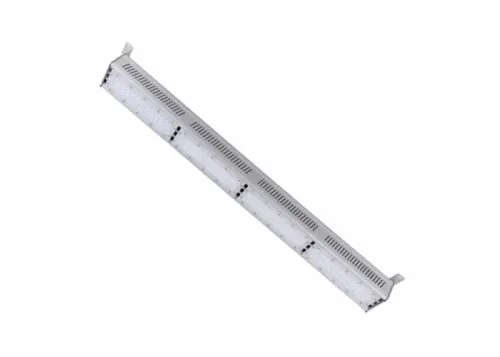

5 Years Warranty Factory Warehouse Industrial Linear 200W LED High Bay Light
Features
1. Universal AC input 90-305VAC 1500mm linear ufo highbay light
2. Loop hang and wall mount for convenient installation and maintenance
3. Unique heatsink design for stable product performance
4. Bulit-in active PFC function
5. Patented design + Brand driver+ Brand LED
6. Product automatic protection (OVP OLP OTP OCP)
7. Water proof IP65 rate linear highbay
8. 50w-240w linear LED High Bay Light.
9. The house is with high thermal conductivity, with heat evenly and IP65 waterproof.
10. High efficiency 3030smd,170lm/w;UL listed driver
11. Light sensor+dimming are both available.
12. Various degree beam angle to meet customers' different requirement
13. Small size,light weight,reduce transportation costs
14. 5 to 7 years warranty
Specification
| Model | MS-LHB-200W |
| Power | 200w |
| More Power Option | 30w 60w 80w 100w, 150w, 200w, 250w, 300w 350w 400w 450w |
| Input Voltage | 100-305VAC |
| Frequency | 50-60HZ |
| Color | 3000K-6500K |
| Luminous | 22000lm |
| Efficacy | 115-140lm/w |
| CRI | >80 |
| Power Factor | 0.92 |
| Lifespan | 50,000 hours |
| Waterproof Rate | IP65/ Wet location |
| Beam Angle | 60°/90°/120° |
| Operating Temp. | -30°C~40°C |
| Warranty | 5 Years |
Details
LED
SMD3030 led, LM-80 standard, High lumen 110-140lm/w
Lens
PC material 90/ 40*70/ 70*145 degree beam angle
Driver
Original Taiwan Meanwell HLG series driver,
7 years warranty
IP65 waterproof
Heatsink
The housing is extrusion aluminum production process,better heat dissipating performance,and more slim,more light,more design popular,much more LED chip quantity to make make light higher lumen effeciency. slim and light design housing could save your shipping space and cost.
Perfect lighting cover
This is lighting distribution for your kindly reference
Our Linear high bay light with 90°/145*70°/100*65°
beam angles, meet different using enviornment.
Applications
linear LED High Bay Light can be widely used in Factory, Miner Enterprises, petroleum chemical plant, Warehouse, Supermarket, Exhibition Hall ..etc. etc. Can work also as wall pack and tunnel light
Installation
Packaging
Standard export packaging or customized according to customer requirements
