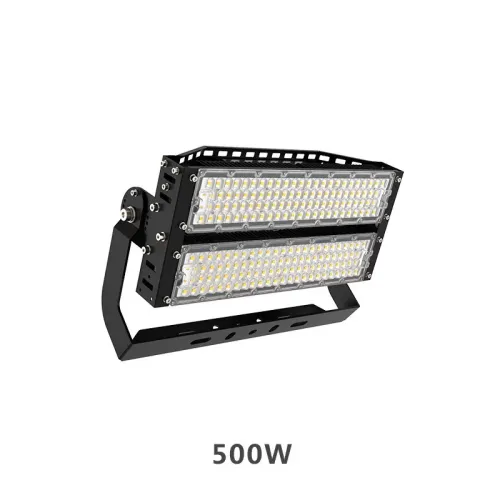

5 years warranty led outdoor stadium light 1500W LED Sport Field Lighting

Sports Field 1500W 225000lm Industrial LED Flood Lights
  • Specification:
    Item: LED Sport Field Lighting
    Lamp Power: 500W 750W 1000W 1500W
    Input Voltage(V): 90-277VAC
    Luminous Efficiency: 140LM/W
    Beam Angle(°): 8° / 20° / 40° / 60°
    Lamp Body Material: 1016 Aluminum
    Driver: Meanwell ELG Or XLG
    Application: LED Sport Field
Description
Description

5 years warranty led outdoor stadium light 1500W LED Sport Field Lighting




Features



This is a latest design with simple and novel appearance for commercial or industrial lighting. The shell is pure aluminum 12# with anti-pressure, high-strength, and anti-corrosion, and PC cover, waterproof IP65. It adopts constant current isolated MeanWell driver.



1.Unique design

2.Modular design, free combination of full power, more convenient maintenance and management

3.Perfect light control, brightness uniformity can reach 0.8, creating a safe and comfortable lighting environment

4. There are four lamp beads in one lens, which has better lighting effect.

5. High light transmittance, small light attenuation, prolong life, more than ten years life






Specification



LED Sport Field Lighting
Power Lumens Net weight Net weight Outer Carton
500W 75000lm 12.8kg 14.5kg 475*685*210mm
750W 112500lm 17.2kg 19.5kg 625*685*210mm
1000W 150000lm 22.0kg 25.0kg 765*685*210mm
1250W 187500lm 26.5kg 30.0kg 905*685*210mm
1500W 225000lm 31.2kg 35.0kg 1045*685*210mm





Details


LED Stadium Sports lights



1. It is of IP Rate 65, which means its excellent performance in waterproof.
2. Energy Friendly. LED flood lights eliminate the need for frequent bulb replacements, and you can save as much as 80% on electricity costs.
3. Long life. In an average, these bulbs last for up to 10 times longer than incandescent, halogen or fluorescent lights.
4. Free of Mercury, Lead and Carbon Emissions.
5. Low Maintenance and Replacement Costs.
6. Unaffected by Weather and Temperature Changes. LED flood lights are impervious to temperature fluctuations and environmental conditions.
7. Low maintenance costs thanks to long lifetime.










Lens: 10, 25, 45, 60 degrees


1060 Aluminum
Commercially pure aluminum, high aluminum content and purity, high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.



±30˚Angle adjustable
Each module adjusted ±30° positive and negative.


±360˚Angle adjustable
The whole lamp can be adjusted 360°,and we mounted anti-skid teeth on the bracket.


Waterproof connectors
The power connectors on all our lamps are IP68 waterproof.


Power wire
The power wire implement Europe standards, brown is L, blue is N, and yellow-green is ground.


Rotatable bracket
Optional Rotatable bracket can be adjust horizontal plane angle when you mounted lamp.


Driver Box
Intelligent temperature control branded driver used with 5 years long time warranty, aluminum drive house with IP67 waterproof, and it can fast conduct the heat from the driver to be out.





Factory






Applications

1500W LED Sport Field Lighting widely used in square/plaza, wharf, Stadium, construction sites, stations, soccer, subway/metro, airport, sculpture, lawn, yard, workshop, supermarkets and factory etc.







Packaging


1 unit per Neutral packing box

Standard export packaging
