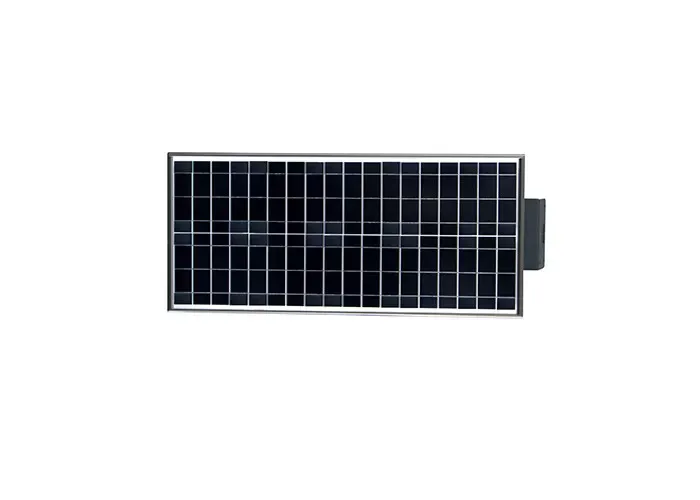

All In One Solar Street Light 60W Motion Sensor Street Lamp With Smart Working Mode

all in one solar street light,all in one solar street light manufacturer,30w all in one solar street light,60w all in one solar street light
  • Product:
    All In One Solar Street Light
Description
Description

All In One Solar Street Light 60W Motion Sensor Street Lamp With Smart Working Mode





Features



All-in-one design
A new revolucionary product combining solar and LED technology . The best solution for all these areas that doesn't have electricy supply,remote places with no good communications,and all the areas with electricity supply but with good climatology .The system charges the battery during the day and illuminate at night . Due to the use of LED technology,is able to maximize all the solar energy and illuminate the environment with radiant light.
The solar panel will receive the solar energy and be stored in the Lithium-Iron battery through the charge controller,to finally be used to illuminate at night . Due to the use of high-end LED technology,the solar light will be 100% optimized .



Solar Panel
Poly / mono- crystalline cell panels both available.
A grade cells adopted to create higher efficiency.
High light transmission, low iron.
Tempered glass, anti-aging.
Strong structure to withstand high wind pressure, hail and snow load.
High compact resistant aluminum alloy frame.



Battery
Top grade lead materials, purity near 100%.
Contains nano-scale gel electrolyte.
Deep cycle and maintenance free.
Low self-discharge.
Deep discharge resistant.
Sealed without electrolyte leakage.
Superior performance in high and cold environment.


Street pole
Finish: Black; hot dip-galvanized (HDG) only; HDG plus powder coated
Galvanization standard: ASTMA123/EN ISO1461
Welding: AWS D 1.1/BS EN 1011-1,BS EN 1011-2
Design: We have our standard pole with our design, OEM and ODM is also acceptable
Package: Standard seaworthy
Delivery time: with two weeks after confirm the order.
Thickness: 1mm to 4mm



Solar street lamp
Lamp Body: Die-Casting Aluminum. Corrosion Resistant
Application with Polyester Substance in its Surface.
Implement of Reflect: Made of High Purity Aluminum.
Cover: High Strength and High Transparent Toughened Glass
Fastener Bolt and Screws: Stainless Steel
Arm Diameter: 48 - 60mm
IP66



Solar charge controller
Protection grade: IP68, effective dust-proof and water-proof
Type:PWM For good Sun Condition Area like Africa & MPPT wtih high efficiency for countries like Canada with bad sun condition in winter.
Single and double street light output control flexible
Dimmable &Human Sensor are avaliable.
LED status indicate





Specifications



All In One Solar Street Light 60W Mounting height:8-9M
Solar panel Max Power 18v 45w(Efficient solar panels)
Life Time 25 years
Battery Type Lithium battery12V25AH
Life Time 3-5 years
Led lamp(with sensor) Led chip brand
Lumen(LM) 6000-6600
Life Time 50000 hours
Color Temperature(CCT) 6000K-6500K
Lamps material of main aluminium Alloy
Working model motion sensor,time control,montion sensor+time control
Charge time 10 hours(by sun)
Discharge time 12 hours and 5-7 rain days
Certificate CE/ROHS/TUV-IP65
Warranty period 3 years
Packing& Weight Product Size 834*355*156mm
Product Weight 11.5KG
Carton Size 880*415*230mm
GW.for Carton 12.5KG
Quantity/Carton 1sets/carton
Packs Containers 20GP 320pcs
40GP 666pcs









Applications



Streets, gardens, roads...







Packaging



Standard export packaging or customized according to customer requirements.
