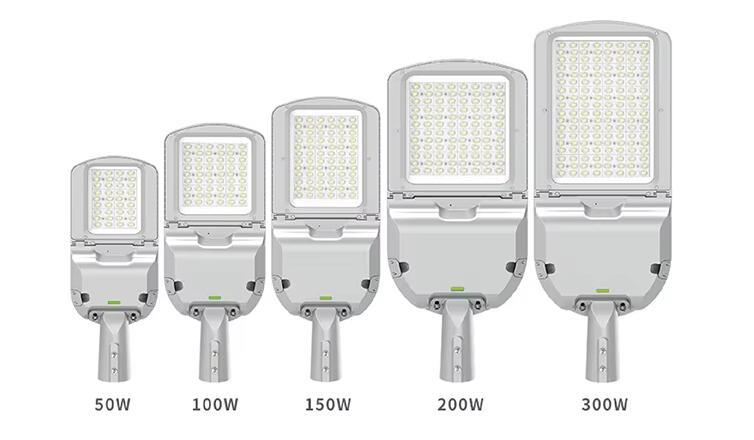

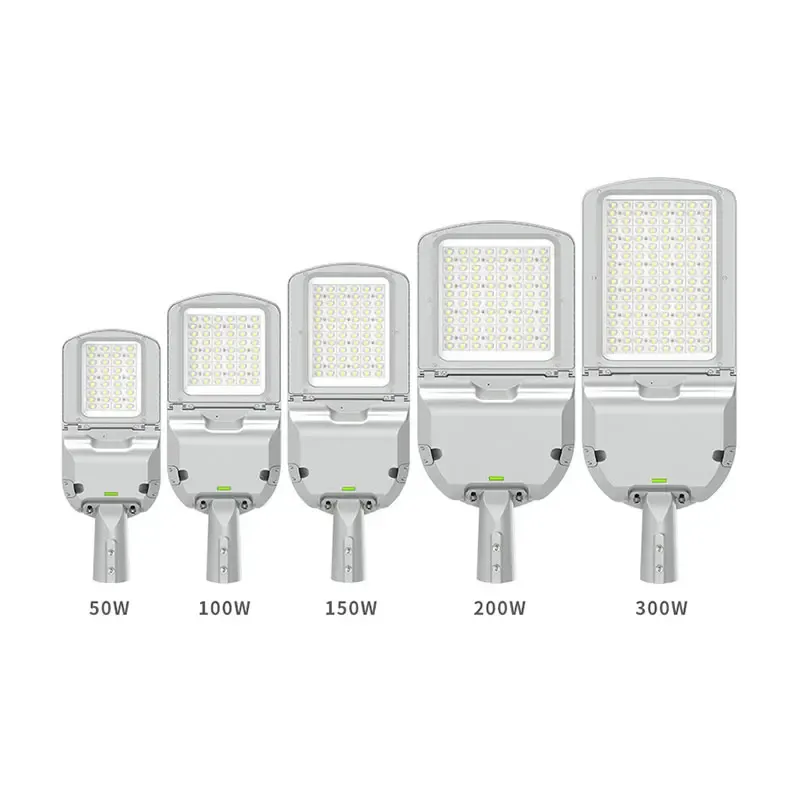

Aluminum 50W 100W 150W 200W 300W Parking Lot Area Lighting Outdoor LED Street Lights

Aluminum 50W 100W 150W 200W 300W Parking Lot Area Lighting Outdoor LED Street Lights

Product Description

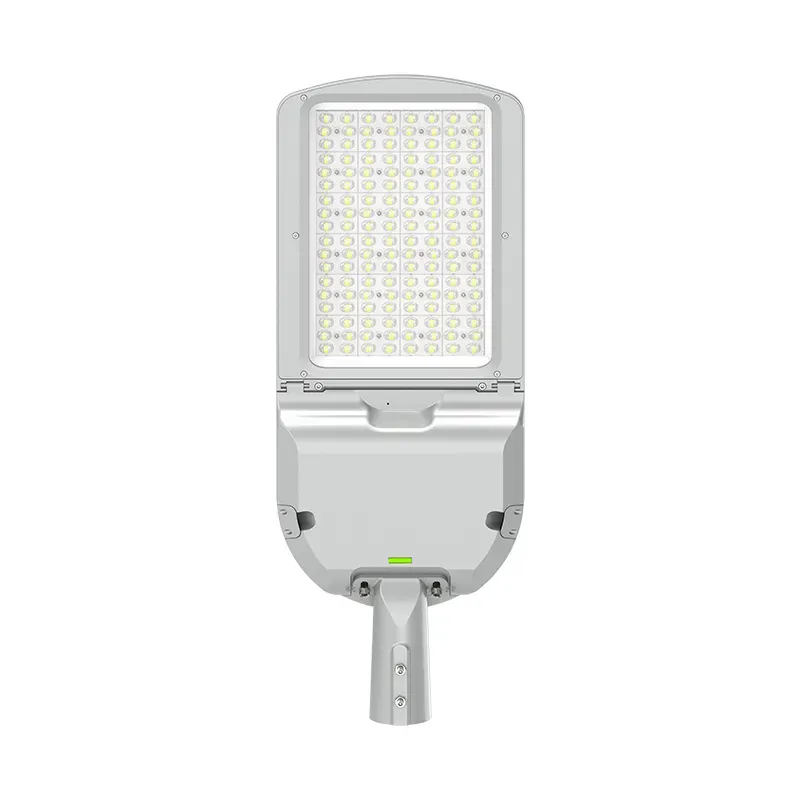

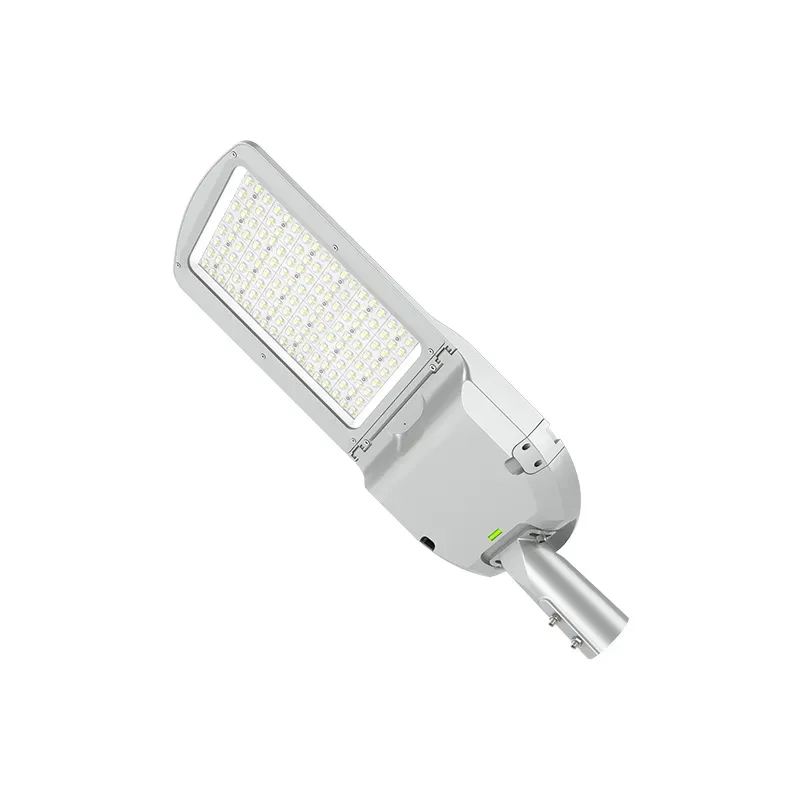

This is MINSENS 7th generation street light, die-cast aluminum housing, anti-corrosion. Use super bright Lumileds 3030 chip, the whole lamp luminous efficiency can reach 130-170lm/W, a variety of light distribution angles can be selected, anti-static 20KV, built-in level, tool-free disassembly and assembly. Easy to install and maintain. Can be widely used in various road lighting.



Features

1. Die-cast and powder coated aluminium housing for better anti-corrosion.

2. Adopt high bright Lumileds 3030 or multi-chips package 5050 LED chips. Stable performance, the luminous efficiency of whole lamp up to 130-170lm/W

3. Optical lens design. Type II-M,III-M,IV-S optional.Uniform lighting distribution apply to different lighting projects

4. Photocell sensor and dimmable function for option

5. Automatic cut-off design. 10KV/20KV SPD.

6. Unique design, tool-free LED driver replacement with buckle.

7. Long service life over 50,000 hours, 5 years warranty.


Product Parameters

Model No.	MS-SL-50W-P	MS-SL-100W-P	MS-SL-150W-P	MS-SL-200W-P	MS-SL-300W-P
Power	50W	100W	150W	200W	300W
Lumen	7000lm	14000lm	21000lm	28000lm	42000lm
Efficacy	140lm/W
LED Chip	3030 96pcs	3030 144pcs	3030 192pcs	3030 256pcs	3030 256pcs
CCT	2700~6500K
Work Temp	-30~60℃
Input Voltage	AC100-277V(Normal); AC100-305V(Meanwell)
Beam Angle	60°/90°/120°/T2M/T3M/T4M
Installation Hole(mm)	Ø40/50/60
IP Grade	IP66
IK Grade	IK08
CRI	≥80Ra
PF	>0.97
Anti-surge Rating	6KV
Life Span	≥50,000 Hrs (LM70 @ 35℃ )
Size(mm)	568*200*109	613*240*109	683*260*109	693*300*109	793*300*109
Weight(kg)	3.7	4.8	5.6	6.2	7.8

Detailed Photos

Using international brand 3030 LED
San'an/Lumileds/Osram LED optional, low optical decay, high light effect, high lightness finger.

Fast adjustment of bracket gear design angle
The above scale designangle is more convenient to quickly adjust and fix the friction between the bracket and the lamp body, causing the painting phenomenon.

Buckle installation
It is more convenient to disassemble any tools.

The installation of the horizontal positioning instrument is more accurate
The lamp head is equipped with a horizontal positioning instrument, which is more convenient and accurate.









Dimension

Installation



Applications

Outdoor led street light widely used in highway, main road, Branch Road, park, square, garden, pedestrian street, parking lot, street, community, engineering, school residential area, courtyard and other road lighting.



Production line





Our company

MINSENS Technology Co., Ltd, estalished in 2010, we are a manufacturing and trading combo, specialized in Outdoor LED Lighting: LED Stadium Lights, LED Flood Lights, LED Street Lights and Tunnel Lights etc.

Our main markets are in Europe, South America, Southeast Asia, Oceania, and also we exported to North America and some Middle East countries; all of our LED lights are with CE, RoHS, and some of them are with ETL, DLC, TUV etc.

MINSENS is committed to R&D and promoting of semiconductor lighting products and has accumulated a wealth of experience. We provide high-quality products, excellent pre-sales and after-sales service to customers.

Mutual benefit and common development is our aim. We sincerely look forward to cooperate with more customers in the world.

Provided service from Yongxinrui:

OEM/ODM(Lighting product design)
Providing LED energy saving program
Free lighting consultation
Lighting and circuitry design
DIALux caculation and visualization
Auto CAD layout
