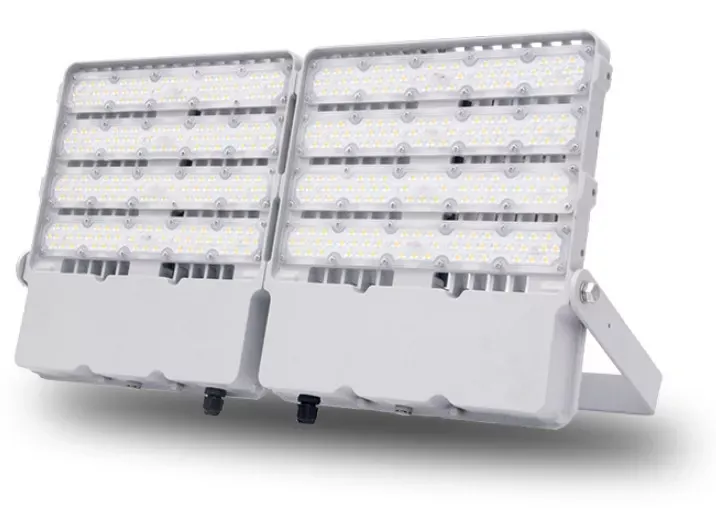

Aluminum IP66 Waterproof Outdoor Stadium Area High Mast Lamp Sport Tennis Court Industrial LED Flood Lights

High Mast Lamp Sport Tennis Court Industrial LED Flood Lights
  • Specification:
    Lamp Power: 100W 150W 200W 300W 400W 600W 800W 1000W
    Item: Industrial LED Flood Lights Stadium Area
    Input Voltage(V): 90-265VAC
    Luminous Efficiency: 120LM/W
    Lamp Body Material: Aluminum
    Beam Angle(°): 30°/60°/90°/80*140°
    Warranty: 5 Years
Description
Description

Aluminum IP66 Waterproof Outdoor Stadium Area High Mast Lamp Sport Tennis Court Industrial LED Flood Lights



Features



Three technical innovation
High power LED heat sink has perfectly replaced the traditional 400W to 1000W sodium lamp, this energy-saving cutting edge innovation fills the gap in the led heat sink market.
MIC LED's four patented technologies: HDT, zipped-fin, compressed pipe making the high power LED heat sink lighter, easy to install, solid in structure, super heat dissipation.
Modular design, making power diverse, enriching product line.



Buckle FIN patented design

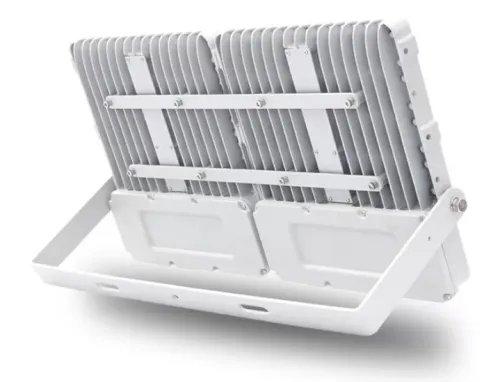

Heat pipe and massive aluminum fins cooling technology, efficiently reduce the temperature of LEDs and extend the lifetime of lamp.



216 ° adjustable angle
13 bracket adjustment point, the angle can be adjusted 216 °,finished lamp illumination angle freely changed.



Shade respirator design
Waterproof at the same time to clear the mist, to avoid condensation. Improve product quality, prolong life.

Reflectors reflectance of 92%
Reflective angle of 30 °/ 60 °/90 °/ 80 °* 140 °, up to 92% reflectance.




Specification

led industrial flood lights



LED Flood light Specifications
Input Voltage 100-305 V AC
Power 50W 100W 150W 200W 300W 400W
Lumens 5500-6000LM 11000-12000LM 16500-18000LM 22000-24000LM 33000-36000LM 44000-48000LM
CRI Ra>80
Power Factor >0.95
Light efficiency 110-120lm/W
LED chip LUMILEDS LED chips
LED driver brand SOSEN, Meanwell driver
Waterproof IP65
Housing material Excellent Aluminum +PC lens
Work temperature -30°C ~ +50°C
Lifespan 50000 hours
warranty 5-7years





Details




High efficiency Tai Wan Mean Well Driver

High Quality Lumileds/CREE Chips 3030 2D, up to 130lm/watt

IP66 waterproof Rated, IK08, 4KV/10KV Surge protect

Universal input voltage from AC90-305V, 50/60Hz

Safety operating voltage from DC24-DC46V

Pass the 4000V high voltage testing by TUV&ETL

Voltage Leakage is less than 10V during operating

Extremely low maintenance(safety&cost aspect)

Durable structure&stable performance

Comparing to traditional Metal halide lamps can save energy 60%-70%.

No flash, No RF, No ultraviolet radiation

Vertical Aluminum heat sink, benefit to heat dissipation

CE/RoHS approval

Smart function: 0-10V Dimming, PMW signal, Timing optional, Light sensor








Material and process



1. Tempered glass panel to protect the lighting source, the transparent rate up to 93%

2. High quality luminium heatsink with zipped-fins technology airflow dust inside the housing

3. The entir housing coated by electrophoretic pait,excellent corrosion resistence.

4. Stainless steel screws and parts











Installation



Secure the light on a smooth surface which has enough strength with m12 screws, it a must to equip with anti-off nuts.
Fix the safety chain at the appropriate place where has enough mechanical strength
Correctly connect the lead wire to l, n, pe of the power supply
Power it on to work





Applications

Pole mounted led flood lights widely apply to stadium,sport ground,seaport, golf course,football court and other field.





Packaging


1 unit per Neutral packing box

Standard export packaging
