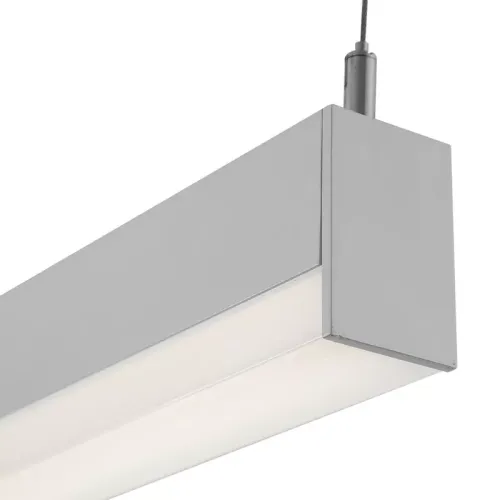

Aluminum office meeting room suspension pendant led linear lighting fixture
Features
linear led pendant light design for various commercial illumination, anti-glare, UGR<19, can be recessed, suspending and surface mount as per your demand. Bring most comfortable shopping experience to customers.
Up and down light for options
Visual comfort. No screws on the end caps.
Anti-glare
UGR film added to decrease the glare. UGR<22 Use PMMA material for Lens.
Linkable design
Use physical ways to connect, no need for screwdriver. Aluminum housing,fast heat dissipation.
Meet uniqueness of design
Different shape,different design concept.
Good performance of connection
Well connection with other lights make no light leakage. Connect with lights as many as you want.
Uniformity
Wide batwing distribution,enhance light uniformity.Give you a good experience. Energy saving.
Mounting
Different locations, different installation methods
Specification
suspended / surface mounted linear led lighting
| Model No. | MS6870-575 | MS6870-1141 | MS6870-1424 | MS6870-1424 |
| Power | 24w | 40w | 40w | 60w |
| Dimension | L575*W68*H70mm | L1141*W68*H70mm | L1424*W68*H70mm | L1424*W68*H70mm |
| LED chips | 120 pcs 2835 | 240 pcs 2835 | 300 pcs 2835 | 300 pcs 2835 |
| Package size | 750*200*200mm | 1330*200*200mm | 1610*200*200mm | 1610*200*200mm |
| Input voltage | 180-240V/100-277 | |||
| Beam angle | 30°/60°/90°/LR25° | |||
| Lumen | 130lm/w /150lm/w | |||
| CRI | 80ra | |||
| Warranty | 3/5 years | |||
| Dimming | No/0-10V/DALI | |||
| rature | 3K/4K/5K/6K | |||
| Power factor | 0.9 | |||
| Working temp. | -10~40℃ | |||
| Protection level | IP20 | |||
| Pcs/carton | 4 pcs/carton | |||
| Track quantity | No/3wires/5wires/7wires | |||
| Installation | Pendant/Recessed/Surface mounted | |||
| Cover | Diffuser(smooth/streak) | |||
| Material | Alumnious Alloy +PC | |||
| Power | 15W-80W avaliable | |||
Details
linear led light fixture
1.Freedom Design
The design of LED Linear Light breaks through the limitations of traditional lighting design,the length of extrusion profiles can be cuttable according your request,even infinite connection for each other. Let everyone enjoy the freedom of design.
2.Easier Installation
Based on the modular design,the installation of LED linear light is diversified such as wall mounted,ceiling mounted, recessed or wire suspended according your application,the installation can be completed more quickly by this design.
3.More Various Application
Unlike the application of LED strip or LED tube light,a variety of application environments with good adaptability through the perfect combination of aluminum and LED light source.While providing a variety of joint accessories,the spatial structure has demonstrated a perfect compatibility in different areas.
4.More fashion modeling
Different from the complex,luxurious European lighting style,using LED linear lighting system to cut the space for a variety of simple geometric shapes,opened a fresh,elegant stylish lighting new field,will become the new trend in recent years.
Applications
Suspended LED Linear Light, is very good for almost every indoor applications like below:
1. Office, Meeting Room, Reception Desk, Rest Room, Waiting Room etc.
2. Supermarket, Shopping Mall, Retail Store etc.
3. Bar, Coffee, Restaurant, Salon etc.
4. Workshop, Parking Lot, Warehouse,
5. Living room, Kitchen, Dinner Room, Study Room etc.
Installation
Seamless and linkable.

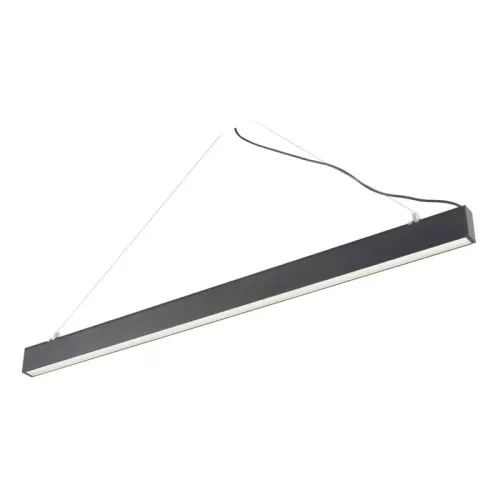

1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed
Packaging
LED Linear Lighting Standard export packaging or customized according to customer requirements
