Aluminum office meeting room suspension pendant led linear lighting fixture
Features
* High-tech optical design with maximum efficiency.
* 6063 Aluminum made, with excellent heat-dissipation.
* Surface painting spray, anti-corrosion, anti-rust, elegant and durable.
* Healthy: Light does not contain ultraviolet and infrared light, no light radiation.
* Environmental protection: No mercury and xenon and other harmful elements, recyclable, no electromagnetic interference.
* High-performance constant current drive power, no flicking, good for eyes.
* Seamless connection, power up to 2200W..
* Super bright Osram 3030 LED chip light source, high luminous efficiency,130lm/w.
* Multiple combinations ,Easy handle and tool-free.
* Avaiable in single down lighting, or up&down lighting.
* Come with stainless steel rope for suspended and brackets for wall mounting.
Specification
suspended / surface mounted linear led lighting
|
Model NO
|
MS-L1C-12040
|
MS-L1C-15060
|
MS-L1C-18080
|
MS-L1C-240100
|
| Power Wattage |
40W
|
60W
|
80W
|
120W
|
| Lamp Size |
1200*63*80mm
|
1500*63*80mm
|
1800*63*80mm
|
2400*63*80mm
|
| Net Weight |
2.7kg
|
3.5kg | 4kg | 5.4kg |
| LED Chip QTY |
204 pcs
|
264 pcs
|
324 pcs
|
408 pcs
|
| Lumen Output (± 5%) |
5200lm
|
7800lm
|
10400lm
|
15600lm
|
| Package | 27kg/10pcs | 35kg/10pcs | 20kg/5pcs | 25kg/5pcs |
| Carton Size | 1250*400*210mm |
1550*400*210mm
|
1850*400*100mm
|
2450*400*100mm
|
| Input Voltage |
EU:AC200-240V, US:AC85~265V/277V
|
|||
| Power Factor |
>0.95
|
|||
| Chip Brand |
Samsung 2835
|
|||
| Driver Brand |
Lifud, Taiwan Meanwell
|
|||
| Lumen Efficiency |
100-130 lm/w
|
|||
| CRI |
RA>80
|
|||
| CCT |
2700K-6500K
|
|||
| Beam Angel |
120°
|
|||
| Shell Material |
AL1070 Aluminum
|
|||
| Life Span |
50,000hours
|
|||
| IP Grade |
IP40
|
|||
| Storage Temperature |
-20℃ ～ +70℃
|
|||
| Working Temperature |
-35℃ ～ +55℃
|
|||
| Working Humidity |
10% ~ 95%
|
|||
| Options |
0-10VDC, DALI
|
|||
| Installation Type |
Suspension, wall mounting
|
|||
| THD |
<10%
|
|||
| Warranty |
3years/5years
|
|||
| Certifications | CE ROHS EMC SAA ETL DLC | |||
Details

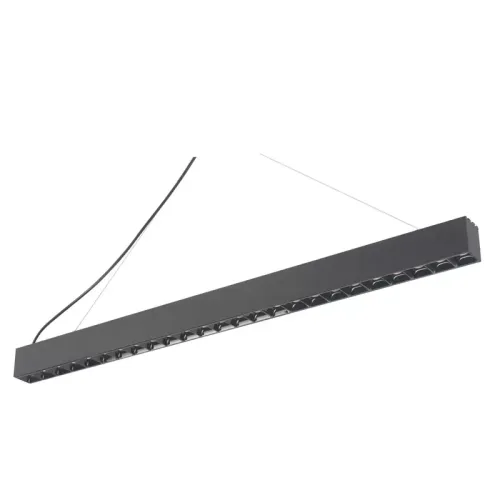

linear led light fixture

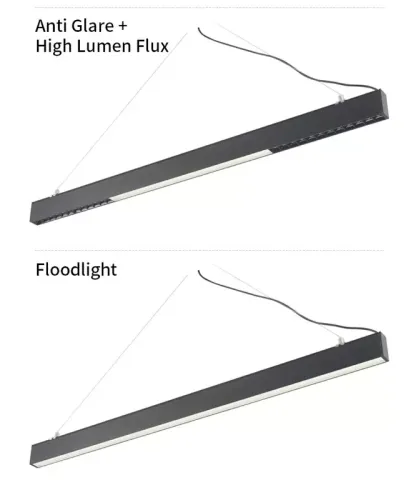

Up and down light for options
Visual comfort. No screws on the end caps.
Anti-glare
UGR film added to decrease the glare. UGR<22 Use PMMA material for Lens.
Linkable design
Use physical ways to connect, no need for screwdriver. Aluminum housing,fast heat dissipation.
Meet uniqueness of design
Different shape,different design concept.
Good performance of connection
Well connection with other lights make no light leakage. Connect with lights as many as you want.
Uniformity
Wide batwing distribution,enhance light uniformity.Give you a good experience. Energy saving.
Mounting
Different locations, different installation methods
Applications
Suspended LED Linear Light, is very good for almost every indoor applications like below:
1. Office, Meeting Room, Reception Desk, Rest Room, Waiting Room etc.
2. Supermarket, Shopping Mall, Retail Store etc.
3. Bar, Coffee, Restaurant, Salon etc.
4. Workshop, Parking Lot, Warehouse,
5. Living room, Kitchen, Dinner Room, Study Room etc.
Installation
Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed
Packaging
LED Linear Lighting Standard export packaging or customized according to customer requirements
