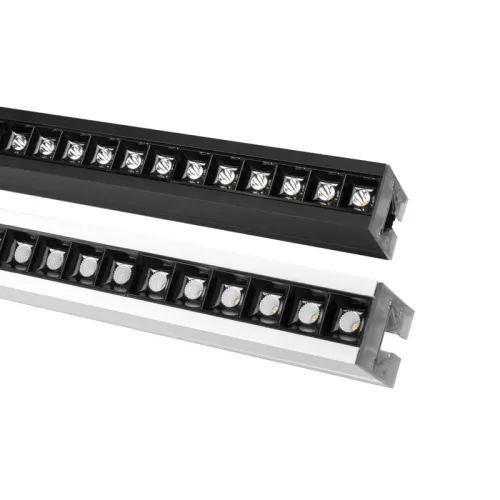

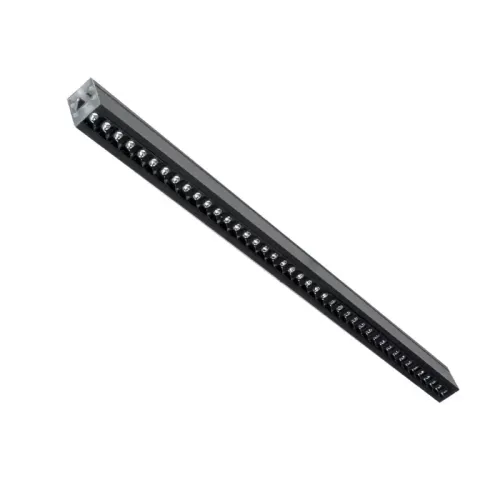

Anti - glare Dimmable Pendant Led Linear Light For Conference Office Lighting

linear led light fixture
  • Spec:
    Linear Led Light Fixture
    AC 100-277V
    5065 3570 7575 type
    20W 40W 60W 80W
    0-10V
    DALI
Description
Description

Anti - glare Dimmable Pendant Led Linear Light For Conference Office Lighting



Features

linear led light fixture

1.Connect with seamless, form with line shape.
2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.


Specification

LED Linear Light with Reflector optics


led linear pendant 3570
Product name
LED Linear Light - 3570
Product Model No
LS3567-PZ
Housing material
6063-T5
Surface treatment
Powder coated or Brushed aluminum
CCT
3000K,4000K,6000K
LEDs
2835SMD (SANAN chip)
LEDs Life Span
50000H
Input Voltage
100-277V/200-240V 50/60HZ
Power supplier
Flicker-free
Luminous Efficacy(lm/w)
100lm/W
Color Render (CRI)
RA≥80 or RA≥90
Power factory(PF)
≥0.9
Optional features :
0-10V dimming, DALI dimming,CCT dimming
IP Rated
IP20
Beam Angle
120° (PC)

34°(Reflector)
Working Temp(℃)
Surrounding Ambiance Temperature -25°~40°Degree Celsius
Body Material
aluminum,PC,ABS
Color Option(shell)
Silver,White,Black
Certification
CE, RoHS
Limited Warranty
3 Years




Standard specifications
Model
Size
Watts
Voltage
CRI
3570LS20W06-PZ
L605*W35*H70
20W
AC200-240V/100-277v
Ra>80/90
3570LS40W12-PZ
L1200*W35*H70
40W
AC200-240V/100-277v
Ra>80/90
3570LS60W18-PZ
L1795*W35*H70
60W
AC200-240V/100-277v
Ra>80/90
3570LS80W24-PZ
L2390*W35*H70
80W
AC200-240V/100-277v
Ra>80/90




Details

suspended linear led lighting

1.Quality famous branded LED SMD chip, high luminous efficiency, CRI>80/90, with uniform & comfortable light layout.
2.High quality profile, simple & exquisite design.
3.Optical lens or arcylic transparent solutions, high luminous efficiency, with good anti-glare effect.
4.Pendant or ceiling designs, easy for installing.
5.Can be directly spliced or combined in group, fit for different applications and specialised demands.
6.Can be dimmable or smart controlled, available for multiple applications.
7.Lifespan up to 35000hours, 3/5 years warranty




Applications

LED linear lighting Used for:
Office, gallery, hotel, restaurant, school, warehouse, shop, market, etc


Installation

Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed



Packaging

LED Linear Lighting Standard export packaging or customized according to customer requirements
