CE Rohs Approved 1000w Led Floodlight 600w/1000w Led Stadium Light With 5 Years Warranty

600w/1000w Led Stadium Light With 5 Years Warranty
  • Specification:
    Item: 1000w Sport Light / 1000w Led Stadium Light
    Lamp Power: 1000W
    Input Voltage(V): 90-305VAC
    Luminous Efficiency: 36000-155000Lm
    Narrow Angle: 10 / 45 / 60 / 90/ 55*140
    Lamp Body Material: Aluminum + PMMA
Description
Description

CE Rohs Approved 1000w Led Floodlight 600w/1000w Led Stadium Light With 5 Years Warranty



Description



1000W LED Stadium Light For Stadium Lighting

1. LED module design, 300W-1500W multi-Power optional

2. Unique and attractive design with high brightness, low light decline

3. Use Cold forging high thermal conductivity 1070 Aluminum for optimal dissipation effect.

4. Use Lumileds chip 140lm/W and Meanwell driver to ensure stable performance and long lifetime.

5. Multi-optional optical lens, 10°/25°/45°/60°/90° Beam angle are available.

6. Instant ON/OFF , Waterproof rating IP66, IK Rating IK08 and 10KV Lightning protection device.

7. Not heavy weight for transportation, professional optical design, Easy to install and use , secure and reliable.

8. Extremely long life reduces re-lamp frequency, high heat conductivity, Low heat generation and no heat damage to achieve ideal display lighting, Low power consumption, can best save energy and maintenance cost.

9. Compared with traditional lighting fixtures can Save 80% more energy.

10. Outstanding resistance to corrosion for 5000-hours salt spray test




Features



1. Aluminum fin-shape heat sink and active air exchanging cooling system.
2. Modular structure of LED industrial Light could be applied for power variation by module increase and decrease.
3. Beam angle of modular could be adjustable to fulfill various lighting requirements.
4. Unique design removable power supply and light source.
5. IP65 ideal for outdoor use.
6. LEDs from lumileds SMD5050
7. Constant current driver from Meanwell/ Sosen, 90-305VAC(277-480V optional )
8. 50% less power consumption than traditional light source
9. High power LED tunnel light 300W/400W/500W/600W/800W/1000W for choosing
10. Light distribution: 25°/45°/ 60°/60*145°



Specification

industrial outdoor led flood lights



1000w sport light
Power(w) 300W 400W 600W 800W 1000W
Volt(v) 90-305 90-305 90-305 90-305 90-305
LED Chip
Light Effect 130LM/W 130LM/W 130LM/W 130LM/W 130LM/W
CCT 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K
CRI Ra70/Ra80 Ra70/Ra80 Ra70/Ra80 Ra70/Ra80 Ra70/Ra80
PF > 0.95 > 0.95 > 0.95 > 0.95 > 0.95
LED Driver Meanwell Meanwell Meanwell Meanwell Meanwell
IP Code IP65 IP65 IP65 IP65 IP65
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
Working Temp -40 -70°C -40 -70°C -40 -70°C -40 -70°C -40 -70°C
Beam Angle 25°/ 45°/ 60°/ 90°/ 145°
Body Material: fin shape aluminum +copper tube
Certification: CE, FCC,ROHS,CB, ETL

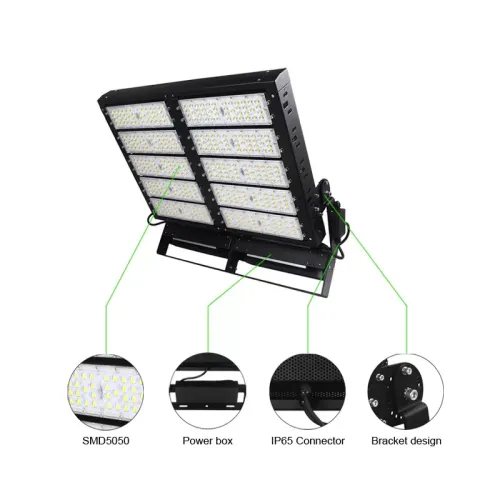

Details


 1000w flood light


1.Vertical module design, better heat dissipation performance, more durable and longer lifespan.
2.Strong wind resistance protection.
3. Built-in driver, IP67 waterproof plus shell protection, double protection, much safer.
4. Special optical design mask: Japanese emperor Optical PC, light transmittance> 95%, no yellowing, with anti-ultraviolet and other functions.
5. Imported high-efficiency LED chip: Lumileds 3030 and Lumileds 5050 for option, luminous efficacy > 150lm / w
6. 3 way to install : bracket installation / Pole installation / Wall installation for option.
7. Integrated design: easy installation and easy maintenance









Installation



-Non-professional technicians, please do not repair or modify this product without authorization.

-Please make sure to turn off the power before installing.

-Before installing, please check whether the voltage marked on the high pole lamp is consistent with the input voltage to be connected.

-In order to ensure the service life of the product, please do not use it in a place with strong acid mist.

-Pay attention to earthquake prevention during installation and transportation.

-Install it in a flat place without vibration, no swing, no fire hazard.

-If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.

-If the lamp body wire is damaged, please stop using it immediately.






Factory








Applications

1000w stadium light Widely used in stadium, sport field light, Tennis court, gymnasia, billboard, government lighting decoration project, landmark or building, public square and other outdoor light applications.











Packaging

300W Product size:516*388*209mm
Box Size(1pcs):59*51*25CMN.W:11.2KG G.W:12.8KG
400W Product size:608*418*209mm
Box Size(1pcs):68*51*25CMN.W:13.5KG G.W:15.4KG
500W Product size:700*418*209mm
Box Size(1pcs):79*51*25CMN.W: 15KG G.W:17.4KG
600W Product size:516*754*209mm
Box Size(1pcs):83*59*25CMN.W: 22KG G.W:25.5KG
800W Product size:608*754*209mm
Box Size(1pcs):83*69*25CMN.W:24KG G.W:26.5KG
1000W Product size:700*754*209mm
Box Size(1pcs):83*79*25CMN.W:28.5KG G.W:32KG
