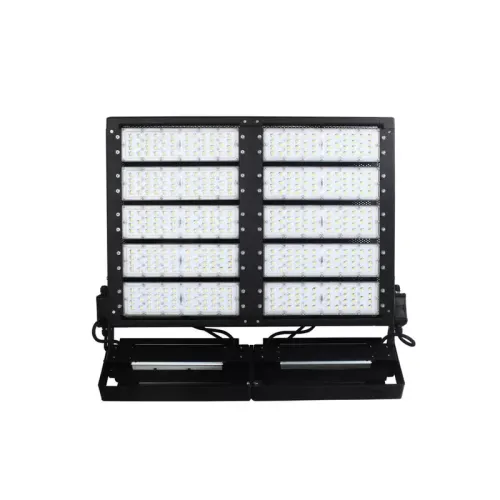

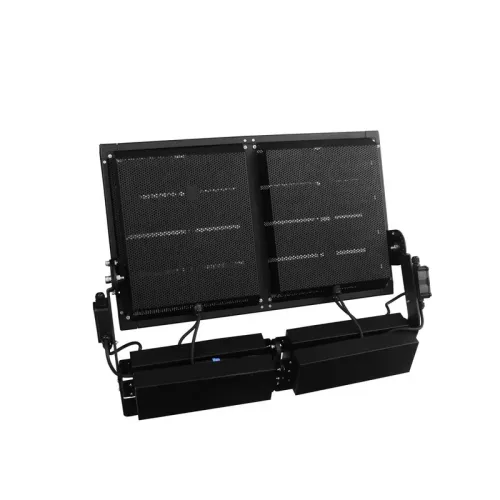

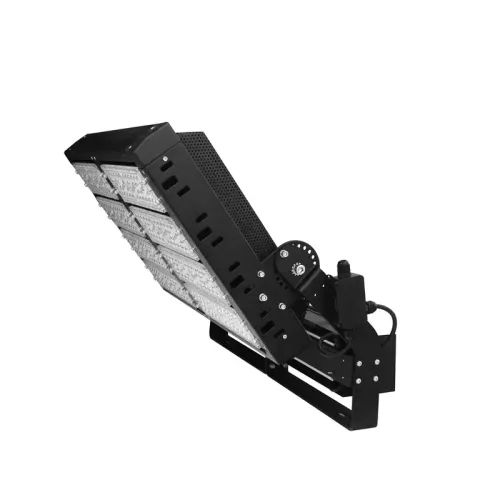

Collision - Prevention Net 150Lm/W led stadium lights for football stadium
Features
LED stadium lights for football stadium 300W 400W 500W 600W 700W 800W 1000W available.
1. Aluminum fin-shape heat sink and active air exchanging cooling system.
2. Modular structure of LED industrial Light could be applied for power variation by module increase and decrease.
3. Beam angle of modular could be adjustable to fulfill various lighting requirements.
4. Unique design removable power supply and light source.
5. IP65 ideal for outdoor use.
6. LEDs from lumileds SMD5050
7. Constant current driver from Meanwell/ Sosen, 90-305VAC(277-480V optional )
8. 50% less power consumption than traditional light source
9. High power LED tunnel light 300W/400W/500W/600W/800W/1000W for choosing
10. Light distribution: 25°/45°/ 60°/60*145°
Specification
| Power | 300W 400W 500W 600W 800W 1000W |
| Working voltage | AC100-277V, 50/60Hz;AC180-277V |
| PF | > 0.97 |
| IP Grade | IP65 |
| CRI | >80Ra |
| Light Efficiency | 135-140lm/w for 25°, 45°, 60°; 150-160lm/w for 60*145° |
| Beam Angle | 25°, 45°, 60°, 60*145° |
| LED chip | SMD 5050 |
| Heat sinks | Aluminum |
| Body color | Black |
| Operating Temperature | -35℃ - 50℃ |
| Operating Humidity | 10% - 90% RH |
| Storage Temperature | -35℃ to 60℃ |
| Net W./Gross W. | 27.5KGS / 32.5KGS(1000W) |
| Packing size | 85*81*27CM(1000W) |
| Warranty | 5 years |
| Certificates | CE, RoHS, SAA, ETL |
Details
1. Different beam angle available.
2. Using high quality Aluminum, efficiently reduce the temperature of the lights and extend the lifespan.
3. The lifespan is more than 60000 hours. Energy Saving 70% compared with traditional Fluorescent.
4. Green environmental protection, no ultraviolet, infrared, thermal radiation and pollution of mercury.
5. Optional LED of all kinds of color and it can meet different requirement of the environment.
Installation
Factory
Applications
Widely used in shopping mall, exhibition hall, parking lot, playground, gymnasium, billboards, parks, yard, sports field, square, construction site
sculpture, national green lighting project, building facade and public corridor, stair corridor and other indoor and outdoor lighting.
Packaging
300W Product size:516*388*209mm
Box Size(1pcs):59*51*25CMN.W:11.2KG G.W:12.8KG
400W Product size:608*418*209mm
Box Size(1pcs):68*51*25CMN.W:13.5KG G.W:15.4KG
500W Product size:700*418*209mm
Box Size(1pcs):79*51*25CMN.W: 15KG G.W:17.4KG
600W Product size:516*754*209mm
Box Size(1pcs):83*59*25CMN.W: 22KG G.W:25.5KG
800W Product size:608*754*209mm
Box Size(1pcs):83*69*25CMN.W:24KG G.W:26.5KG
1000W Product size:700*754*209mm
Box Size(1pcs):83*79*25CMN.W:28.5KG G.W:32KG
