Commercial Led Pendant Modern Chandelier Home Office Hanging Linear Lamp Led Pendant Lighting
Features

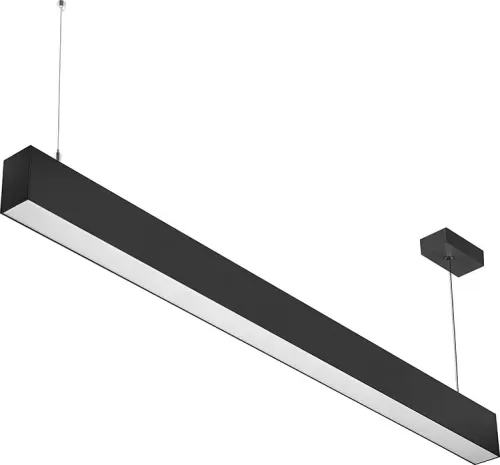

linear led pendant light
1.Freedom Design
The design of LED Linear Light breaks through the limitations of traditional lighting design,the length of extrusion profiles can be cuttable according your request,even infinite connection for each other. Let everyone enjoy the freedom of design.
2.Easier Installation
Based on the modular design,the installation of LED linear light is diversified such as wall mounted,ceiling mounted, recessed or wire suspended according your application,the installation can be completed more quickly by this design.
3.More Various Application
Unlike the application of LED strip or LED tube light,a variety of application environments with good adaptability through the perfect combination of aluminum and LED light source.While providing a variety of joint accessories,the spatial structure has demonstrated a perfect compatibility in different areas.
4.More fashion modeling
Different from the complex,luxurious European lighting style,using LED linear lighting system to cut the space for a variety of simple geometric shapes,opened a fresh,elegant stylish lighting new field,will become the new trend in recent years.
Specification
5065 type linear led pendant light Parameter
Item | 5065LS20W06 | 5065LS40W12 | 5065LS60W18 | 5065LS80W24 |
LED | SMD2835 | |||
Lumens | 1700-1900 | 3400-3600 | 5100-5300 | 6800-7000 |
CCT(K) | 2700-7000K | |||
CRI | Ra≥80 | |||
Life time (Hrs) | ≥50000H | |||
Light decay | ≤8%/10000 小时 | |||
Input Voltage | AC100-277V/AC200~ 240V | |||
Hz | 50/60 Hz | |||
Power | 20W±2W | 40W±2W | 60W±2W | 80W±2W |
PF | >0.9 | |||
Start Time(s) | 0.2 | |||
Beam angle | 120° | |||
Material | Aluminum,PS,PMMA,ABS | |||
Dimension(mm) | L605*W50*H65mm ±3 | L1200*W50*H65mm ±3 | L1794*W50*H65mm ±3 | L2388*W50*H65mm ±3 |
finished | Silver,White,Black | |||
IP | IP54 | |||
Working humidity | -25℃ ~ 35℃,10% ~ 90% R.H. | |||
Storage temperature | -40℃ ~ 80℃,0% ~ 95% R.H. | |||
Certification | CE,ENEC | |||
Environmental protection | ROSH |
Details
suspended linear led lighting
Installation & linkable
Ceiling & Pandent both can use for installation. Linkable,connect freely, easy fixing
5 different types of corner connectors application
End caps are assembled by mechanical screws
Ladder type structure design, convenient for disassemble
Sturdy Design
The full aluminum body design allows for a lightweight yet sturdy and robust build. This makes for easy installation with the included hardware and gives assurance of a commercial grade fixture.
Built-in anti-glare version, more comfortable light.
Cover
Transparent cover,milk white cover
Lenses with different luminous angles
Customizable
Profile variation
Applications
led linear suspension lighting Used for:
Office, gallery, hotel, restaurant, school, warehouse, shop, market, etc
Installation
Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed
Packaging
LED Linear Lighting Standard export packaging or customized according to customer requirements
