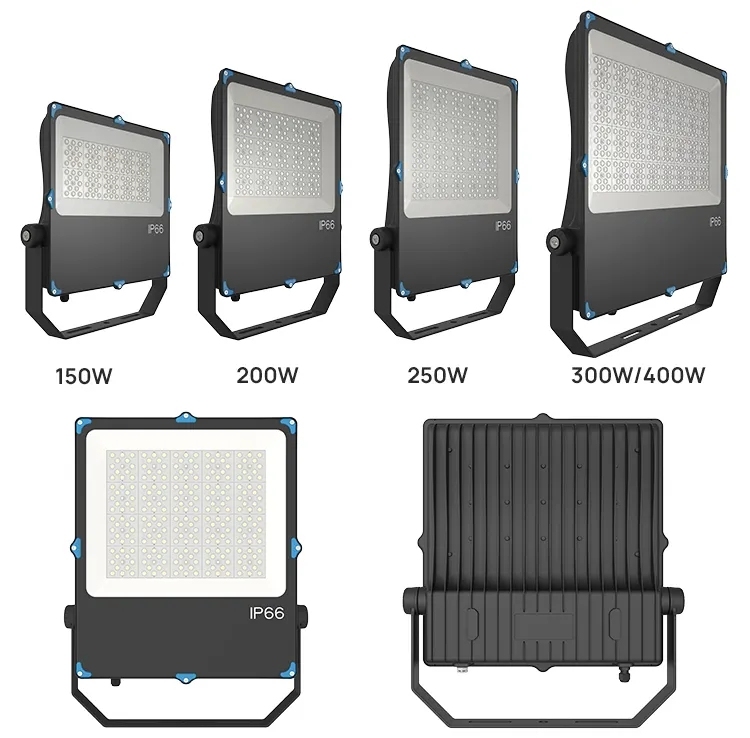

Commercial Outdoor IP66 50w 100w 150w 200w 300w 400w Ultra Thin 200w LED Flood Light
Descriptions
Based on the ultra-thin LED outdoor floodlight, we have added lenses with different angles, 30°/60°/90°/120° to meet different light distribution requirements, and can be used in very professional light distribution scenes, such as sports fields . outdoor landscape lighting
Features1. Using imported LED chip, effectively improve the brightness of about 30%.
2. Meanwell LED Drivers,AC100V~277V,PF>0.98,THD>15%.
3. 30°/60°/90°/60°×150°beam angles and excellent uniformity.
4. 1070 pure aluminum stamping process,better heat dissipation, lighter weight,and effectively extend lifespan.
5.IP67 rating is applicable to outdoor environment.
6. Intelligent dimming system.0~10V,DMX and DALI dimming models are available.
7. Ultra-low luminous decay<10% in 5 years.L70>50,000hrs.
Specifications
| Model |
Power |
Lumens |
LED Chips |
Dimension |
Input Voltage |
Beam Angle |
| MS-FL-30W-H |
30W |
3900LM |
3030 48PCS |
L242*W169*H51mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
|
| MS-FL-50W-H |
50W |
6500LM |
3030 72PCS |
L283*W220*H52mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-70W-H |
70W |
9100LM |
3030 96PCS |
L369*W278*H52mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-100W-H |
100W |
13000LM |
3030 120PCS |
L369*W278*H52mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-150W-H |
150W |
19500LM |
3030 160PCS |
L394*W395*H57mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-200W-H |
200W |
26000LM |
3030 240PCS |
L445*W392*H57mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-250W-H |
250W |
32500LM |
3030 320PCS |
L497*W392*H57mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-300W-H |
300W |
39000LM |
3030 384PCS |
L524*W545*H65mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
| MS-FL-400W-H |
400W |
52000LM |
3030 512PCS |
L524*W545*H65mm |
AC100-277V 50-60Hz |
30°/60°/90°/120° |
More details
Tempered glass
provides double protection and good self-clean
Tluminium die-cast housing
Durable and slimline ADC12 aluminium die-cast housing with a black powder coated finish, ultra-slim design
3000K 4000K 6000K CCT Adjustable option
3000K 4000K 6000K CCT
Adjustable option, save stock cost for you
Rugged cons truction with advanced bracket can perform connection function steady
Engineered and designed a sealing cavitie with the most efficient and reliable IP66 clamp
Standard PCB match with multiple lenses makes Easier installation and Lower labor costs 000
Specially precision micro holes will prevent.excessive vapour design and guarantee excellent waterproofing
Installation
Applications
Outdoor IP66 50w 100w 150w 200w 300w 400w Ultra Thin 200w LED Flood Light Suitable for indoor and outdoor basketball courts, badminton courts, football fields, tennis courts, baseball fields, golf courses, ski resorts and other indoor and outdoor stadiums. Also suitable for swimming pools, ski resorts, stations, gardens, park lighting and other Surface and facade lighting.

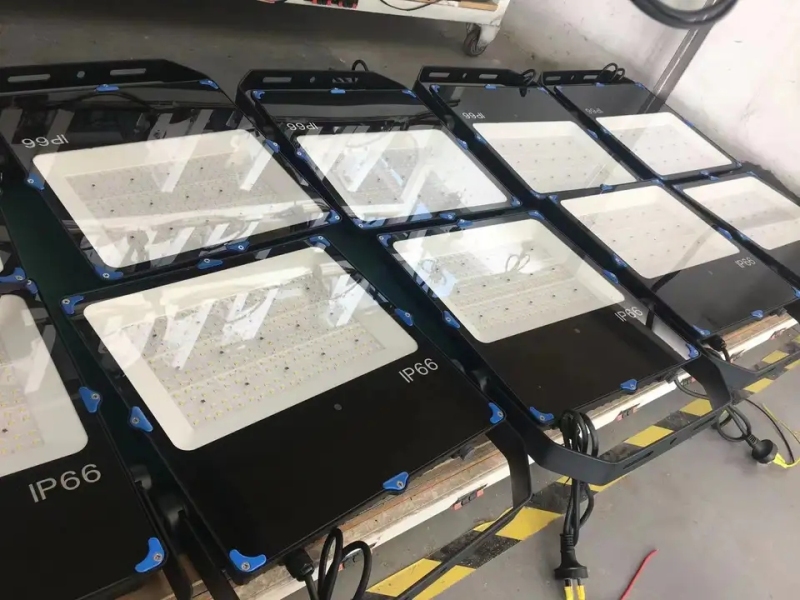

Factory assembly line
