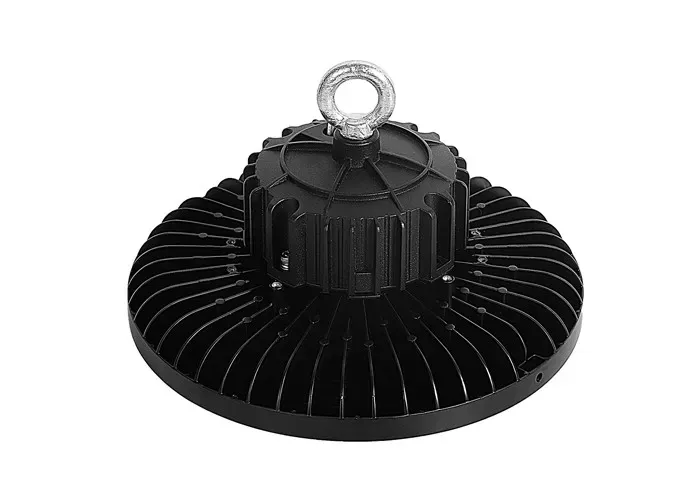

Die - Cast All Aluminum Design Dimmable Ufo High Bay 100w 4000k TUV 3030 Chips

UFO LED High Bay Light
  • Product:
    ufo led high bay light
    ufo high bay light
    led ufo high bay
    ufo led
Description
Description

Die - Cast All Aluminum Design Dimmable Ufo High Bay 100w 4000k TUV 3030 Chips





Features



1. Hollow heat sink design increase more airflow for better heat dissipation.
2. Can match the high bay reflector. Aluminum reflector & transparent reflector available.
3. LED and heat sink are parallel, no dark area, no shadow.
4. 3030smd LED, 110lm/w & 130lm/w version available, high CRI>80Ra.
5. 60°/90°/120° lighting angle for selection.
6. LED junction temperature less than 85℃.
7. Waterproof IP65 design, suitable to damp & wet location.
8. Dusk to Dawn photocell available.
9. Three dimensions. Lighter weight and smaller volume can help customer save freight cost.
10. Two installations: Bracket & Hooking Hang for options.
11. LM79/LM80/IES reports available.
12. ETL/DLC/CE/RoHS/FCC/LM80 certification.
13. 5 years warranty.





Specifications



Model MS-HBU-100W
Watt 100W
Lumens 13000LM
LED Chips 3030smd
Efficacy (IES) 130LM/W
Input Voltage AC100-277V, 50-60Hz
Color Temperature 2700~6500K
CRI >80
Power Factor >0.9
Beam Angle 60°, 90°, 120°
Lumen Maintenance L70>50,000 hrs
Mounting Options Bracket / hooking hang
Material Aluminum alloy
Dimension Φ260*H163mm
IP Grade IP65
Weight 3.0kg





Details







Dimensions





Distribution Curve Flux






UFO LED High Bay Light(60°/120° lens)





Dusk to Dawn photocell available




Match with both rectangle and round power supply

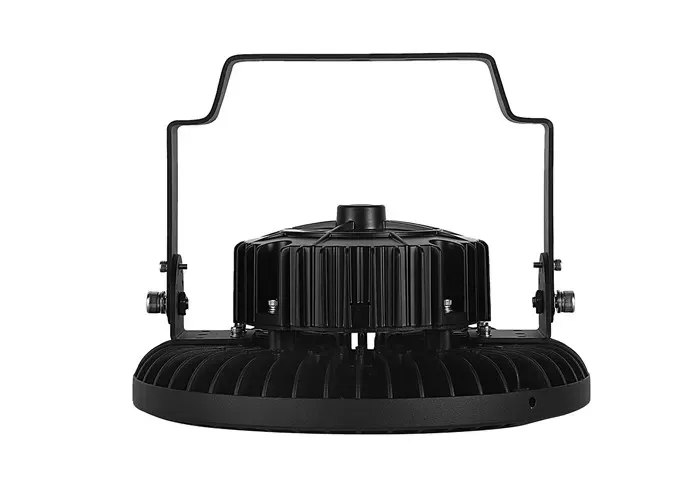

Two installations

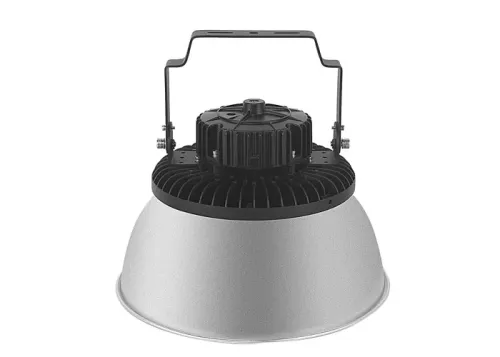

Can match the high bay reflector.

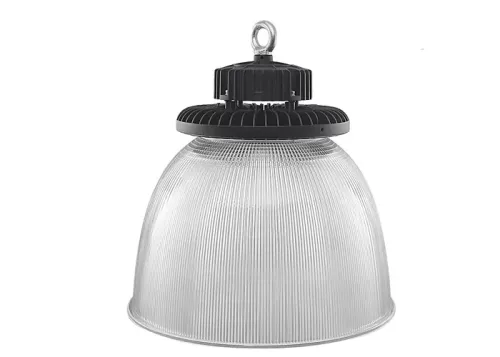

Transparent reflector available & Aluminum reflector.





Applications



Stadium / Warehouse / Supermrket / Exhibition Hall / Gymnasium / Parking Lot / Shopping Mall





Packaging



Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
