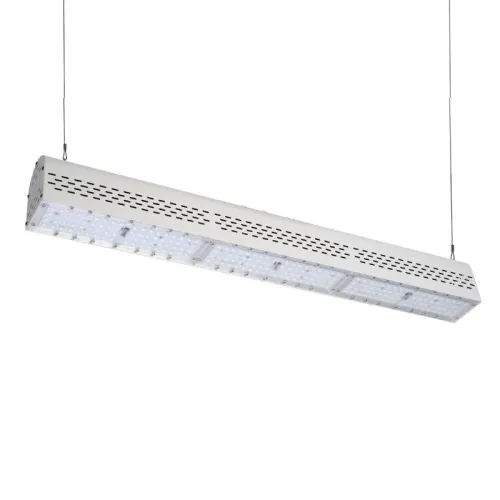

Dimmable Hanging Warehouse Lights Industrial Indoor Outdoor Workshop Garage 100w 200w 300w LED Linear High Bay Light
Product Description
led linear high bay light
1. Fashion Design, 1-5 modulars, power from 50W - 300W, comply with most application in warehouse room, office ,meeting rooms,schools and showrooms.
2. Supply multi beam angle: 40°,60°,90°,150×75° degree for different application;
3. Supply 2 kinds mounted, one of with ceiling rope, the other one with bracket, can turn light to different beam angle.
4. IP65, water-proof, dust-proof, moisture-proof.
5.100-150 lm/w
6. Meanwell driver (dimmable, 100-277V,200-480V , montion sensor and emergency available)
7. No flicker or buzz
8. 4m to 12m application
9. Versatile, trouble-free installation: linkable, rotating, suspended, ceiling.
10. 5 years warranty
11. CE,RoHS,VDE approved
Specification
| led linear high bay light 50W-500W | |
| ITEM | MS-HBLT-A |
| Wattage | 50W 100W 150W 200W 300W 400W |
| Lumens | 130LM/W |
| Fixture Size | 620*115*144mm(100W) |
| LED Number | 112pcs 3030(100W) |
| LED Brand | Lumileds/Samsung/Cree/Nichia/As per request |
| LED Type | 3030 |
| Efficacy | >140lm/w |
| Power Factor | >0.95 |
| CCT | 3000k/5000k/5700k/6500k |
| CRI | >80Ra |
| Beam Angle | 90 degree/85x160 degree |
| Installation | Suspend/Ceiling |
| Input Voltage | 100-277VAC |
| IP Rate | IP65 |
| Lifespan | 50000 Hours |
| Warranty | 5 Years |
Details
Dimmable Hanging Warehouse Lights Industrial Indoor Outdoor Workshop Garage 100w 200w 300w LED Linear High Bay Light
Optional Top Brand LED Chip Cree/Samsung/Nichia/Lumileds
No less than 140lm/w
IP65 for long term use dustproof and waterproof
Warm white/day white/cool white for various application
Meanwell driver with 7 years warranty
Superb heat dissipation design for longer lifespan
Dimmable by PWM/1-10V/DALI for smart control
Flexible Installation way for different application
ETL pending
5 years warranty
Quality Control
1.A series of testing like shaking test,low and high temperature test(-20°C~ 45 °C)drop testfrom the height of 1.2m in 6 directions, hi-pot test 4800V for 1 min and so on.
2.QC in every production process
3.Great material for heat sink:
Aluminium board and Aluminium housing guarantee double heat releasing to avoid light depreciation and prolong lifespan up to 50,000Hrs
Applications
led linear high bay can be used in Warehouse and workshop Lighting / Greenhouse and Hydroponics Lighting / Tunnel and Project Lighting / Garage and Parking Lighting / Outdoor Sports Lighting / Indoors Court Lighting
Packaging
Standard export packaging or customized according to customer requirements
