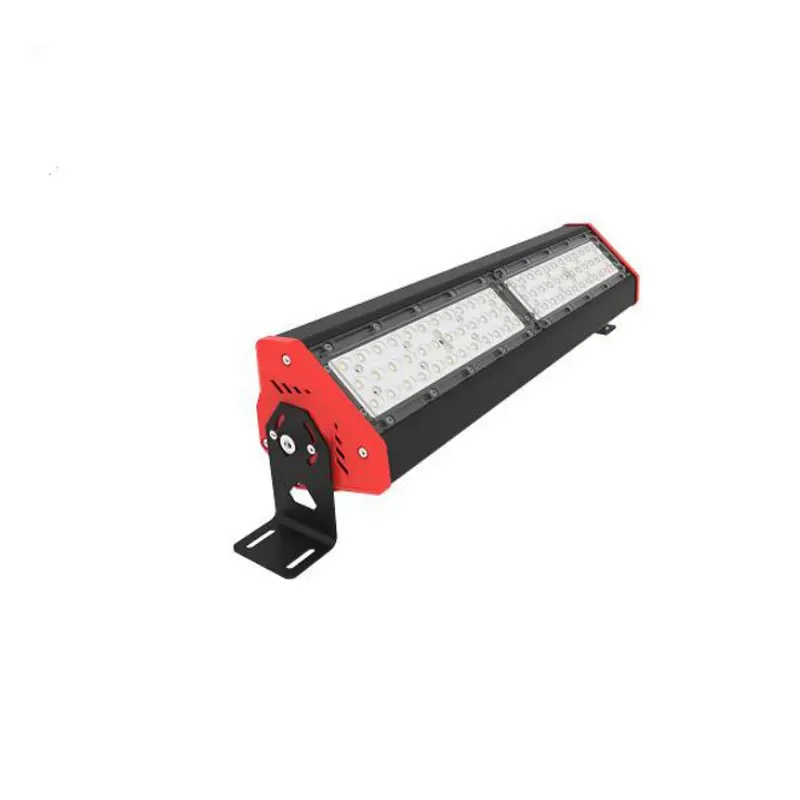

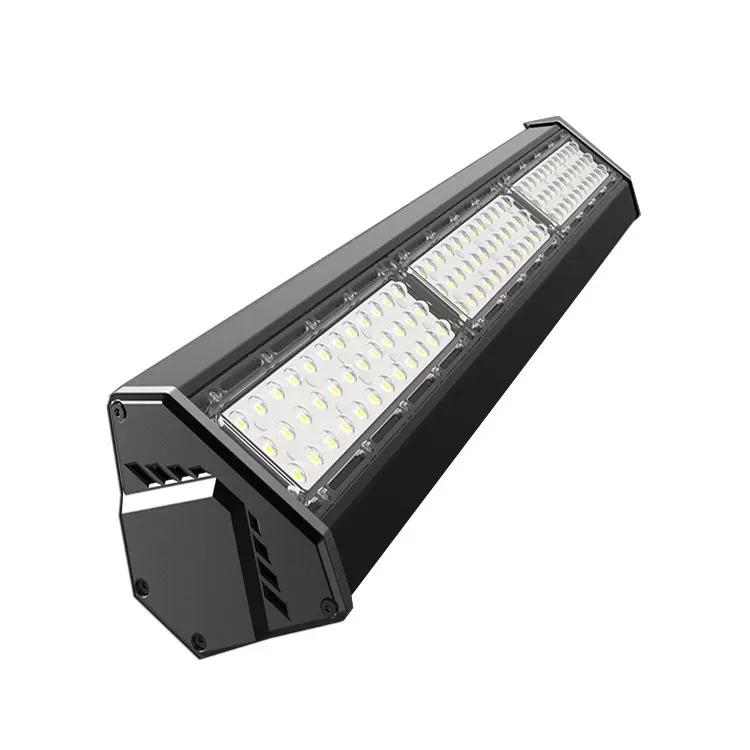

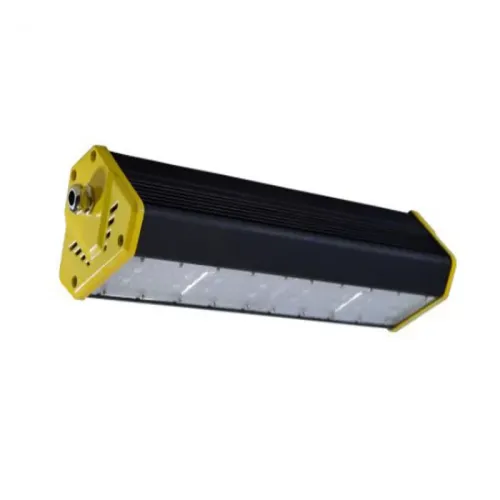

Dimmable LED Linear High Bay IP65 50W 100W 150W 200W Use In Factory Warehouse

LED Linear High Bay IP65 50W 100W 150W 200W
  • Specification:
    Input Voltage: AC90-305V/AC180-528V
    Lumens: 140Lm/W
    LED Source: SMD3030 OSRAM
    Lamp Body Material: Aluminum
    IP Rating: IP65
    Warranty: 5 Years Warranty
Description
Description

Dimmable LED Linear High Bay IP65 50W 100W 150W 200W Use In Factory Warehouse





Product Description



MS Linear high bay and low bay lighting is commercial and industry leading fixtures.With 130lm/W light output,they are ideal choices for replacing fluorescent and MH lamp source.LiBayTM lighting bring new levels of performance,technical innovation and unique design to outdoor and indoor use.





Features



1.Unique appearance design,different from traditional high-bay light,fashion,compact,beautiful,can be customized;
2.High light effect Seoul Semiconductor and CREE LEDs optional,and light output can be up to 130lm/W.
3.Anti-glare design,better protect eyes;
4.Modular design,different power and length can be customized;
5.Meanwell power supply,PF>0.9;
6.Ceiling installation and suspension installation,quick and convenient;installation can be finished by single person in 3 minutes;
7.Black and silver color optional.







Specification



Wattage 100W 150W 200W 240W
Lamp Luminous 14000-16800 21000-25200 28000-33600 33600-42000
Flux (lm)
Length (mm) 600 900 1200 1500
Length (ft) 2ft 3ft 4ft 5ft
Item Type LED High Bay light
Light Source Epistar SMD2835
Beam angle >120°
Warranty 5 Years
Power factor >0.95
Led driver Meanwell driver(Internal)
Installation Suspending / Surface mounted
Input Voltage 100-277/347VAC 50/60Hz
CRI >80
Working Lifetime 50000Hrs
Working Temperature -4-122℉(-20-50℃)
Lamp Body Material Pure Aluminum Housing
IP value IP65
CCT Warm White, Neutral White, Cool White, (2700-6500K).
Lamp Luminous 140lm/w+10%
Efficiency (lm/w)
Certification DLC Premium UL/ETL/TUV /SAA





Details



1. Unique and modular design, low weight.
2. Unique cold forging aluminum heat sink, 3 times better than die-casting in heat dissipation.
3. Lumileds LED.
4. ADAYO driver/Meanwell HVG(5 years warranty), Meanwell Driver HLG series driver(7 years warranty).
5. 130lm/w, UL/DLC/CE/ROHS approved.
6.UGR<22 solution for option.
7. Motion and daylight sensor for option.







Applications



Suitable for large workshop,warehouse,parking lot,shopping mall,farm,gas station and other places.






Factory





Packaging



Standard export packaging or customized according to customer requirements
