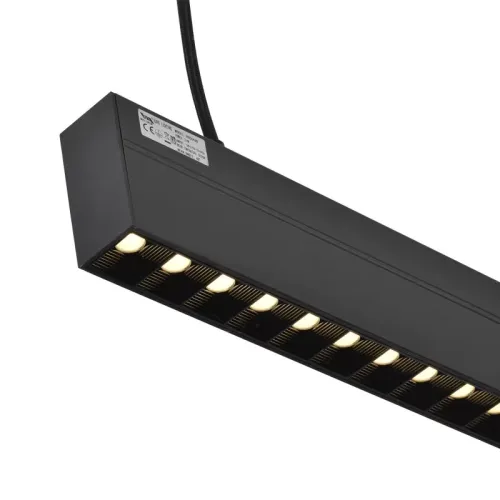

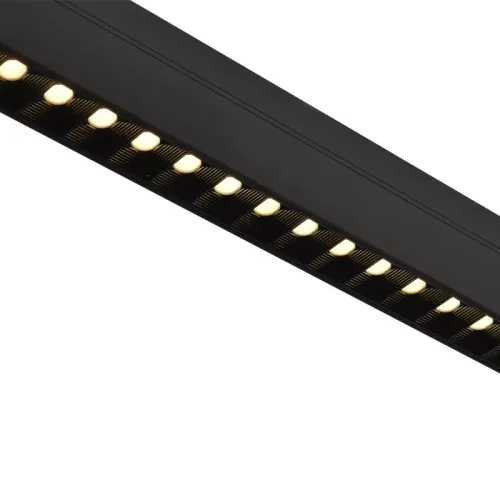

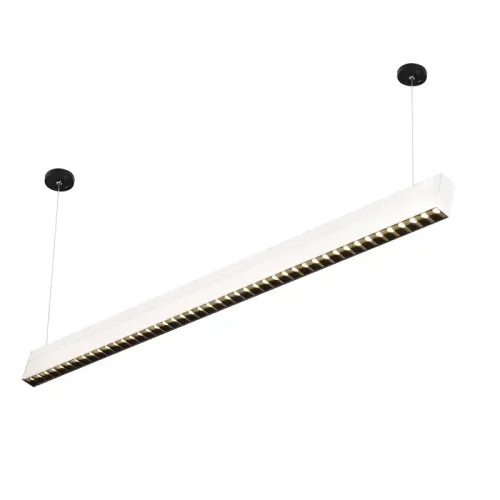

DLC Linear Led Pendant Suspended Panel Lighting 40W Led Linear Up And Down Light
LED Linear Light is a sleek linear system,bringing high-quality LED illumination,with guaranteed compatibility between LED fixture, driver and controls.According to the installing ways,they are devided into 3 kinds:surface mounted linear recessed linear and pendant linear light.The LP06 Series linear light is full round type which designed as the suspensed pendant light.
Features
led linear suspension lighting
linear led pendant light is a high lumen, thin, beautiful appearance, safe and reliable, convenient installation and easy maintenance linear light,
is an industrial grade luminaire which is ideal for retail, commercial and industrial applications.
Beam Angle: 180 °.
Available in 1x4 and 1x8 models.
Emergency system is available.
Standard finish is powder coat textured white. Optional silver, black or custom color paint finishes.
Standard dimming control: 0 ~ 10 V dimming.
IP Grade:IP44
Labels: ETL listed, conforms to UL Standard 1598 / 8750 and CSA Standard C22.2, Damp location.
Application: suit for the garage, warehouse, basement and car parks and other places to provide general illumination.
Warranty: 5-year limited warranty on LED and Driver.
Specification
led linear suspension lighting
|
Input power
|
30w
|
60w
|
90w
|
120w
|
|
Luminous Flux
|
3300LM
|
6600LM
|
9900LM
|
13200LM
|
|
Input Voltage
|
100-277V AC
|
100-277V AC
|
100~277V AC
|
100-277V AC
|
|
CRI
|
>80/95
|
>80/95
|
>80/95
|
>80/95
|
|
CCT
|
3000,4000, 5000,6000K
|
3000,4000, 5000,6000K
|
3000,4000, 5000,6000K
|
3000,4000, 5000,6000K
|
|
Mounting
|
Suspended
|
Suspended
|
Suspended
|
Suspended
|
|
Lifetime
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
50,000 hours
|
|
Warranty
|
5 years
|
5 years
|
5 years
|
5 years
|
|
Size
|
600*75*75mm
|
1200*75*75mm
|
1800*75*75mm
|
2400*75*75mm
|
|
Dimming Solution
|
Triac/0-10v/ DALI
|
Triac/0-10v/ DALI
|
Triac/0-10v/ DALI
|
Triac/0-10v/ DALI
|
|
Light efficacy
|
110LM/W
|
110LM/W
|
110LM
|
110LM/W
|
|
IP rating
|
IP40
|
IP40
|
IP40
|
IP40
|
Details
suspended linear led lighting
Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.
Light Source
Using the energy-saving highlighting 2835 SMD LED light source.
Distributed LED array in a variety of lumen output packages.
LED color is available in 2700-6500K. Module is replaceable.
Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.
Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.
Best Heat dissapitation---6063 Aluminum Profile,good housing
Aluminum PCB with better heat dissapitation,Qualtiy 2835LED with LM-80 test report
Flicker-free Driver built-in,make sure your safety,and PF>0.97,make sure high efficiency
Applications
LED linear lighting can be Use in Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room.
Installation
Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed
Packaging
LED Linear Lighting Standard export packaging or customized according to customer requirements
