E40 Base High Bay Bulb High Bay LED Warehouse Lighting 50W 80W 120W 140W 150W 180W

Industrial High Bay LED Warehouse Lighting
  • Specification:
    Watt: 30W 50W 60W 80W 100W 120W 150W 180W 200W 250W 300W 350W
    Luminous Efficiency: 90 - 120Lm/W
    Base: E40 E39 Or Hook
    Input Voltage: AC100-277V
    LED Chips: CREE Or Or Samsung Chips
    Ra: >80
    CCT: 2800K-7500K
    Lamp Body Material: Fins Aluminum Alloy + PC Cover
Description
Description

E40 Base High Bay Bulb High Bay LED Warehouse Lighting 50W 80W 120W 140W 150W 180W



200W


Features

1, high-power LED as the light source, can be instantaneous cold start and hot start; the average life of more than 50,000 hours in the life of the product without the need to replace the light source, dramatically reducing the cost.
2, high efficiency light source, low power consumption, good color, power factor> 0.95, no flicker, no glare, which can effectively avoid staff eye discomfort, which can effectively avoid visual fatigue, improve work efficiency.
3, 6063 aluminum shell lamps, lamp surface for oxidation treatment, beautiful appearance, high strength; heat dissipation area, reduce the lamp failure rate and prolong lamp life.
4, transparent parts lamps used, after a special steel processing, transparency, impact resistance, and thermal characteristics of upheaval.
5, each of the joint fixtures are made of high temperature resistant, anti-aging silicone for sealing process, reliable waterproof, anti-dust, it can be used in a variety of harsh environments and long-term.
6. Aluminum or Acrylic Reflector 45° 60° 90° 120° are optional for your choose, and can be sold separately.
7. Dialux light solutons can be customized free to help you catch more projects opportunities.




Specification



Specification
Power 30W 50W 60W 80W 100W 120W 150W 180W 200W 250W 300W 350W
Material Aluminum Alloy
LED Chip Epistar / Bridgelux / CREE / Phillips
LED Driver SOSEN / MEANWELL
Luminous 90-120LM/W
Color Temperature 2700 ~ 7500K
CRI Ra ≥ 80
Beam Angle 45° 60° 90° 120°
PF >0.9
Working Life ≥50000 hrs
Warranty 5 years
Dimensions
Finishing Color Silver
Wire connection L(Brown) ; N(Blue) ; G(Green/Yellow)
Watts option 30W 50W 60W 80W 100W 120W 150W 180W 200W 250W 300W 350W
Weight According to power
Lamp Size According to power
Install type Hanging, Holder
Package Size box size: 36*36*40cm
1PC/CTN
Work Environment
Input Voltage AC85-265V 50-60Hz ( AC375V , DC12V , DC24V available on request))
Operating Temperature -20~ + 60°C
Application
Application Widely used in the workshop, factory, warehouse, highway toll stations, gas stations, supermarkets, exhibition halls, stadiums and other lighting places.

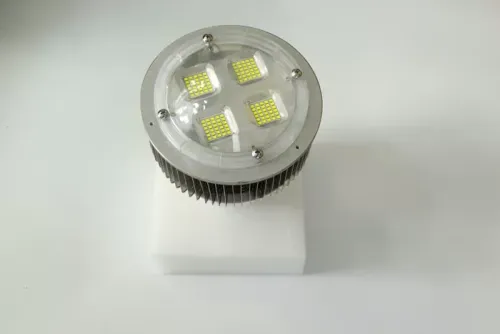

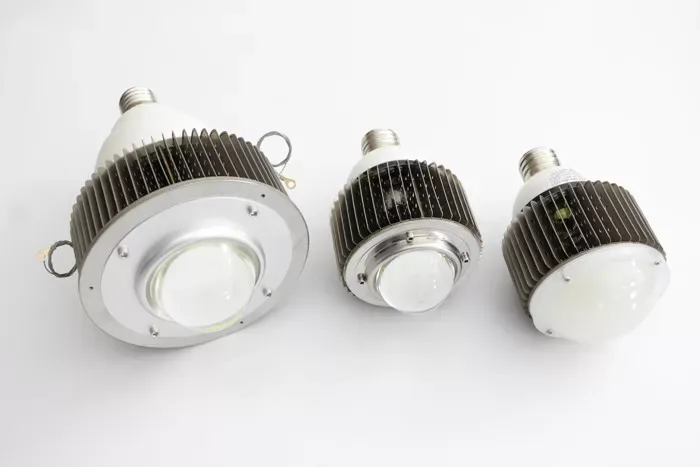

Details

1. To use Fin sheet heat sink, 10 times heat disspation effect compare regular led light heat-sink
2. Small size, light weight with E27 or E40 socket
3. With 90° or 120° lens, no need refector.







Application


1, used in corporate plant lighting
2, used in warehouse lighting
3, the company applied to the high-speed toll station lighting
4, applies to gas stations, supermarkets, exhibition halls, stadiums and other places need to focus on lighting
5, can directly replace the incandescent lamp, energy saving lamps, lamp, mercury lamps, sodium lamps without changing the original holder.


Instruction manual


1, depending on the lighting requirements, determine the installation position lamps, select the appropriate installation, the lighting fixed; and ready corresponding private three-core cable lengths.
2, the prepared three core input cable polarity corresponding to the input terminals of the lamp.
3, power can achieve lighting.



Precautions


1, when the transport will be equipped with lamps installed within the carton.
2, when used, has some light surface temperature is a normal phenomenon, light surface temperature is higher, not touch. When you install or use, the lamps do not close to combustible material.
3, in the installation, you must disconnect the power supply when maintenance of lamps.
4, lamps keep the surface clean, help heat lamps can reduce lighting failure and prolong life.
5, non-professionals do not disassemble or replace lighting accessories.








Package

Option 1: Neutral packing
Option 2: Neutral packing + your own labels
Option 3: Customized design packing (color boxes)
