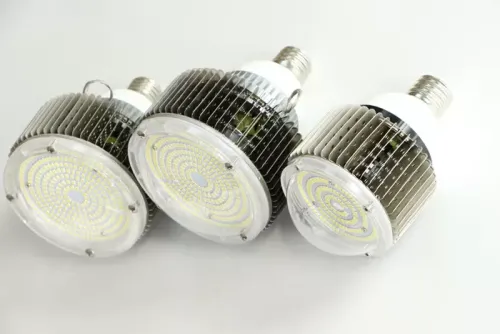

E40 Base High Bay Bulb High Bay LED Warehouse Lighting 50W 80W 120W 140W 150W 180W
200W
Features
1. Epistar COB or Cree/ adopted, delivering 120 to 140 lumen per watt, converting more power to light.
2. Patented passive cooling solution to manage surface temperature rising of luminaire at 30℃, junction temperature of
led chip controlled at 100℃.
3. Optical glass led lens with a light transmission more than 93%, offering the least light output loss, special rectangle
shape designed to have a symmetric beam patter.
4. Beam angle with 120°, 85°, 65°and 45°
5. Color temperature 2700k-6500k, usually 3000k/5000k
6. 50000 hours lifespan putting the luminaire replacement circle to 20 years.
7. IP65 water and dust proof, and aluminium alloy fixture with corrosion resistant.
8. Power factor at 0.99.
9. Easiest installation and maintenance, each part is replaceable.
10. 3 years warranty, 5 years as optional.
Specification
| Optical parameters | |||
| Power | 50W 60W 80W 100W 120W 150W 180W 200W 250W 300W 350W | ||
| LED chips Brand | CREE / Pilips 3030 SMD | ||
| Color Temperature | 3000K/5000K (2700K~6500K optional) | ||
| LED Efficacy | 120-140Lm/W | ||
| Luminous Efficacy | 90-110Lm/W | ||
| CRI | Ra65-80 | ||
| Material of LED Lens | Optical glass | ||
| Light Transmission of LED Lens | ≥93% | ||
| Beam Angle | 45,65,85,120 | ||
| Electrical parameters | |||
| Input Voltage | 180~260V / 90~130V AC | ||
| Output Current | 0.16A | ||
| Total Power Consumption | 30W-350W | ||
| LED Power Consumption | 30W-350W | ||
| Power Factor | 0.99 | ||
| Power Efficiency | ≥86% | ||
| THD | ≤15% | ||
| Others | |||
| HID Replacement | 100W-1000W | ||
| Average Lifespan | 50000 hours | ||
| IP Rating | IP54 | ||
| Fixture Material | Aluminum Alloy | ||
| Installation | E40/Rigid Mount | ||
| Ambient Temperature | -25~+45℃ | ||
| Maintenance Cost | Power Supply Part | 30% | |
| (Based on Order Price) | LED Part | 70% | |
Details
Led Warehouse Lighting Fixtures High Bay Bulb adopts a single mini-watt led chip designed by serial and parallel connection, which has better heat dissipation compared with COB LEDs, and more uniform distribution of light. Adopted the electrolytic capacitor of Rubycon in Japan, the Power Supply gains longer life. The radiator uses sunflower hint sink, which therefore gets a better heat dissipation.As its Production Compliance and EMC are designed and produced according to EN62031,EN60061,EN62471,IEC60598 standard, so users just need to connect wire in accordance with Instructions and Specifications, furthermore the replacement is easy and convenient .
Production line
Installation
Direct replacement the traditional CFL And Metal Halid Lamps
Application
indoor using,warehouse, lobby,office, supermarket,ect...
Package
Option 1: Neutral packing
Option 2: Neutral packing + your own labels
Option 3: Customized design packing (color boxes)
