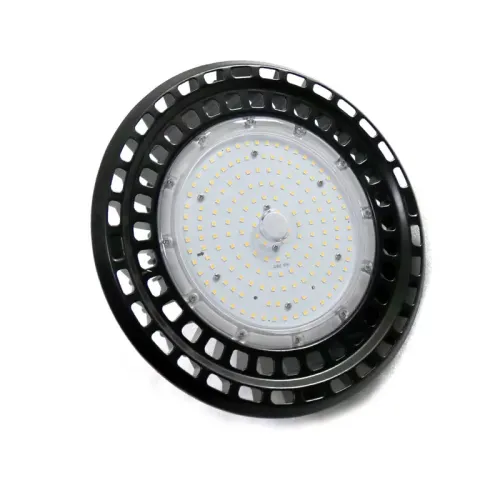

Easy Install Hook UFO LED High Bay Dimming Light 80w 100w Gas Station Light
Features
Hollow heat sink design increase more airflow for better heat dissipation.
LED and heat sink are parallel, no dark area, no shadow.
SMD 3030 LED Chips, 130lm/w.
LED junction temperature less than 85℃.
Meanwell HBG driver.
Waterproof IP65 design, suitable to damp & wet location.
Four dimensions. Lighter weight and smaller volume can help customer save freight cost.
Two installations: Bracket & Hooking Hang for options.
LM79/LM80/IES reports available.
ETL/CE/RoHS/FCC/LM80 certification.
5 years warranty.
100w UFO LED High Bay Light Specifications
| Model | MS-HAU-100 |
| Watt | 100W |
| Lumens | 13000LM |
| LED Chips | 3030smd |
| Efficacy (IES) | 130LM/W |
| Input Voltage | AC100-277V, 50-60Hz |
| Color Temperature | 2700~6500K |
| CRI | >80 |
| Power Factor | >0.9 |
| Beam Angle | 60°, 90°, 120° |
| Lumen Maintenance | L 70>50,000 hrs |
| Mounting Options | Bracket & hooking hang |
| Material | Aluminum alloy |
| Dimension | Φ280*165mm |
| IP Grade | IP65 |
Details
Air Ventilation, Heat Management
Great air ventilation structure to decrease 30% heat generated compared with other similar products.
High advanced heat conducting structure, and die casting aluminum to reduce working heat and prolong the usage life.
High Efficient Optical lens
Integrated light lens creating professional beam.
Multiple beam angle options available for different applications.
Top grade PC materials, high UV protection, unti- shock design.
LED Light Source
140lm/W
CRI > 70Ra(80-95Ra available) 50,000h life
Wide colour temperature options
Low colour shifting and low light decay
High Standard waterproof Power Supply
Metal housing design with functional Ground
IP67 / IP65 rating for outdoor installations
Typical lifetime>50000 hours
5 years warranty
Distribution Curve Flux
100W UFO High Bay Light Size
Applications
1. Warehouse Lighting, Factory Lighting, Industrial Lighting
2. Garage Lighting, Workshop Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Supermarket Lighting, Store Lighting
5. Tunnel Lighting, Bridge Lighting
6. Gas Station Lighting
Installation
Hooking Hang
Bracket
Packaging
Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
