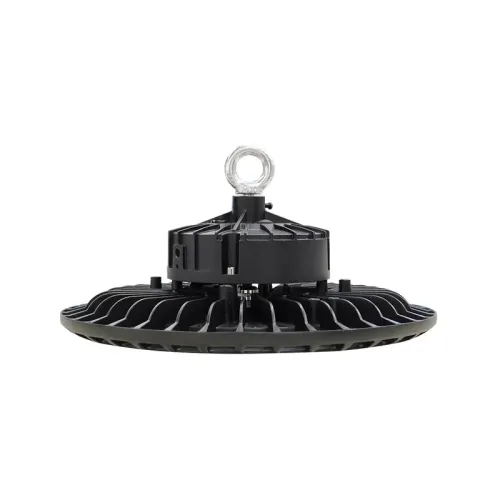

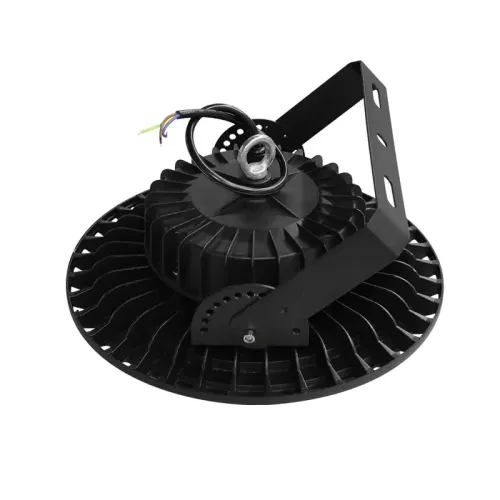

ETL DLC 150LM / W UFO LED High Bay Light 150W Replace 400W Metal Halide High Bay
MINSENS’s HBU series of LED commercial low-profile highbay fixture provides a quick and easy solution for warehouse and industrial applications. The low-profile height allows for efficient packaging, as well as accomodates applications where a low hanging fixture is undesireable. Available in 120W, 150W, and 240W variants, designed to replace traditional 250W-1000W HID equivalent highbay fixtures. Fully sealed construction allows for wet location installation where direct contact with water is necessary. Light output is dimmable through standard 0-10v system control leads. Constructed out of heavy duty cast aluminum with an integrated thermally efficient heatsink profile, each fixture is rated for a mini L70 of 50,000 hours.
1. Die-casting aluminum casting+toughened glass+waterproof rubber gasket.
2. High reliability;
3. Low maintenance cost;
4. Easy installation with no ballast & starter needed;
5. Energy saving with low power consumption;
6. Green and eco-friendly lighting source without mercury or lead;
7. 50,000 hours operating lifetime, and 5-year warranty time.
8. High lux Epistar or Briglux Chip.
9. Start without noisy and flickery free.
10. Warm, natural and pure white are available.
11. Idea heat dissipation design.
12. High shock and vibration resitant.
13. No UV&IR or other harmful radiation.
|Power||100W 150W 200W/240W|
|LIGHT EFICIENCY||140 LM/W(60° 90°) 150 LM/W(110°)|
|WORKING TEMP||-40℃ --- 40℃|
|Beam angle||60° 90° 110°|
|Mounting Height||Up to 30-60 ft|
|THD||4.9% at 120V, 11.7% at 277V|
|Power Factor||99.4% at 120V, 95.2% at 277V|
|Weight||3.0KG(100W) 4.2KG(150W) 5.0KG(200W/240W)|
|Certificate||ETL CETL DLC|
Luminaire: ultra-bright OSRAM 3030 SMD LED
1.1-1.5W 140lm/w SMD 3030 chip.
2. CRI >80
3. LM80 test report.
4.Lifespan over 50000hrs.
1. External driver: Meanwell driver 5 years warranty, regular Driver: 3 years warranty
2. High efficiency , low power consumption
3. The integrated constant current power supply ensures steady performance and long lifespan.
4. Great driver quality, flicking free.

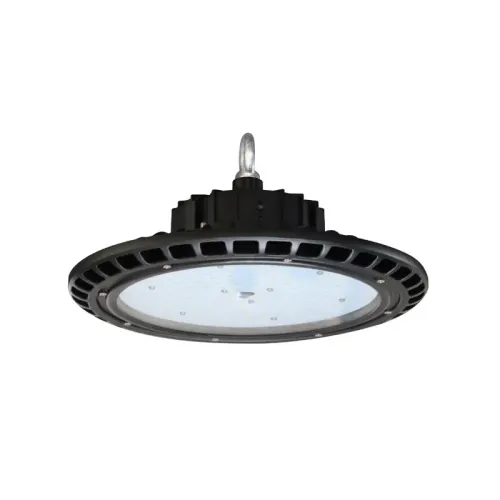

Lens for UFO High Bay Light
1. Beam angle:60°,90° and 120°.
2. Anti-glare with lens.
3. Focus light,no harm to eye.

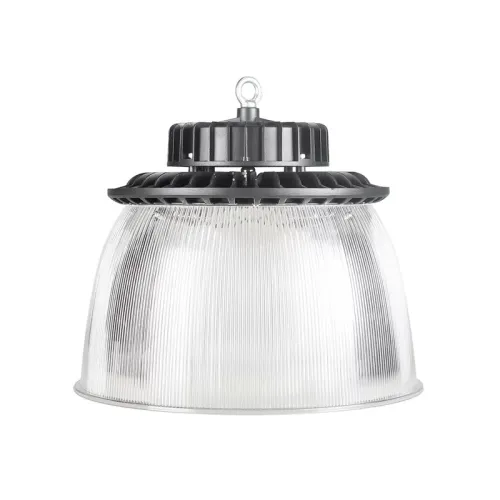

Reflector for UFO High Bay Light
1. Made of PC or Acrylic.
2. Good look for commercial area.
1. Warehouse Lighting, Factory Lighting, Industrial Lighting
2. Garage Lighting, Workshop Lighting
3. Outdoor Area Lighting, High Mast Lighting
4. Supermarket Lighting, Store Lighting
5. Tunnel Lighting, Bridge Lighting
6. Gas Station Lighting
Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
