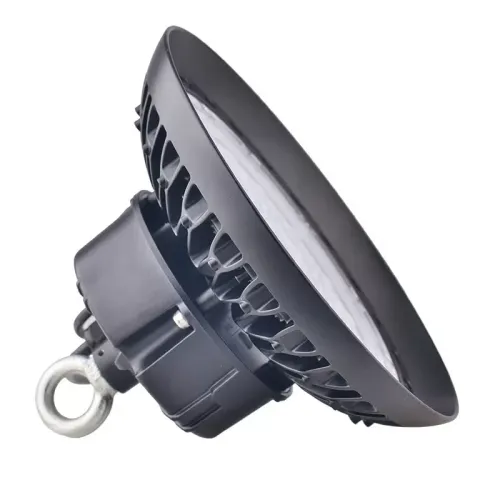

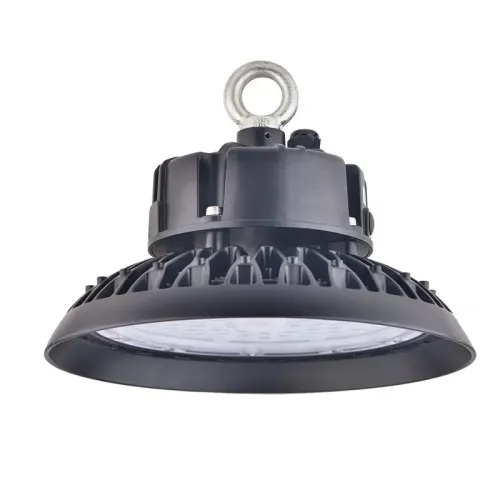

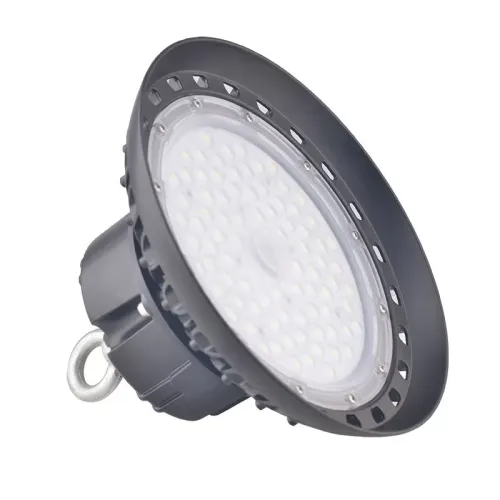

Factory OEM 5 Years Warranty 13000lm 100w Ufo Led High Bay Light
Description
ufo high bay led lights
1.Replace conventional high bay light;
2.Precision die cast aluminum housing;
3.Fade resistant powder coat finish;
4.Easy installation;
5.TUV ETL SAA FCC CE ROHS listed.
Features
1.Beam angle : 60 / 90 / 110 degrees.
2.Aluminum die casting heat sinks is good for heat dissipation.
3.It's major to replace the conventiona high bay light.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.
Specifications
industrial high bay led lights
| Power | 100W | 150W | 200W |
| Model | MS-UHL-100W-B | MS-UHL-100W-B | MS-UHL-100W-B |
| Replacement | HPS 300W | HPS 450W | HPS 600W |
| Luminous Flux | 13000lm | 19500lm | 26000lm |
| Light Source | SMD LED | ||
| Luminous Efficacy | 130lm/w standard,available in 150lm/w,160lm/w,170lm/w,180lm/w,190lm/w | ||
| IP | 65 | ||
| Voltage |
100-277VAC/50-60Hz
|
||
| CRI | 85 | ||
| Sensor | Microwave sensor,optional | ||
| Operation Temp. | -40 to +45℃ | ||
| CCT | 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW | ||
| Life Span | 50,000 hours at 25℃ | ||
| Dimming | NO | ||
| Model Differences | Different installation accessories:A-Ring mounting,B-Bracket mounting | ||
| Beam Angle | 60° 90° 110° | ||
| PF | >0.95 | ||
| Cover | Lens / Glass | ||
| Control System | APP,remote control,touch screen,light control and other control options available | ||
| Warranty | 5 Years | ||
Details
industrial led high bay lighting
LED constant current driver with high efficiency.
Stable and Uniform lighting. --Start quickly in a short time.
No stroboscopic and no glare.
The scientific design of the product is good at heat dissipation.
No mercury or lead; More environmentally friendly materials --Save 60% energy than traditional lights.
BV,CE,LVD,VDE,EMC,RoHS certified and so on.
Applications
1.Parking area lighting;
2.Ceiling lighting;
3.Warehouse lighting;
4.High / low bay lighting.
Dimensional Drawing
Luminous intensity distribution
Projects
By using our 100w high bay light to replace 300w metal halide bulb for warehouse high bay lighting fixtures,the customer is now able to save a lot per month from his electric bill.
Packing INFO
