Factory UL IECEx ATEX Certificate 20w 30w 40w 60w 80w 100w 120w 150w 180w 200w LED Explosion Proof Flood Light

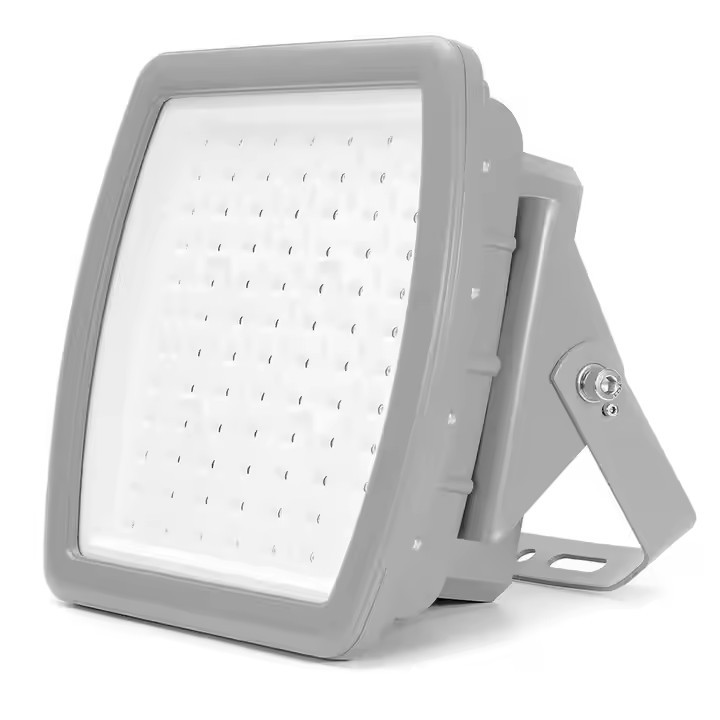

Product DescriptionMS EX explosion-proof floodlight is more than 50,000 hours lifespan, and the maintenance is reduced to 30% of the double input cost of the traditional lighting system. At the same time, it features a well-de-signed optical system, high luminous efficiency and a variety of beam Angle options. ADC12 die-cast aluminum, 8mm tempered glass has better shock and vibration resistance. There are a variety of instal-lation methods for your different projects. UL1598A North American marine anti-corrosion can be used in marine application and hazardous areas Zone 1&21, Zone 2822.
FeaturesPatent designed for explosion-proof protection peformance. Aluminum alloy body, maximize the best heat transmit.
PC cover, excellent anti-corrosion performance Shock vibration resistant, Anti-gare, >90%light transmit.
Perfect to replace the traditional explosion-proof fluorescent lightlamp shape.
LED: LM80 certified, 120-140 Im/W, up to 14000 lumen flux.
High Efficiency LED driver,more than 50000 hours lifespan.
Circuit design: 4KV/6KV Surge Protection power supply.
Protection: IP66,high protection grade for waterproof and dust-proof.
Product Parameters
| Product Model |
J20/J30/J40S |
J60/J80/J100 |
J120/J150/180/J200 |
| Type |
LED Explosion proof Flood Light |
| luminous efficency |
140 lm/W |
| Power(W) |
20W/30W/40W |
60W/80W/100W |
120W/150W/180W/200W |
| Voltage-Frequency |
100-277Vac 50-60Hz |
| Color Temp |
5000K (Provides 2700K to 6500K) |
| CRI(Ra)(typ.) |
≥70 |
| Power Supply |
Meanwell LED Driver |
| Beam Angle |
90°, 120° |
| Power Factor |
>0.95 |
| Rated Lifetime-L70 (hrs.) |
>50,000 |
| THD |
<10% |
| Operating temperature |
-40°C ~ 55°C |
| Entry Size |
3/4’’-14 NPT or M25 X1.5 or M26 X1.5 |
| Cable |
*Emergency optional: Emergency power: 12W Emergency time: ≥90min Battery: Li-ion battery- 11.1V/2500mAH |

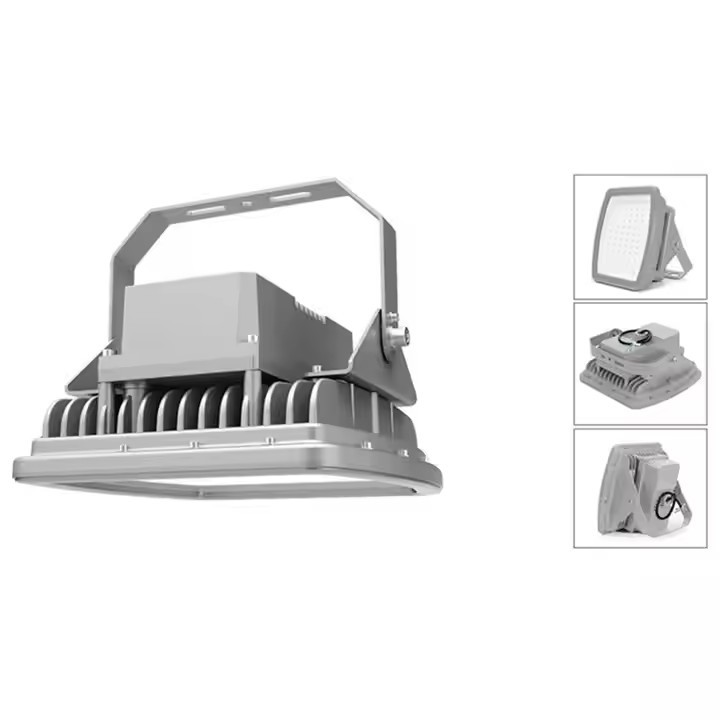

Detailed Photosit features a well-de-signed optical system, high luminous efficiency and a variety of beam Angle options
High transmission lens,the lens are made of 8mmexplosion-proof toughened glass
LED light source, highcolor rendering wideexposure area calorificvalue less
Rotatable brakets get anyangles
Power Protection
High efficiency LED Driver,>90% driver efficacy
Circuit design: 4KV/6KV Surge Protection power supply
ApplicationsLED Explosion Proof Flood Light can be widely used in Wastewater treatment, oil and gas refineries, drilling rigs, offshore platforms, petrochemical facilities, chemical plants, coal mines, aviation bases, food plant, Pharmaceutical plant, beverage facilities, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
Production line
Installation
Packing and shipping
