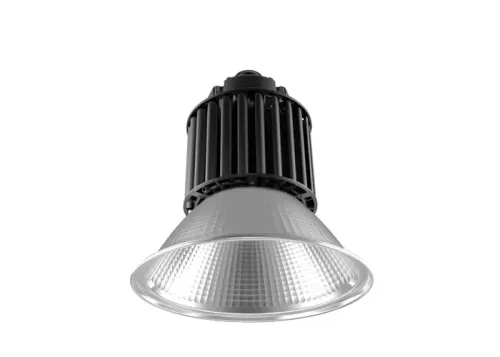

Factory Warehouse Indoor Industrial 150 Watt Led High Bay Light With 3030 Chips

Warehouse Indoor Industrial 150 Watt Led High Bay Light
  • Specification:
    Item Type: 150 Watt Led High Bay Light
    Watt: 150W
    Lumens: 18000Lm
    Power Factor: PF>0.95
    Input Voltage: AC100-305V
    Ra: >80
    CCT: 2800K-6500K
Description
Description

Factory Warehouse Indoor Industrial 150 Watt Led High Bay Light With  3030 Chips





Description



1. High efficient Heat PIPE. Better perfermance in heat dissipation.
2. High lumen output, high luminous efficacy 3030 SMD LED.
3. No UV or IR(infra-red) radiation, no mercury or lead, eco-friendly.
4. Pure copper heatpipes directly touch the heat source which could quickly transfer heat to the heatsink with the heat transfer rate over 200 times of aluminum radiator.
5. Instant start, no flickering and comfortable view color.
6. Passed LM80.
7. CE&ROHS,TUV,FCC.C-Tick,CB and etc.
8. Flicker free by camera
9. Environmentally friendly, no mercury, No UV, No IR
10. Energy Efficiency Grade: A++
11. 3-years-warranty & 5-Years-Warranty(Chinese Driver & Meanwell Driver).
12. Quick Start instant 100% luminous flux.
13. The lampshade is fixed by rotatory buckle,and can be easily installed without the help of any tools.



Features



1. Large PCB board makes good heat radiation.
2. Using high quality aluminum, excellent dissipation, lower lumen decay, longer life.
3. Using super bright 3030 SMD, higher efficiency.



Specification



Model No.: MS-HLH-150W
Power: 150W
Working voltage: AC90-305V, 50/60Hz;AC180-277V
PF: > 0.97
IP Grade: IP54
TECHNICAL CHARACTERISTICS
Color: Warm White Natural White Cool White
Color Temperature: 2700-3200K 4000-5500K 5700-7000K
CRI: >80Ra >80Ra >80Ra
Light Efficiency: 130-140lm/w
View angle: 30°, 90°, 120°
CONFIGURATIONS
LED chip: 203pcs 3030 SMD LED
Heat sinks: Aluminum
Body color: Black
OTHERS
Operating Temperature: -35℃ - 50℃
Operating Humidity: 10% - 90% RH
Storage Temperature: -35℃ to 60℃
Net W./Gross W.: 4.2KGS/4.9KGS
Packing size: 27*27*34cm/inner carton; 55*55*36cm/external carton(4pcs)
Warranty: 5 years
Certificates: CE, RoHS, SAA, ETL





Details



Pure copper heatpipes directly touch the heat source which could quickly transfer heat to the heatsink with the heat transfer rate over 200 times of the aluminum radiator



Four kinds of installation

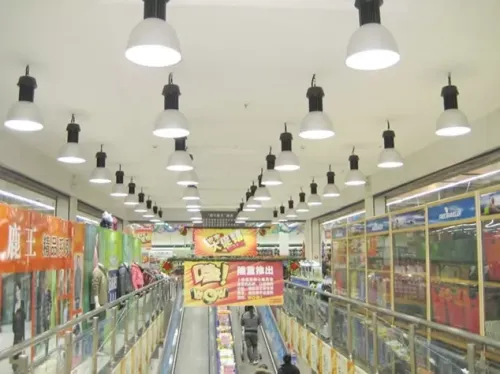

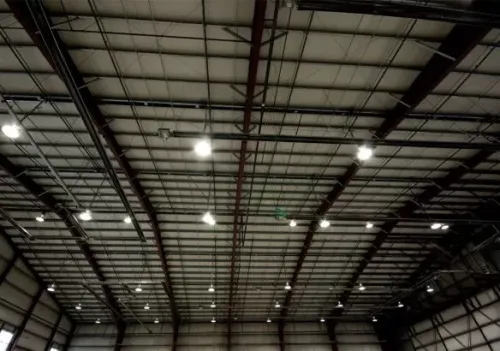

Application



Warehouse, workshop, supermarkets, exhibition room, hall, toll station, gas station, residential areas, industrial areas, etc.





Package



Standard packing, Contains shockproof foam
