Fully Automatic Outdoor Ip65 Integrated Garden 30w Solar Led Street Lighting Fixtures

Outdoor Ip65 Integrated Solar LED Street Light
Description
Description

Fully Automatic Outdoor Ip65 Integrated Garden 30w Solar Led Street Lighting Fixtures


Features

1. Anti-oxidation die casting aluminum shell, one-time stamping, made of multi-channel baking process, effective anti-rust;
2. Adopt optional chassis, adjust the direction angle of the solar panel arbitrarily;
3. Adopt high-capacity lithium batteries, the cycle usage of batteries up to 500 times;
4. The use of multiple LED chips to improve the efficiency of light and with better heat dissipation;
5. Using Intelligent remote Control: Intelligent Remote control + light control, many different mode for your choice, controls the light time arbitrarily;
6. Easy installation: It only have a light head and solar panel, you just need to install it one the pole, it will work. No cable;
7. Low weight to save your shipping freight. The total cost is much cheaper than normal solar lights;
8. Environmental friendly, save your electric charge.
9. Solar powered outdoor lights



Specifications


solar led parking lot lights
Power 10 W 20W 30W 50W
Luminous flux 1500 LM 2400 LM 3600LM 5800LM
Poly crystalline solar panel 6V 8W 6V 12W 6V 15W 6V 15W
Lithium battery 3.7V 3.7V 3.7V 3.7V
8000mA 10000mA 12000mA 14000mA
Charge Time 5H 5H 5H 5H
Lighting Time 16H 16H 16H 16H
Solar Panel Size(MM) 350*235*17 370*305*17 420*370*17 420*370*17
Lighting area 40m2 60m2 80m2 100m2
Installation height 3M-4M 3M-5M 4M-6M 6M-8M
Installation distance 9M-12M 9M-15M 12M-18M 18M-24M
Light efficiency 150LM/W 120LM/W 120LM/W 120LM/W
Light source SMD5730
Material High quality die-casting aluminum alloy
Light degradation rate 25000h ≤ 20 %
Color rendering index Ra ≥ 80
Power factor PF ≥ 0.9 6
Rated life ≥ 50000hours
Color temperature 3000K-7000K
Working temperature - 30 ~+ 5 0° C
Input Volt age DC12/24V
Beam angle 60 °* 12 0 °
IP code IP 65 waterproof & dustproof
Brand YANGFA & Customized
Warranty 2 years warranty
Certificate CE, RoHS, SAA, EMC,MSDS
Application garden , courtyard , road , parking lot, out door, etc.
Available color Silvery white/ customized



WHY CHOOSE US?
OUR VALUE MESSAGE IS "QUALITY IS OUR CULTURE‘


1. 9 years' experience in solar control system, 6 years experience in motion sensor control.
2.Competitive Advantage Product.
2.Socreat solar street led lights are successfully appiled in more than 120 countries.
3.Patent product, IS09001, CE, RoHS, FCC, CQC, IP65, etc.
4.Offering 3-5 years warranty.
5. Lead time: samples within 3days, bulk order about 5-10 working days.

Standard lamp arm interface
Can be used for a variety of pick-and-arm interfaces,
more user-friendly design, only for your convenience, save resources

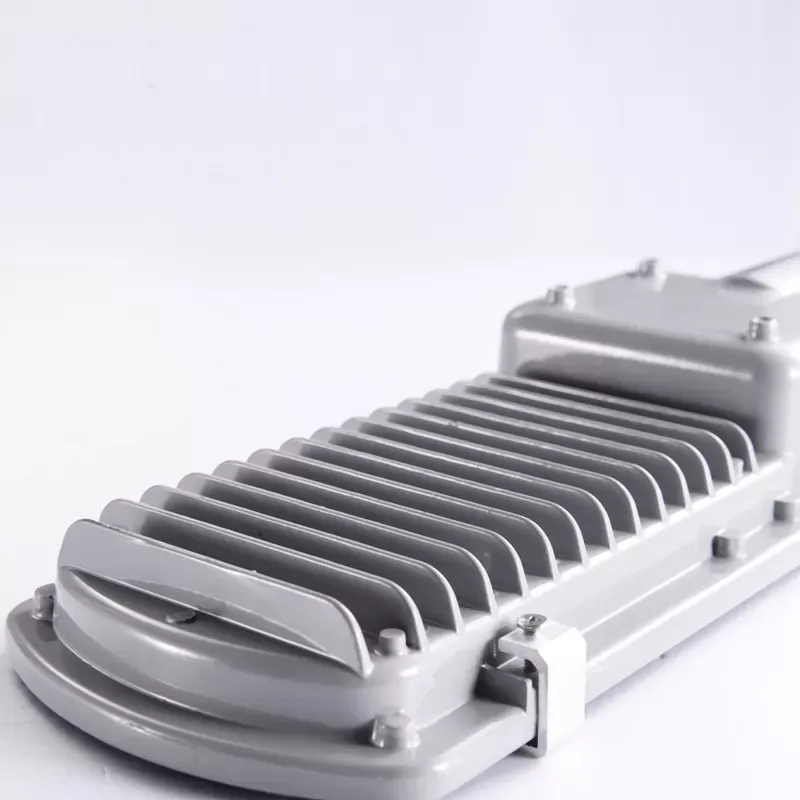

Aluminum die-cast housing
The aluminum aluminum die-casting shell has good heat dissipation effect, long service life, waterproof, anti-
corrosion, cold resistance and high temperature resistance.

Tempered glass high lens
Exquisite aluminum frame tempered glass laminate for durability.
Optical grade glass transmittance is greater than 93%.

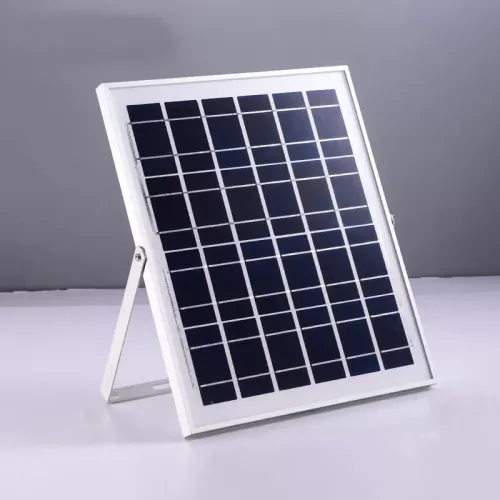

Polycrystalline solar panel
High-conversion solar panels can be powered continuously for long periods of time

Die-cast aluminum lamp body
Effectively resistant to UV rays and prolongs life
Maintenance-free lithium battery
High-capacity 10000ah rechargeable lithium battery for up to 12 hours









Applications
solar led outdoor lights used in Highway, courtyard, outdoor, Main road, factory, school, city square, garden etc.



Installation



Packaging

Standard export packaging or customized according to customer requirements
