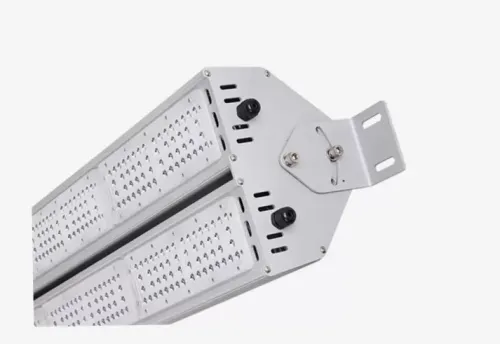

Hanging 140Lm / W IP65 Waterproof Industrial LED Linear High Bay Lights 200W With 5 Years
Warranty
Features
The led linear high bay light is the smart choice for energy saving linear industrial and commercial lighting module,Energy efficient and long lasting,the fixture consumes 80 percent less energy than readitional metral halide luminaires, and combines with motion sensors for maximum energy cost savings.
1. Ultra-thin design conception
2. Energy saving, saving 80% than the traditional lights at the same brightness.
3. Long life span, more than 50000 hours.
4. Inner high efficiency (95%) heat protection system, with the latest high efficiency constant currency driver, making the products can work under unstable voltage.
5. Instant start, no flicking, no humming.
6. Professional circuit design, each LED can work separately, thus it can avoid the influence caused by a broken single LED.
7. Anti-electric wave, no RF interference.
8. No such hazard as mercury or lead enters the environment
Specification
| Brand | MINSENS |
| Key Words | LED industrial Linear High Bay Light |
| Power | 200W |
| Driver Supply | Meanwell driver or CE certified power supply |
| Voltage | AC90~277V |
| PF | >0.95 |
| Lumen(LM) | 22000lm |
| CRI | >80Ra |
| CCT | 2700k~6500k |
| LED type | 3030 chips or Epistar |
| IP rate | IP65 |
| Beam angle | 60° , 90°, 120° |
| Working Temperature | -20℃~+55℃ |
| Unit Size | 1200*150*67mm |
| Weight | 6.64 kgs |
Details
1. 1200*150*67mm,200W, 22000LMChip and Meanwell Driver,WW PW WW
2. Driven by constant current power supply with input AC100V~277V in Meanwell brand and AC180-520V is available
3. Ultra-thin design conception ,energy saving 80% ,high efficiency heat protection system
4. Motion sensor ones are avialable;Dimmable and non-dimmable available too
5. 3 kinds of length (2ft 3ft 4ft) available according to differnet wattage
6. Flat and dome-shaped cover available for choice
7. Certificate: ETL,DLC,CE,ROHS,FCC
8. Warranty: 5 years
Applications
Underground parking lot,supermarket,stadium,warehouse
Installation
1. To fix the sleeve nuts to ceiling by stainless steel screw;
2. Hanging Linear LED High Bay lights ready with stainless steel rope and sleeve screw;
3. Sleeve nuts and sleeve screw tightened;
4. The installation is complete.
Packaging
Standard export packaging or customized according to customer requirements
