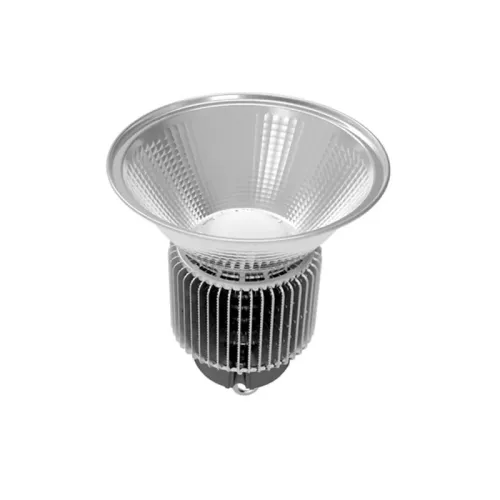

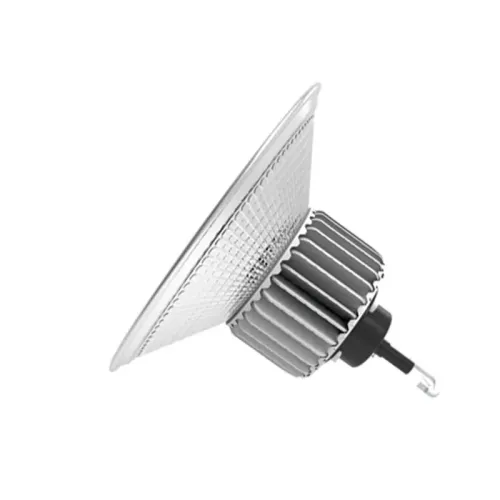

High Lumen Chip High Bay Light Warehouse 200w LED Industry Light
1. Excellent explosion-proof performance, can be used safely in all flammable and explosive place.
2. Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.
3. Power supply key components adopt world brand, optimize the structure of heat dissipation, can guarantee the life of lamps.
Featurs
high power led high bay lights
1 Excellent imported LEDs is used to guarantee high lumen maintain rate, no-flicker trait and low light decay.
2 All aluminum housing for the heat dissipating, greatly extending the life span of lighting source..
3 High efficiency constant current driver overcomes lighting instability caused by ballast in traditional lamps.
4 Protection rate can reach IP65 with sealed tempered glass cover,Free of dust and water, suitable for outdoor.Processed by painting treatment and anodic oxidation, solid and corrosion resisting.
Specification
led high bay lights 200w
| Module | MS-GKH-005 200W | |||
| Item | 200w led high bay | |||
| LED Brand | 3030 chip | |||
| LED Quantity: | 256pcs | |||
| LED Driver | CN/Meanwell | |||
| LED Color | Warm white/Pure white/Cool white | |||
| Input Voltage: | AC85-265V | |||
| Frequency Range | 50-60Hz | |||
| Power Consumption: | 200w | |||
| Optional Power: | 80w/100w/150w/180w/200w/300w | |||
| Initial Lumen: | 25000lm | |||
| Power Factor | >90% | |||
| Lamp Efficiency | >85% | |||
| Color Temperature: | 3000-6500k all available | |||
| Beam Angle: | 60°/120° optional | |||
| Color Rendring Index: | Ra≥75 | |||
| Lifespan: | 50000hrs | |||
| Warranty period: | 3-5 years | |||
| Optional led chip brand | Epistar | |||
| Protection Rating: | IP54 | |||
| Working Temperature: | -40°C ~ 50°C | |||
| Storage Temperature | -20°C ~ 65°C | |||
| Dimension: | Φ500×H500(mm) | |||
| Housing Color | Silver White | |||
| Surface Finished | Aluminum | |||
| Certification | CE,RoHS | |||
Details
industrial high bay led light fixtures
1.High brightness:100-130lm/w with 100w 150w and 200w led high bay light, PF>0.95.
2.Better cooling construction:Taiwan Double ball bearing fans inside.
3.High PF WATERPROOF power supply inside the high bay lamp.
4.Good heat dissipation:0.086mm pure Aluminum Oxidation.
5.Long lifespan for the shell.
Application
led high bay factory lights Apply for:
Garden Lighting
Advertising board lighting
Basketball Court
Stadium
Warehouse
Factory
Bridge decorative light
Building outside lighting,etc
Installation Process
industrial high bay led lighting fixtures
Instruction for use
1,Operating voltage:AC85-265v,50HZ/60HZ.Please don't work beyond the operating range and frequency range;
2,LED high bay equips with an aluminum reflector ,Please be careful to handle and store,no stacking!
Instruction for installation
1.Tighten the Ring,the ring is M20 .
2.Put the rings into the hook,and keep it stable.
3.Operating temperature is -20 °C ~ +60 ° C,storing temperature is -30 ° C - +60 ° C
4. Wiring and wiring place should be closed well to prevent leakage during installation;
5. Some corresponding water proof and leakage measures should be taken when external power cable is connected.
6.Any fire regulations can not be violated while using
7.The diagram for installation is as below:
Package
1.Normal Packing with canton(export packing), goods can be packed under the customer's requirement.
2.If it is fragile, we will provide wooden case to protect them, if ship by sea, shipping trays can be offered for customers.
1 Set = 2 Boxes (Lamp Base + Reflector). We will pack the reflector by wooden box outside to prevent damage and deformation in the transportation.
