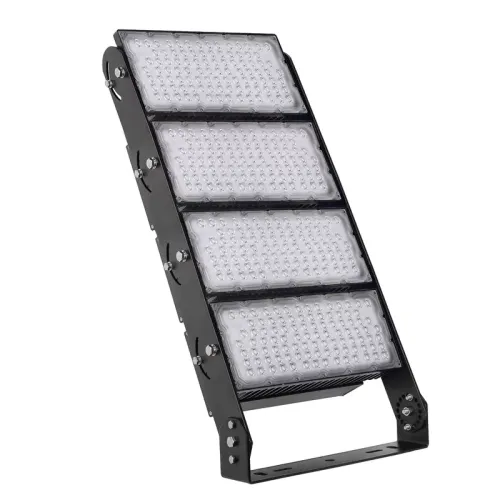

High Mast Projector Lighting Replace 2000W HID HPS gymnasium led flood light IP67 1000w 160lm/w
LED Chip: 150lm/w LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply: LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
led outdoor stadium lighting for gymnasium
|Product model||We can do color||5050Lamp bead||Lens Angle||Net weight (KG)||Carton size (MM)|
|250W||Black/silver||98pcs||Lens 10, 25, 45, 60 degrees||10.9 kg||440*495*230|
|500W||Black/silver||196pcs||Lens 10, 25, 45, 60 degrees||15.9 kg||620*495*230|
|750W||Black/silver||294pcs||Lens 10, 25, 45, 60 degrees||20.9||800*495*230|
|1000W||Black/silver||392pcs||Lens 10, 25, 45, 60 degrees||25 .9kg||980*495*230|
|1500W||Black/silver||588pcs||Lens 10, 25, 45, 60 degrees||40 kg||940*900*230|
|2000W||Black/silver||784pcs||Lens 10, 25, 45, 60 degrees||55 KG||940*900*230|
LED Stadium Sports lights
Perfect Light Distribution Solution
LED Stadium Flood Light lens is our own independent research and development of open mold products, has made major technological breakthroughs in the process.
Lens achieved high-quality goals such as low light attenuation, high illumination, and good heat dissipation. > 160 LM / W, 10,000 hours light decay <8%.
Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity. Anti-glare and uniform light level to avoid any visual discomfort.
Die Cast Aluminum Alloy

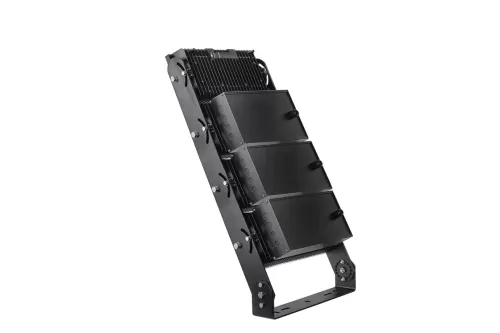

aluminum alloy die-casting with high thermal conductivity. The wavy shape of the heat dissipation increases the heat dissipation area and forms good convection with the surrounding air. The operating temperature does not exceed 65 degrees, thereby ensuring the stability and long life of the lamp ;
Excellent self-cleaning function, the design of the curved heat sink and drainage groove is conducive to the sliding of dust, rain and snow, and the dust on the surface is more easily carried away by rain.
Absolutely unique mold,make your lighting special and fantastic.
Photocell Sensor Available
The twist-lock type photocontrols are manufactured as per UL773 and ANSI C136.10 standards. They are mainly used in controlling
the outdoor lighting fixtures with mating receptalces automatically. If the photo control is temporarily not to be used, the
shorting cap can be used instead.
Earlier turning-off in dawn for saving more energy, easy-to-maintain Twist-lock (ANSI C136.10) & Fail-On mode
IP65 protection while installed (5-20 seconds time-delay switching-off for luminaires protection)
Module Design 400W 480W High Mast Flood Light Led Outdoor Stadium Lighting
Leyond High Mast Lights Project in Spain, Philipine, Argentina, etc...
1 unit per Neutral packing box
Standard export packaging
